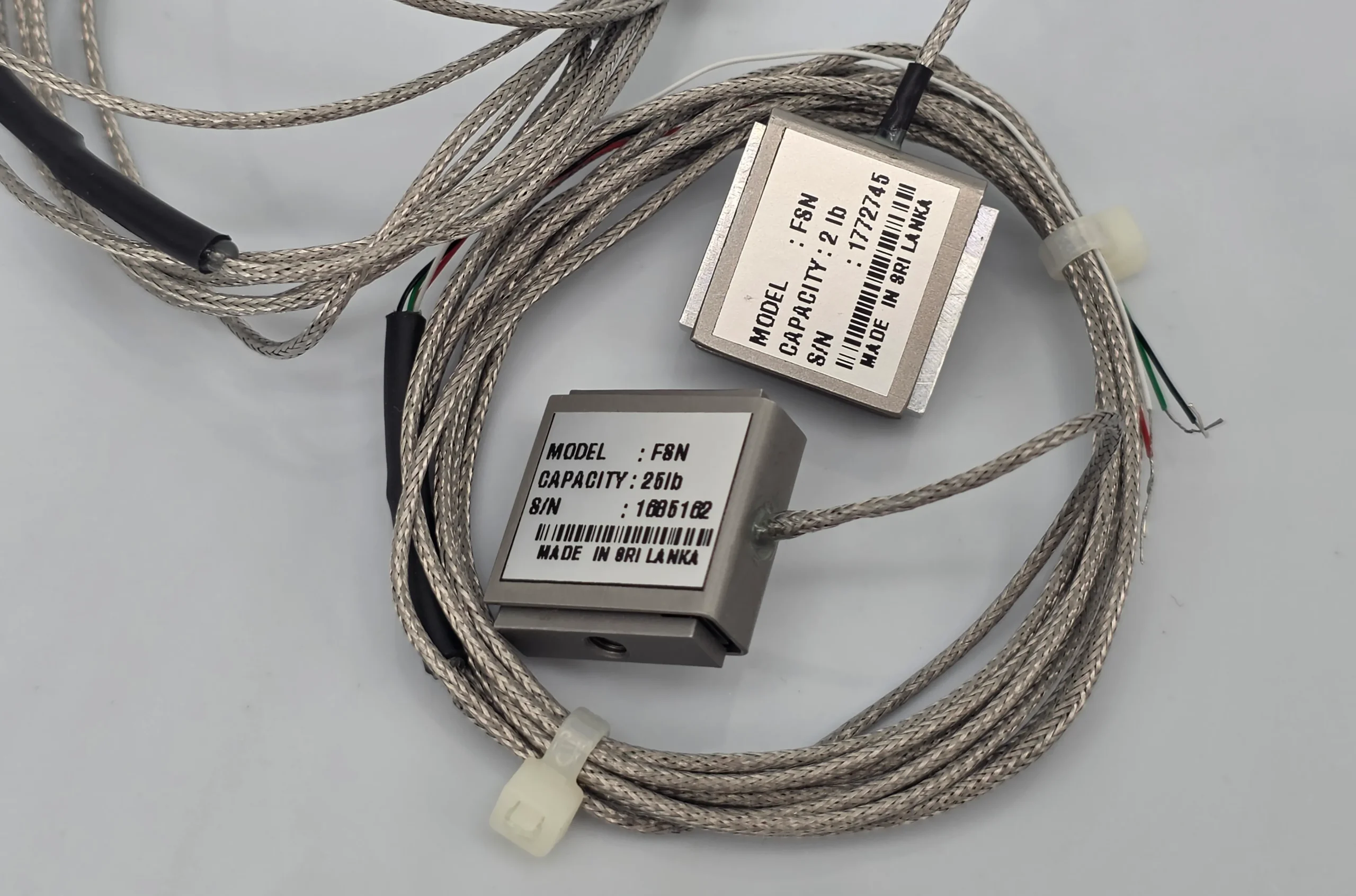

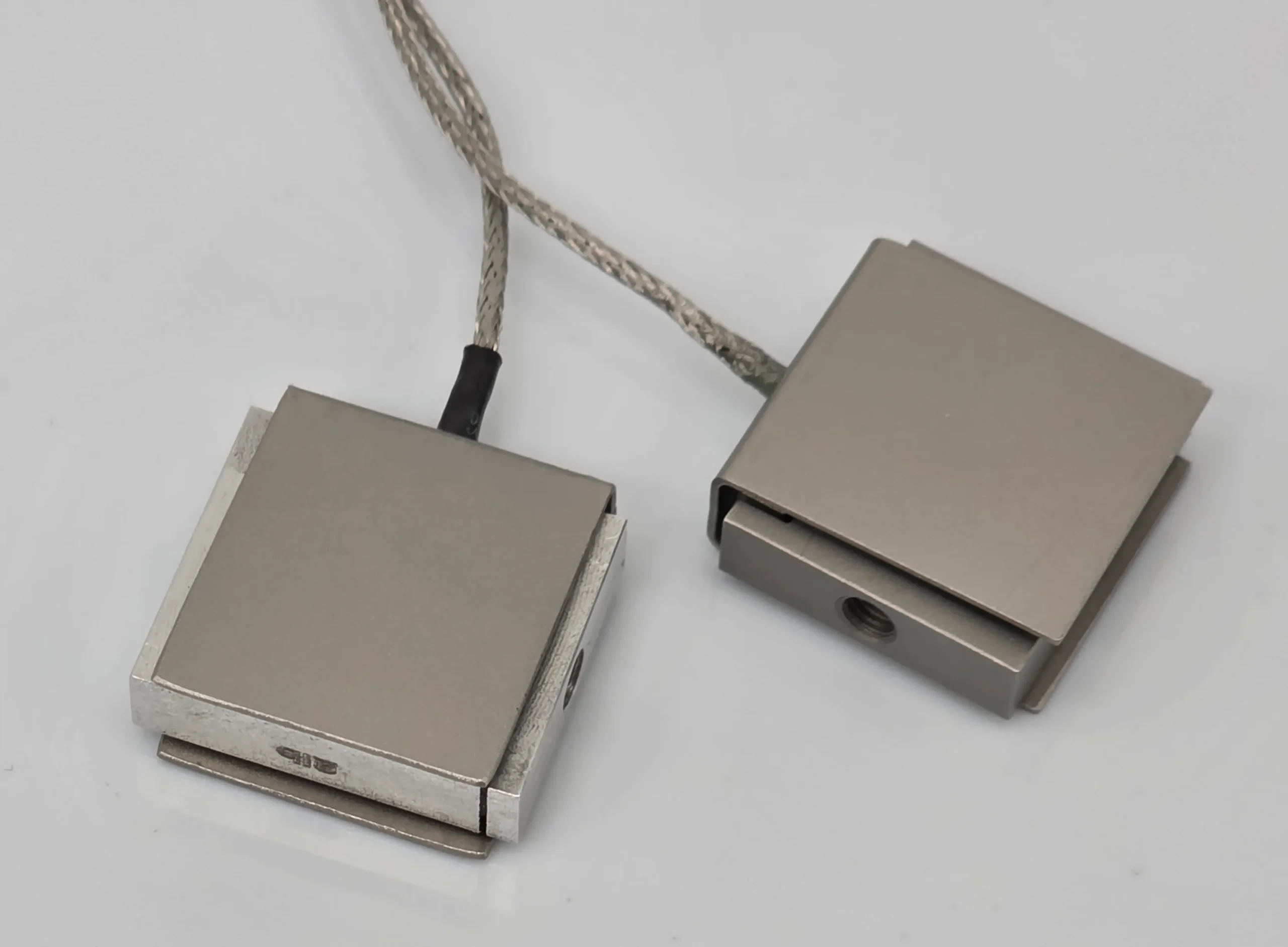

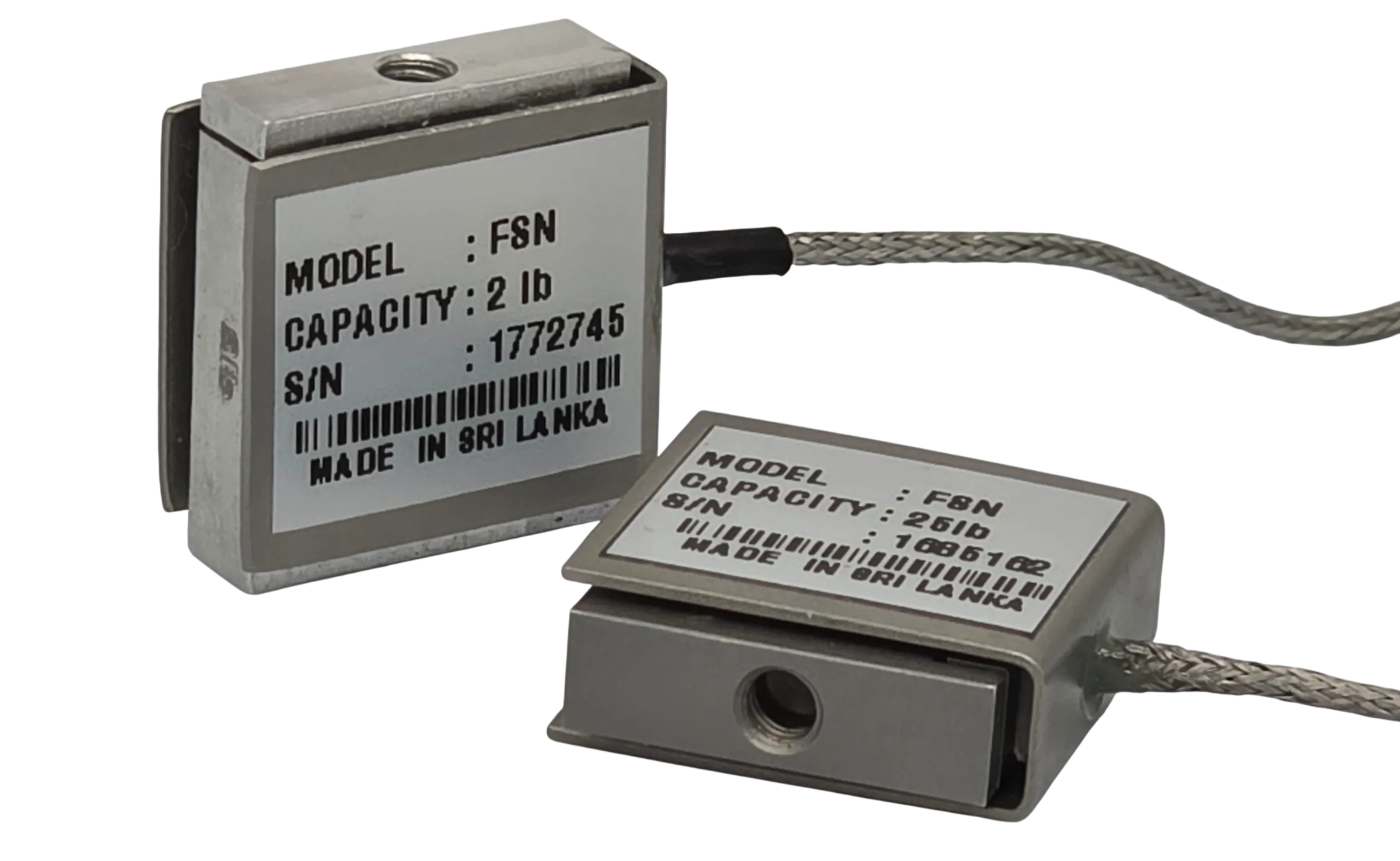

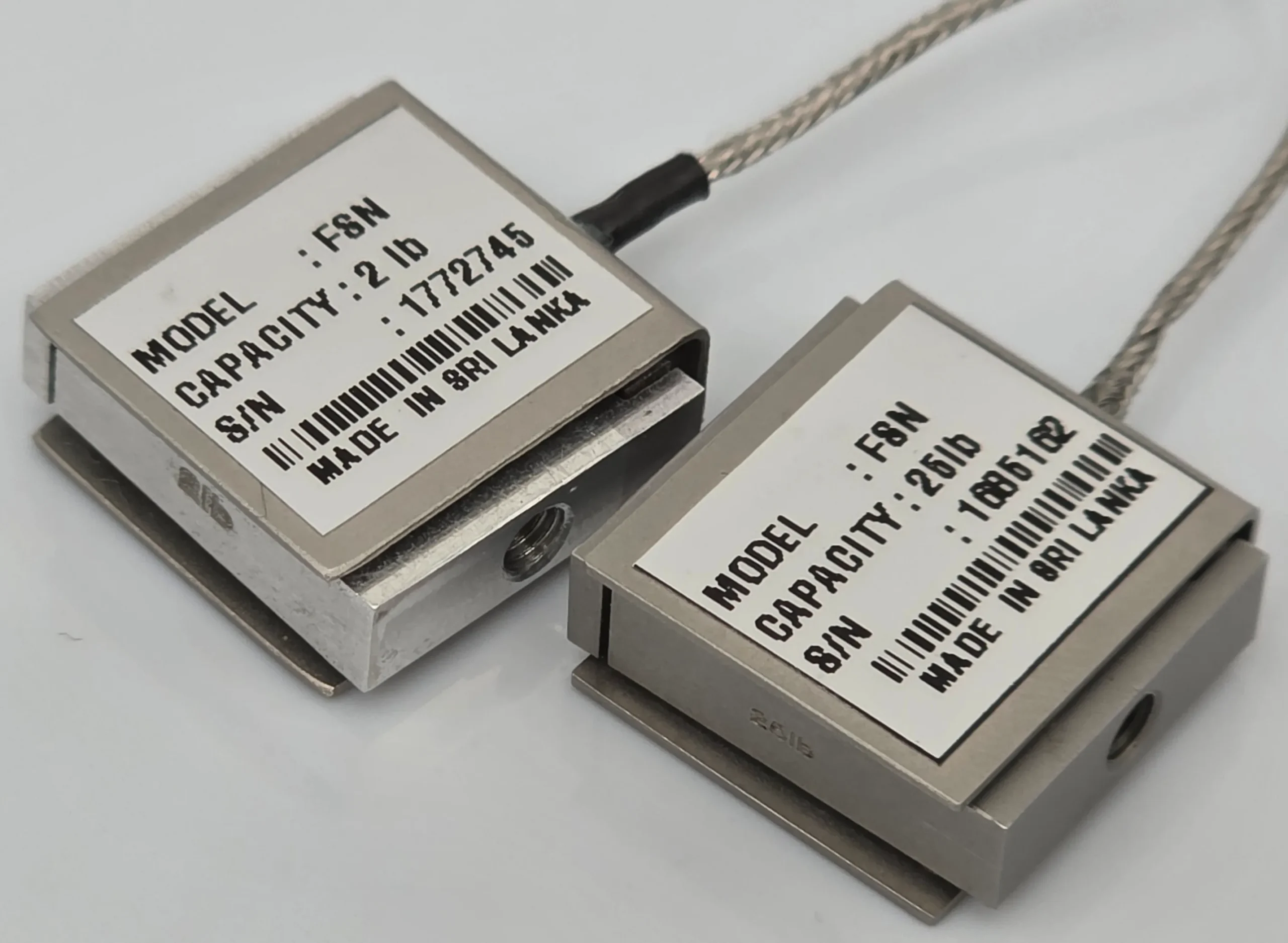

Miniature FSN 3020 S-beam Load Cell
IMPERIAL
2 – 100 lb
METRIC
907 g – 45.3 kg
When your project demands highly accurate force measurement, but physical space is strictly limited, the miniature FSN 3020 S-beam load cell delivers exceptional reliability. Engineered specifically for confined environments, this compact force sensor provides high performance without compromising on precision.
View or download the miniature FSN 3020 S-beam load cell datasheet below for full technical specifications and wiring diagrams.
This versatile S-type load cell is designed to seamlessly handle both tension and compression applications, making it a universal solution for complex industrial setups. Unlike larger conventional models, the FSN 3020 features a lightweight, space-saving footprint while offering impressive durability. One of its standout advantages is the built-in overload protection, which safeguards the delicate internal strain gauges from sudden force spikes and mechanical damage during operation or installation
Available in multiple low capacity ranges spanning from 2lb to 100lb, this precision weighing device is perfectly suited for delicate force testing, automated assembly lines, and high-precision medical weighing systems. With its IP40 environmental rating, it performs reliably in controlled indoor environments and dry industrial facilities.
Key Features of the Miniature FSN 3020 S-Beam Load Cell
Broad capacity range: Available in capacities from 2lb to 100lb to suit various delicate measuring needs
High accuracy: Delivers reliable and repeatable force measurement data for critical testing
Environmental protection IP40: Protected against solid objects, ideal for indoor and cleanroom environments
Ultra-compact footprint: The miniature size allows for easy integration into equipment with tight clearances
Built-in overload protection: Prevents sensor damage from unexpected force surges, increasing longevity
Dual-force capability: Functions efficiently as both a tension and compression device
Ideal Industrial Applications
Thanks to its small form factor and dependable accuracy, this miniature load cell is highly integrated into various fields:
High-volume, tight-fitting OEM applications
Machine monitoring and control systems
Packaging machinery and automated sorting
Assembly machinery and robotic arm force feedback
General test and measurement laboratory setups
End-of-line test equipment for quality assurance
Medical bag weighing and precise pharmaceutical dosing
Customization Options
We understand that every industrial setup is unique. To ensure seamless integration into your existing data acquisition systems or controllers, the FSN 3020 is available with:
- Custom cable lengths tailored to your specific wiring requirements.

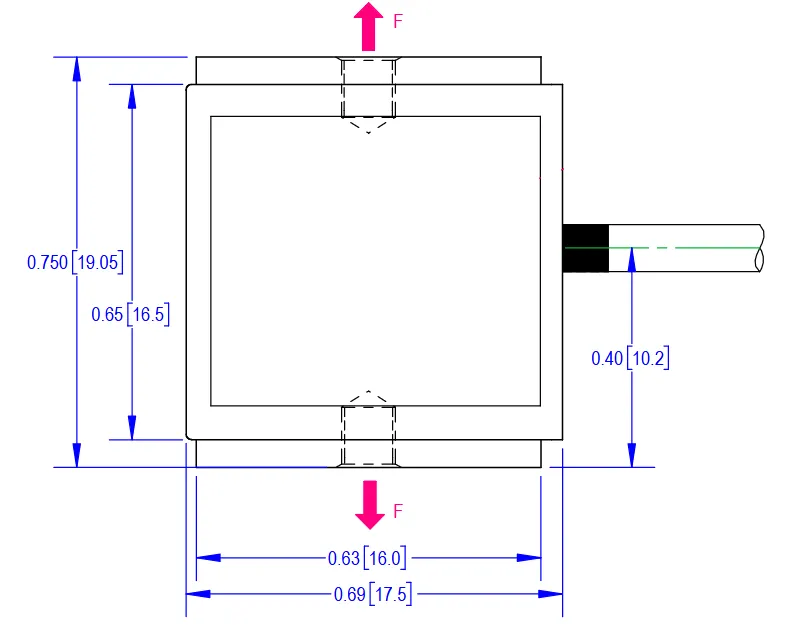

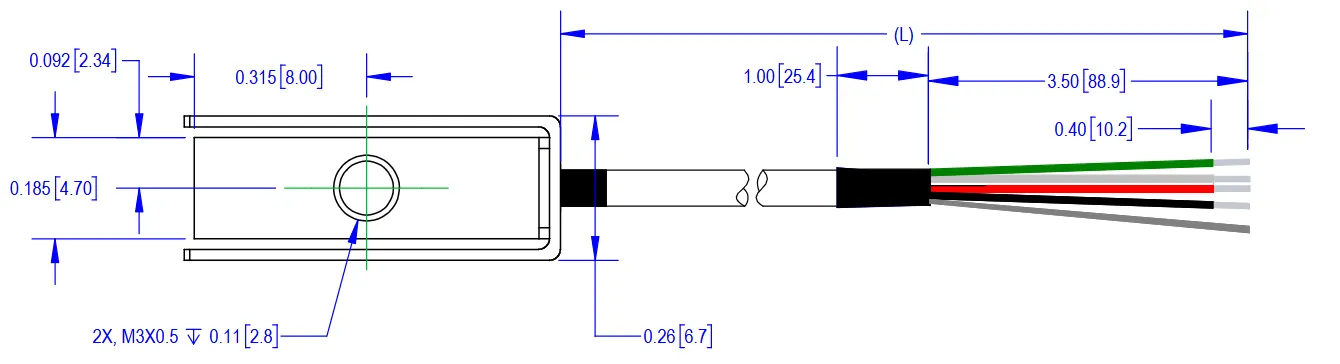

Outline Dimensions

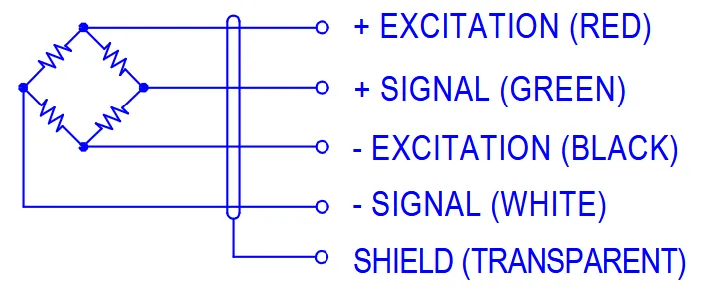

Wiring Color Code for FSN 3020
Cable: 34 AWG, 4 Conductor outer braided shielded cable
Specifications
| Model | FSN | ||
|---|---|---|---|
| Capacities | kg | 2, 5, 10, 25, 50, 100 | |
| Full Scale Output (FS) | mV/V | 2.0±20% | |
| Non-Linearity (2 lb) | %FS | ≤±0.3 | |
| Non-Linearity (5 – 100 lb) | %FS | ≤±0.1 | |
| Hysteresis (2 lb) | %FS | ≤±0.3 | |
| Hysteresis (5 – 100 lb) | %FS | ≤±0.1 | |
| Non-Repeatability | %FS | ≤±0.05 | |
| Zero Balance | %FS | ≤±5 | |
| Temperature Range | |||
| Compensated | °C | -10… +40 | |
| Operating | °C | -20… +65 | |
| Terminal Resistance | |||
| Input | Ω | 350±5 | |
| Output | Ω | 350±5 | |
| Excitation Voltage | VDC | 5 … 15 | |
| Insulation Resistance @50VDC | MΩ | ≥5000 | |
| Safe Overload Limit | %FS | 150 | |
| Ultimate Load | %FS | 200 | |
| Cable Type | 34 AWG 4 conductor outer braided shielded cable | ||
| Cable Length (L) | ft | 5 | |
| Seal Type | IP40 | ||
| Element Material | Aluminum or Stainless Steel | ||
FSN 3020 Ordering Part Numbers
| Capacity ( lb) | G4 Part Number | Element Material |
|---|---|---|
| 2 | 3020-002-00 | 2024-T351 Aluminum |
| 5 | 3020-003-00 | |
| 10 | 3020-004-00 | |
| 25 | 3021-000-00 | Stainless Steel |
| 50 | 3021-001-00 | |
| 100 | 3021-002-00 |
