Model 3i – Basic Force / Torque Indicator

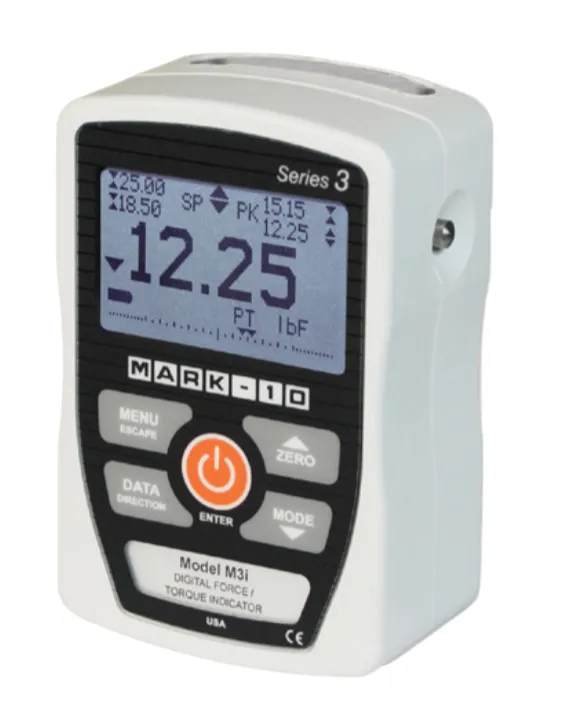

The 3i digital force/torque indicator is designed to work with a wide range of remote force and torque sensors. With exclusive Plug & Test (TM) technology, all calibration and configuration data is saved within the sensor’s smart connector, not the indicator, allowing for true interchangeability. In addition, all sensors are fully compatible with the advanced 5i force/torque indicator.
The 3i shares its menu structure and most specifications with Series 3 digital force gauges. The sampling rate is 2,000 Hz, producing accurate results under a wide range of test conditions. A backlit graphic LCD displays large characters, and a menu is available to access the gauges’ features and configurable parameters. The display also features an analog load bar for graphical representation of applied load, as well as set point indicators for pass-fail testing. USB output is provided for data collection purposes.
The gauges include MESUR™ Lite data acquisition software. MESUR™ Lite tabulates continuous or single point data. One-click export to Excel allows for further data manipulation.
Below you can view or download the datasheet of Model 3i – Basic Force/Torque Indicator
Features
- Interchangeable force and torque sensors through plug & test technology
- High speed 2,000Hz sampling rate
- USB data output
- Ultra compact size
- Large backlit graphic display
- Programmable set points with pass/fail indicators
- Live load bar graph with set point markers
- Peak readings and set point always displayed
- Configurable audio alarms and key tones
- 4 selectable units of measurement
- Mesur lite data collection software included
Applications
- Automotive Industry
- Manufacturing
- Assembly
- Quality control
Plug and test technology

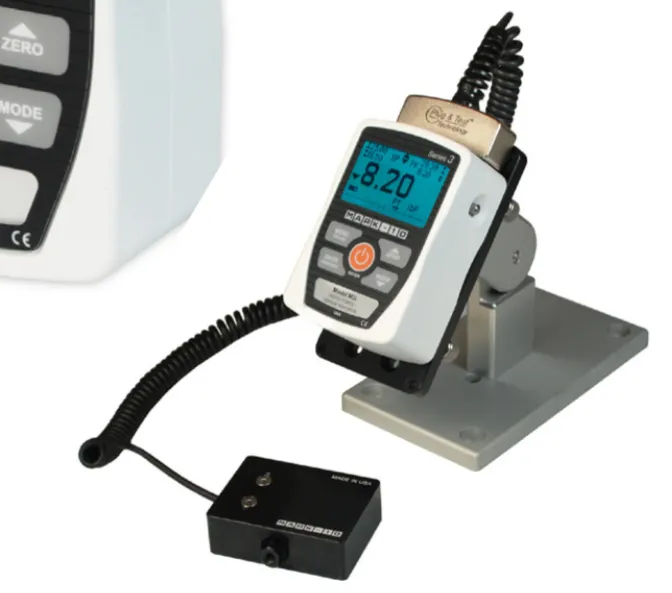

The Plug & Test™ connector locks into the receptacle in the indicator when fully inserted. Dual buttons on the indicator housing release the connector for easy removal. Gold plated spring contacts ensure long lasting and reliable connection.

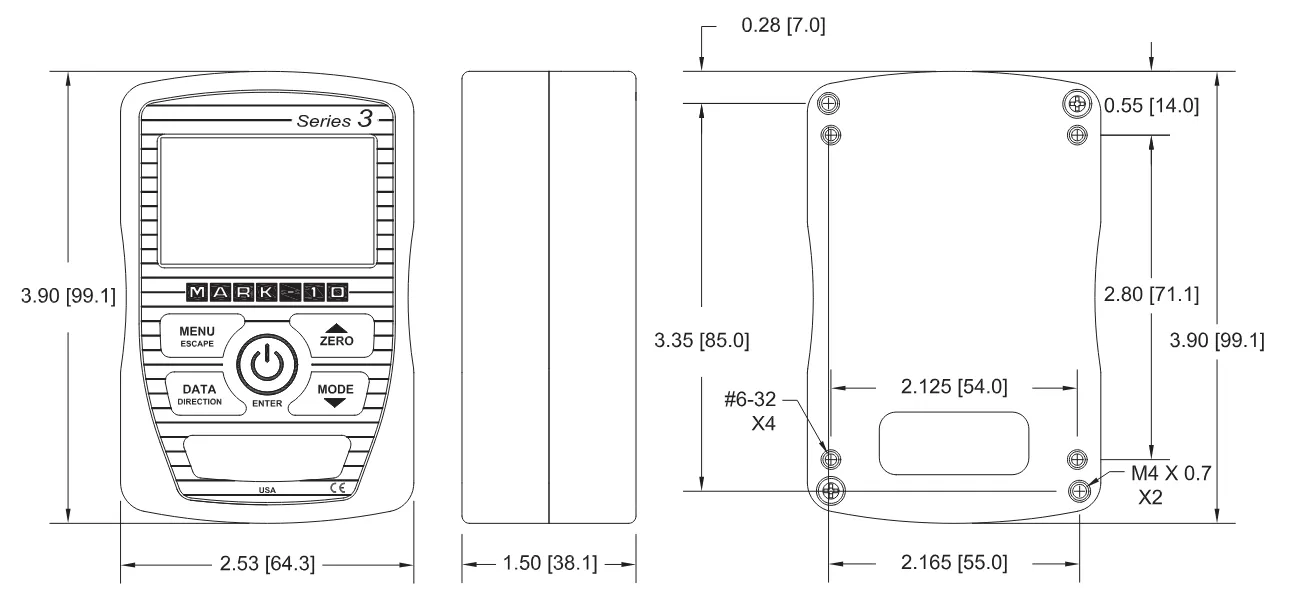

Outline Dimensions
Specifications
| Accuracy | ±0.2% of full scale + sensor |
|---|---|
| Sampling rate | 2,000 Hz, pulse response of 1/1,000 sec. minimum |
| Power | AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low. |
| Battery life | Backlight on/off: up to 7 / 24 hours of continuous use |
| USB outputs | By pressing DATA key only. Configurable up to 115,200 baud. |
| Configurable settings | Digital filters, USB output, automatic shutoff, default settings, key tones, audio alarms, calibration |
| Weight | 0.7 lb [0.3 kg] |
| Included items | Carrying case, universal voltage AC adapter, battery, quick-start guide, USB cable, resource CD (USB driver, MESUR™ Lite software, MESUR™gauge DEMO software, and user’s guide), and certificate of conformance. |
| Warranty | 3 years (see individual statement for further details) |

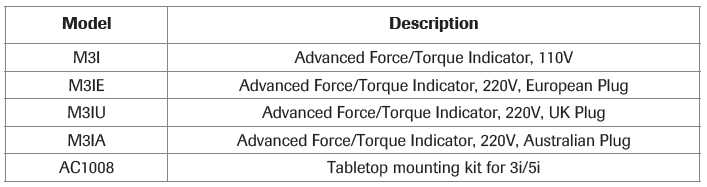

Part Numbers
| Model | Description |
|---|---|
| M3I | Advanced Force/Torque Indicator, 110V |
| M3IE | Advanced Force/Torque Indicator, 220V, European Plug |
| M3IU | Advanced Force/Torque Indicator, 220V, UK Plug |
| M3IA | Advanced Force/Torque Indicator, 220V, Australian Plug |
| AC1008 | Tabletop mounting kit for 3i/5i |
