Model 5i – Advanced Force/Torque Indicator
If you are looking for a highly versatile and precise force measurement display, the Model 5i advanced force indicator is engineered to meet the most demanding testing requirements. Designed to seamlessly integrate with a wide range of remote force and torque sensors, this digital force / torque indicator is the perfect solution for professionals who need accuracy, speed, and reliability in their testing environments.
Revolutionary Plug & Test™ Technology
One of the standout advantages of the Model 5i is its exclusive Plug & Test™ technology. Unlike traditional systems, all calibration and configuration data are saved directly within the sensor’s smart connector, rather than the indicator itself. This allows for true sensor interchangeability. You can swap different load cells or torque sensors on the fly without needing to recalibrate the device. Additionally, all sensors used with this unit are fully backward-compatible with the more basic 3i force / torque indicator, giving you maximum flexibility across your equipment fleet.
High-Speed Performance and Accurate Force Measurement
When it comes to capturing rapid physical changes, speed is critical. The 5i features a blazing fast 7,000 Hz sampling rate, ensuring that it produces incredibly accurate results even for the most sudden, quick-action tests like break testing or switch activation.
To help users visualize the applied force or torque, the crisp display includes an analog load bar graph. Furthermore, peak readings and programmable set points always remain visible on the screen, making it incredibly user-friendly.
Advanced Data Acquisition and Connectivity
Data management is a breeze with the 5i advanced force indicator. It features an on-board data memory for up to 1,000 readings, complete with built-in statistical calculations. When it’s time to analyze your findings, data can be effortlessly transferred to a PC or external data collectors via multiple outputs, including USB, RS-232, Mitutoyo (Digimatic), or analog outputs.
Integrated set points with visual indicators make this device ideal for pass-fail testing. These set points can even be used for triggering external devices on your production line, such as an alarm, a relay, or an automated motorized test stand.
Included MESUR™ Lite Software
Every Model 5i includes MESUR™ Lite data acquisition software at no extra cost. This software tabulates continuous or single-point data seamlessly. Data saved in the indicator’s memory can be downloaded in bulk, and a convenient one-click export to Excel allows for further data manipulation and detailed quality control reporting.
For highly specific testing protocols, the indicator’s averaging mode easily records the average load over a specified time period, while the external trigger mode ensures that switch contact testing is both simple and highly accurate.
View or download the Model 5i Advanced Force Indicator datasheet below for full technical specifications and wiring diagrams.
Key Features of the 5i Digital Indicator
Interchangeable force and torque sensors utilizing exclusive Plug & Test™ technology
Sensor password protection to prevent unauthorized sensor use or tampering
Industry-leading, high-speed 7,000 Hz sampling rate for precise data capture
Versatile connectivity with USB, RS-232, MITUTOYO, and analog output options
1,000-point data memory with built-in statistics and output capabilities
Live analog load bar graph complete with set point markers
Programmable set points with visual indicators and external outputs for pass-fail testing
Continuous display of peak readings and set points for easy monitoring
Averaging mode – automatically calculates average readings over time
External trigger mode – perfect for switch contact testing or remotely stopping the display update
Configurable audio alarms and key tones for distinct user feedback
Password protection for individual keys and device calibration settings
Common Applications
The versatility of the 5i advanced force indicator makes it a crucial piece of testing equipment across multiple sectors:
Automotive industry (component testing, ergonomics, and switch activation)
Manufacturing (material strength testing and production line monitoring)
Assembly (fastening torque verification and joint integrity)
Quality control (batch testing, pass/fail analysis, and compliance verification)

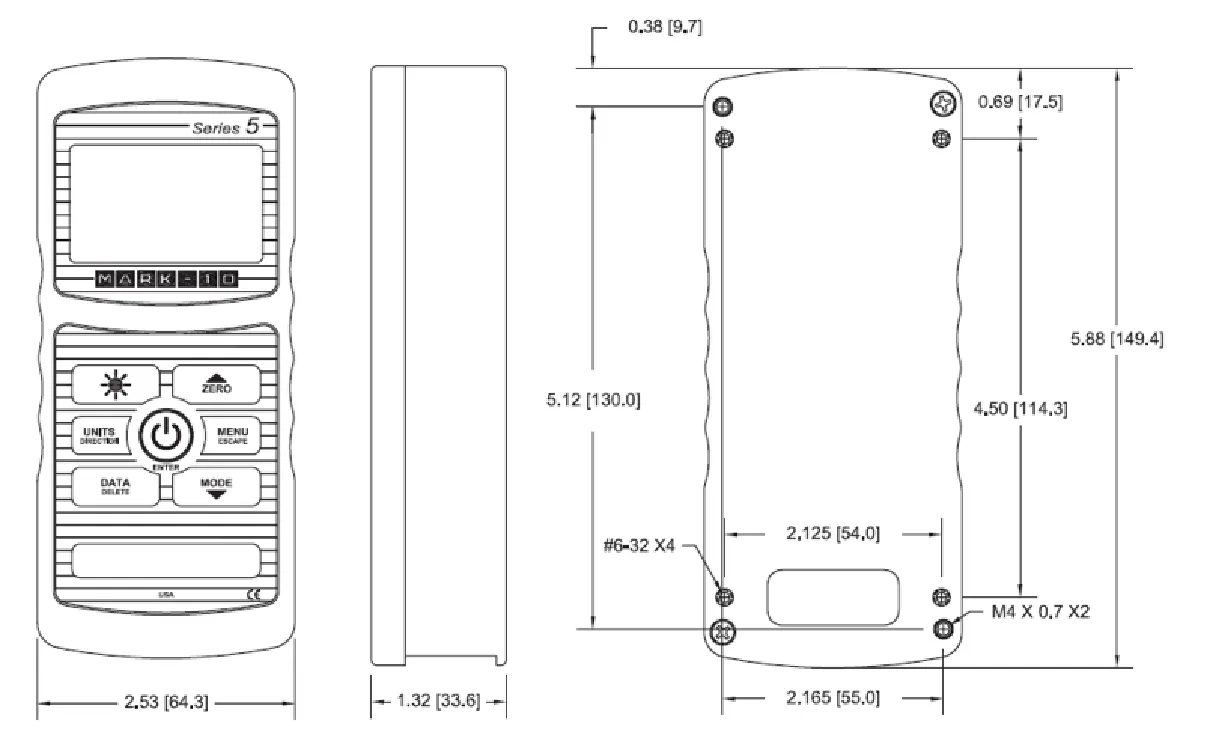

Outline Dimensions
Specifications
| Model | 5i |
|---|---|
| Accuracy | ±0.1% of full scale + sensor |
| Sampling Rate | 7000 Hz, pulse response of 1/3500 sec. minimum |
| Power | AC or rechargeable battery. Multi-step low battery indicator is displayed gauge shuts off automatically when power is too low |
| Battery Life | Backlight on/off: up to 7/24 hours of continuous use |
| Outputs | USB/RS-232 Configurable up to 115,200 baud. Includes Gauge Control Language 2 for full computer control. Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC- compatible devices. Analog: ±1 VCD, ±0.25% of full scale at capacity. General purpose: Three open drain outputs, one input. Set points: Three open drain lines. |
| Configurable settings | Digital filters, outputs, automatic output (via USB/RS232), automatic shut off, default settings, averaging modes, external trigger, passwords, key tones, audio alarms, back light, calibration |
| Weight | 0.7lb (0.33 kg) |
| Included Item | Carrying case, universal voltage AC adapter, battery, quick-start guide, USB cable, resource CD (USB driver, MESUR lite software, MESUR gauge DEMO software, and user’s guide), and certificate of conformance |
| Warranty | 3 years (see individual statement for further details) |
Part Numbers
| Model | Description |
|---|---|
| M5I | Advanced Force/Torque Indicator, 110V |
| M5IE | Advanced Force/Torque Indicator, 220V, European Plug |
| M5IU | Advanced Force/Torque Indicator, 220V, UK Plug |
| M5IA | Advanced Force/Torque Indicator, 220V, Australian Plug |
| AC1008 | Tabletop mounting kit for 3i/5i |
