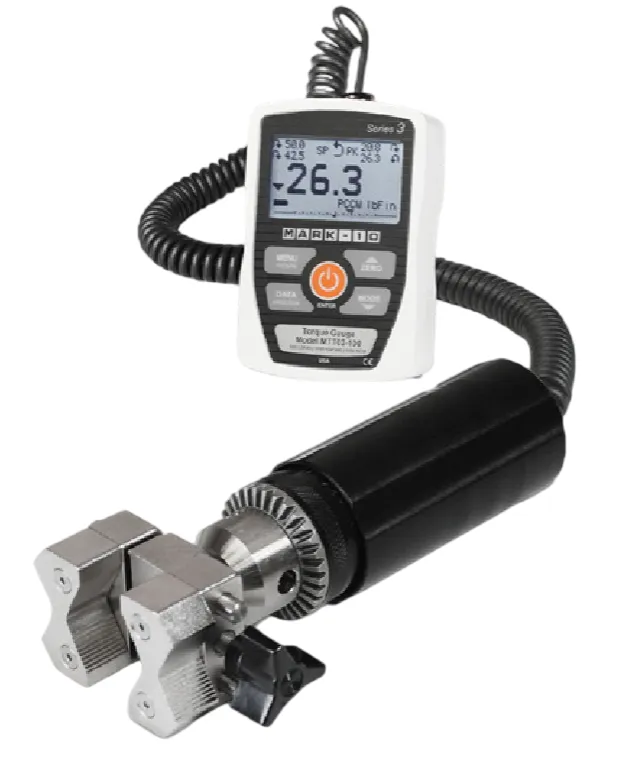

MTT03C 100 – Digital Cap Torque Gauge
MTT03C digital cap torque gauges are quick and economical solutions for basic handheld cap torque testing. These portable instrumentseliminate the need to secure closures in a fixture or more elaboratetesting . A dedicated remote torque sensor with Jacobs chuck issupplied with a universal grip for caps from 0.65 – 1.55 in (16.5 – 39.4 mm) diameter (Series TT03C gauges consist of a Series TT03 torque gauge and G1053 cap grip). MTT03C records both application andremoval torque values (clockwise and counterclockwise directions).
View or download the datasheet below for full technical specifications and wiring diagrams.
Key Features
- Universal grip accommodates broad cap size range
- Peak torque values saved and displayed
- High speed 2,000 Hz sampling rate
- USB data output
- Programmable set points with pass/fail indicators
- Live load bar graph with set point markers
- Peak CW and CCW readings always displayed
- Set point always displayed
- Configurable audio alarms and key tones
- MESUR lite data collection software included
Applications
- Automotive Industry
- Manufacturing
- Assembly
- Quality control
Outline Dimensions

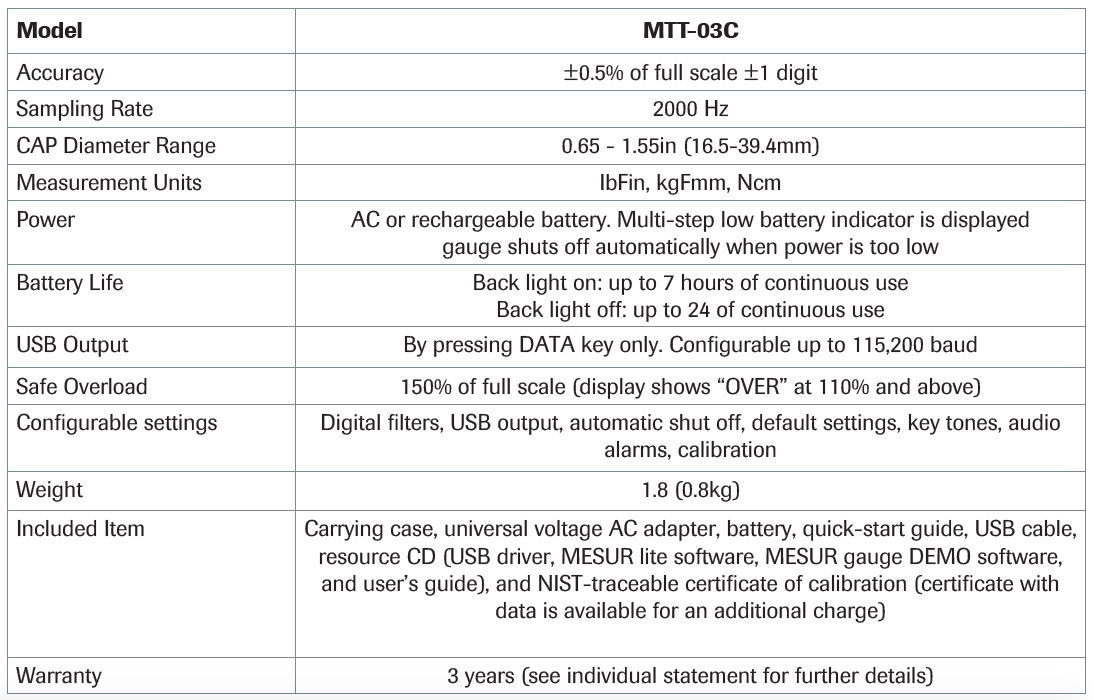

Specifications
Part Numbers
| Model | IbFin | kgFmm | NcM |
|---|---|---|---|
| MTT03C-12 | 12 x 0.01 | 140 x 0.1 | 135 x 0.1 |
| MTT03C-50 | 50 x 0.05 | 580 x 0.5 | 570 x 0.5 |
| MTT03C-100 | 100 x 0.1 | 1150 x 1 | 1150 x 1 |
| Certificate of calibration with data is available. Part no. is CERT. All models include 110V AC adapters, unless ordered as below: Add suffix ‘E’ for euro plug (220V), ‘U’ for UK plug (220V) or ‘A’ for Australian plug Example: MTT03C-12E, MTT03C-50U, MTT03C-100A | |||
