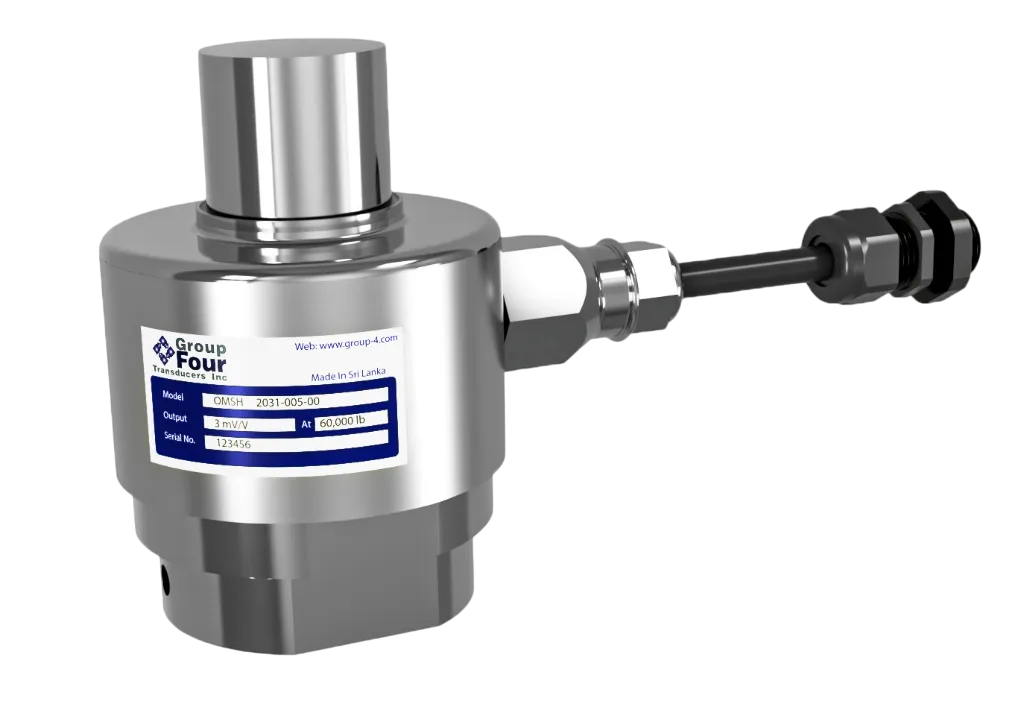

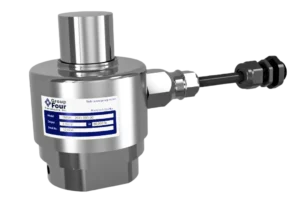

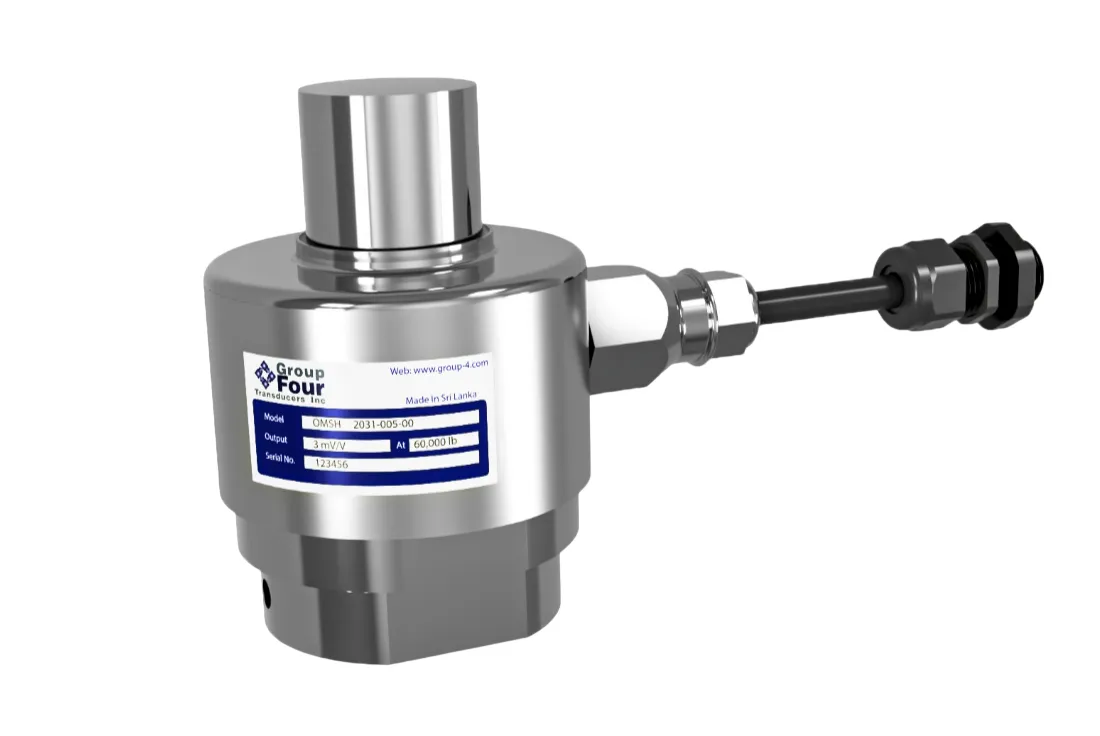

OMSH (5031) Stainless Steel Rocker Column Load Cell

Capacity: 20, 30, 40 & 50T

The OMSH is a Stainless Steel self centering rocker column compression load cell ideal for fertilizer and seed weighing systems, mixers, silos, truck scales, tank weighing applications. The hermetically sealed load cell is ideal for use in heavy wash down applications. Protection class IP69.
Below you can view or download the datasheet of OMSH 5031 Stainless Steel Rocker Column Load Cell.

Features

Capacities in tons 20,30,40 & 50T
Capacities in KLBS 30 & 60 Klbs
Stainless Steel construction
Anti-rotation ring for movement protection
Environmental Protection IP69 with hermetic sealing
5-position receptacle red connector

Applications

Mixers
Tank weighing
Truck scales
Hopper weighing
Silo weighing
Wash down applications
Hopper weighing

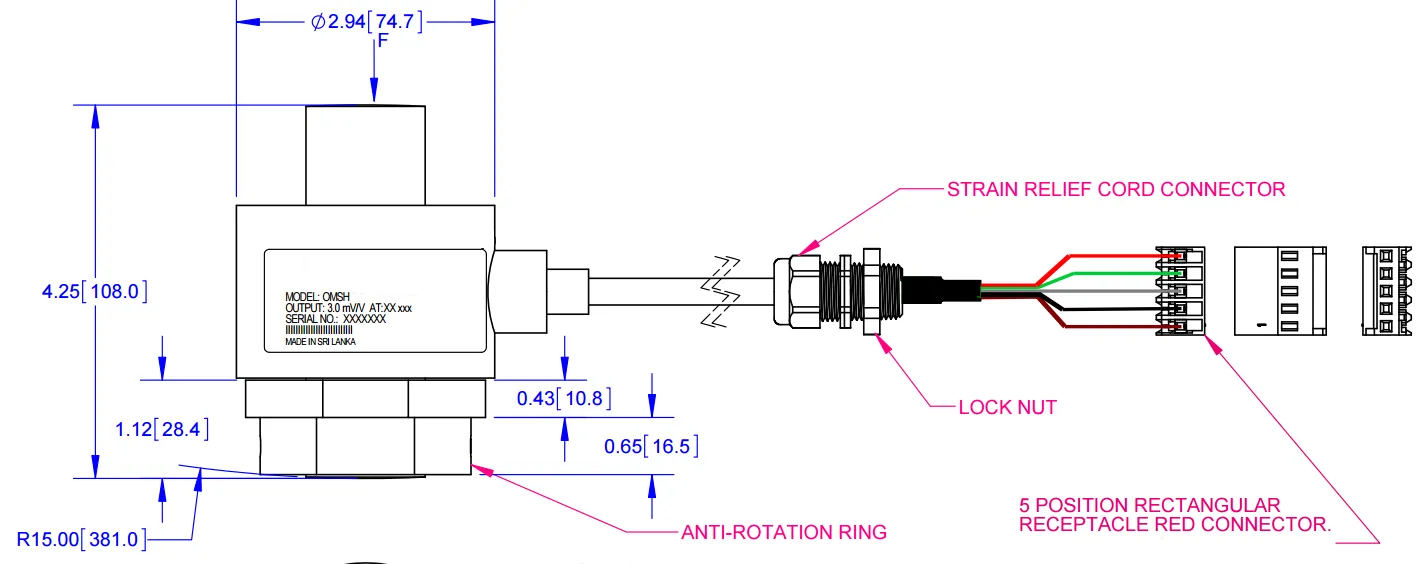

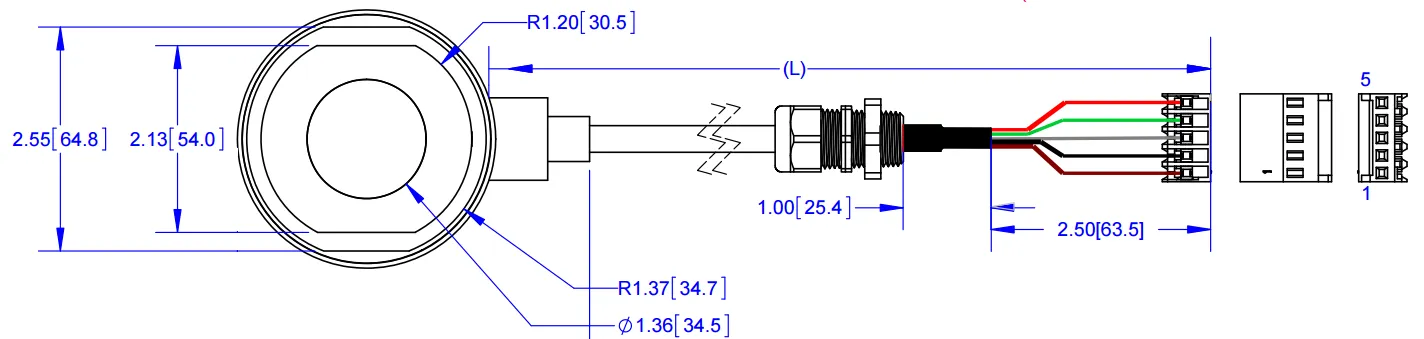

Outline Dimensions

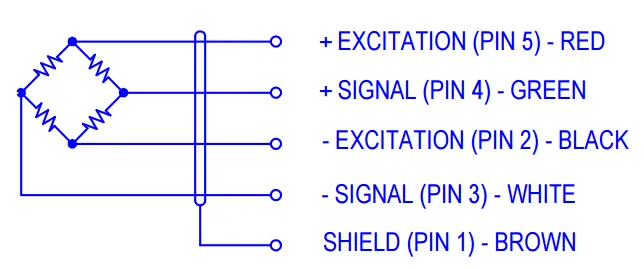

Wiring

Specifications of OMSH 5031 Stainless Steel Rocker Column Load Cell

Model		OMSH
Capacities		See Part Number table
Full scale output (FS)		mV/V	3.0±0.1%
Calibration in mV/V/Ω		%	≤±0.05
Non-linearity		%FS	≤±0.03
Hysteresis		%FS	≤±0.05
Creep recovery @ 30min		%FS	≤±0.02
Zero Balance		%FS	≤±1
Temperature Effect
	Output	%FS/10°C	≤±0.01
	Zero	%FS/10°C	≤±0.02
Temperature Range
	Compensated	°C	-10… +40
	Operating	°C	-40… +65
Temperature resistance
	Input resistance	Ω	386±50
	Output resistance	Ω	350±5
Excitation voltage		VDC	5 ~ 15
Insulation resistance @50VDC		MΩ	≥5000
Safe overload limit		%FS	130
Ultimate Load		%FS	200
Cable		22 AWG 4 Conductor AL Foil Shielded PVC Black cable with drain wire
Cable length (L)		ft	30
Element material		Stainless Steel
Seal type		IP69

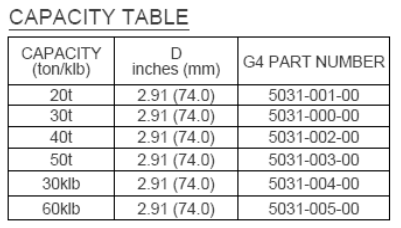

Part Numbers

Capacity (ton / klb)	Part Number
20t	5031-001-00
30t	5031-000-00
40t	5031-002-00
50t	5031-003-00
30klb	5031-004-00
60klb	5031-005-00
