PTT 9900 Precision Pressure Transducer
Capacity: 5 IN/WC to 40,000 Psi
PTT 9900 is a high precision pressure transducer offering accuracies of 0.05% full scale with a total error band from -40 C to 85C. This sensor is ideal for application requiring very high precision and reliability. Applications include medical, industrial and aerospace.
Features
- Highest performance transducer over temperature. Zero thermal error/drift
- Proprietary fused bond sensor
- Sensor wetted material machined from stainless steel bar stock (no welds)
- RFI/EMI Protection
- Digital Correction for non-linearity and inaccuracies within the sensing element
- Output Options: 4-20 mA, 0-5 V, 0-10 V (custom on request)
- Suitable for high shock and vibration applications
TECHNICAL DATA
- Units are individually calibrated from -40°C to 85°C for pressures ranging from 0-5” WC to 40,000 PSI
- 0.05% & 0.02% BFSL (STANDARD) – Contact Factory for other options
- 16 Point Calibration with Certificate (STANDARD)
- Unparalleled thermal stability from -40°C to 100°C
- Transducer maintains stated accuracy throughout entire temperature compensated range
- Duplicate any customer process and electrical connector for transparent replacement
technical details of PTT 9900 pressure transducer

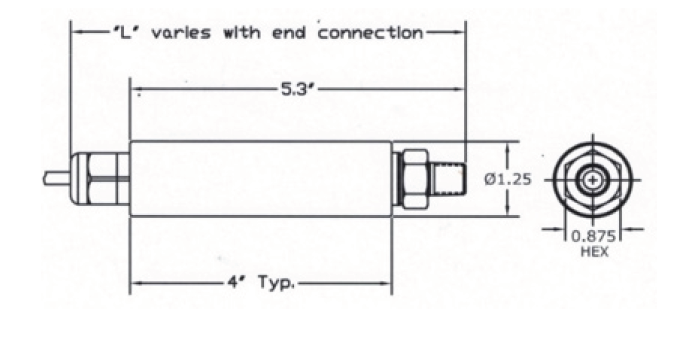

Outline Dimensions
