RB14 (1032) Stainless Steel Single Ended Shear Beam IP69
IMPERIAL
0.5 – 10 klb
METRIC
227 – 4,536 kg

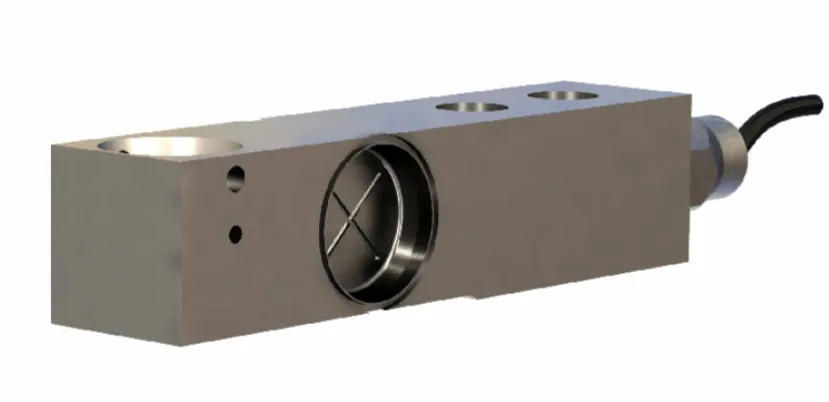

The RB14 is a Stainless Steel Single Ended Shear Beam. Ideal for use in Floor Scales and Tank Weighing Systems.
View or download the datasheet below for full technical specifications and wiring diagrams.
Key Features
- Capacity Range: 0.5 to 10 klb
- Blind Hole Load Introduction
- Environmental Protection IP69
- A Special Low Profile Foot is Available
Ideal Applications
- Platform Scales, Tank Weighing Systems

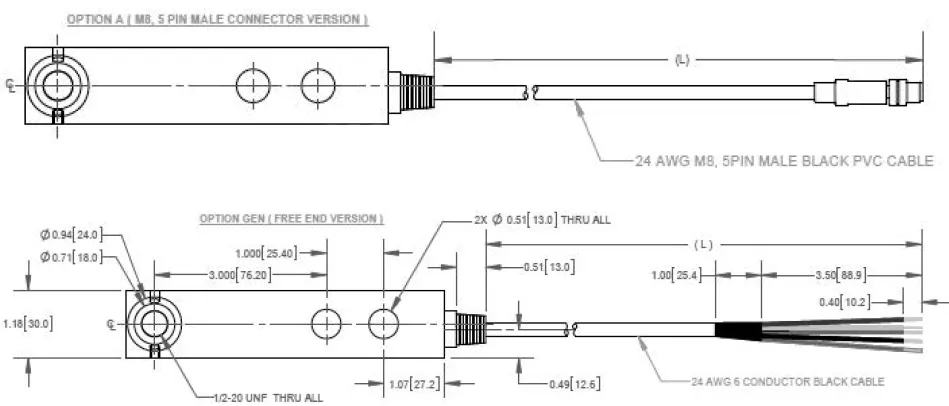

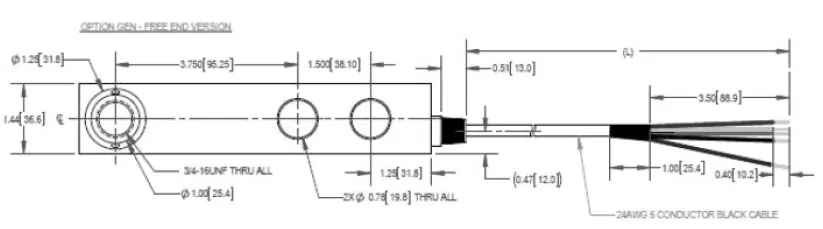

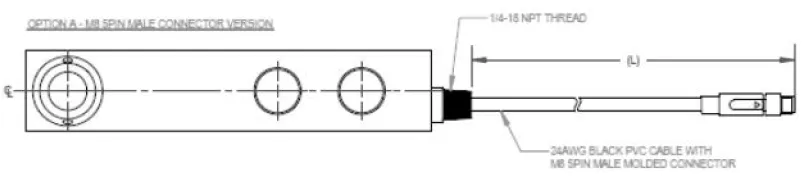

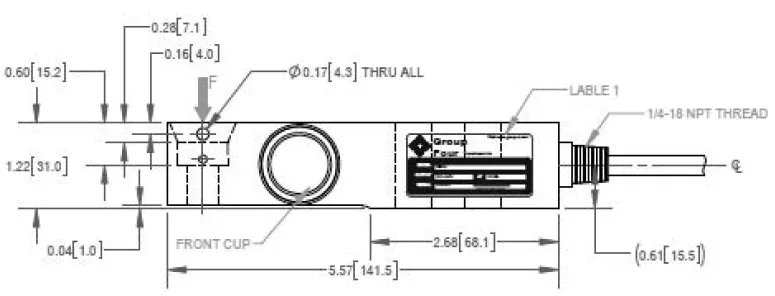

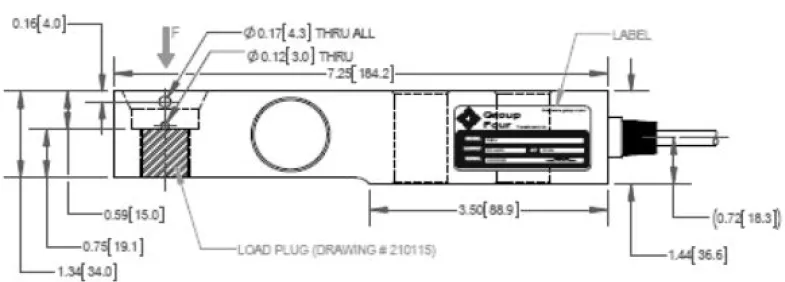

Outline Dimensions
Wiring

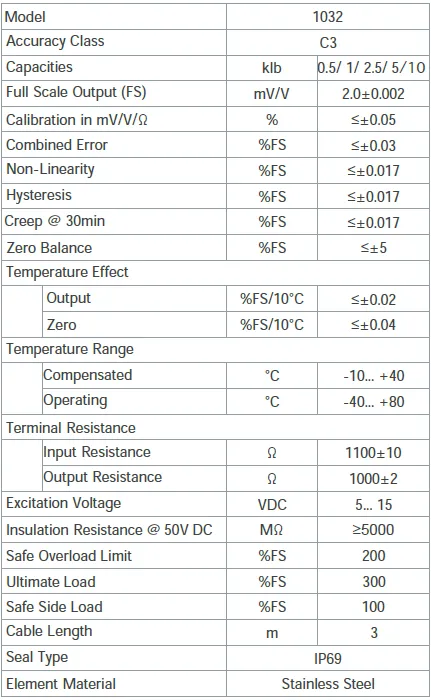

Specifications

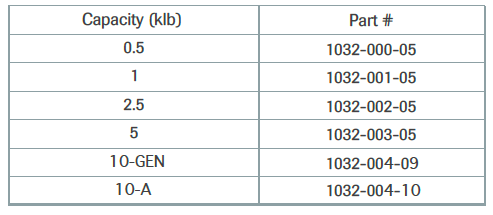

Part Numbers
| Capacity (klb) | Part Number |
|---|---|
| 0.5 | 1032-000-05 |
| 1 | 1032-001-05 |
| 2.5 | 1032-002-05 |
| 5 | 1032-003-05 |
| 10-GEN | 1032-004-09 |
| 10-A | 1032-004-10 |
