Digital Single Ended Beam Load Cell RB14D (1032D)
IMPERIAL
250 – 5000 lb
METRIC
113 – 2,268 kg

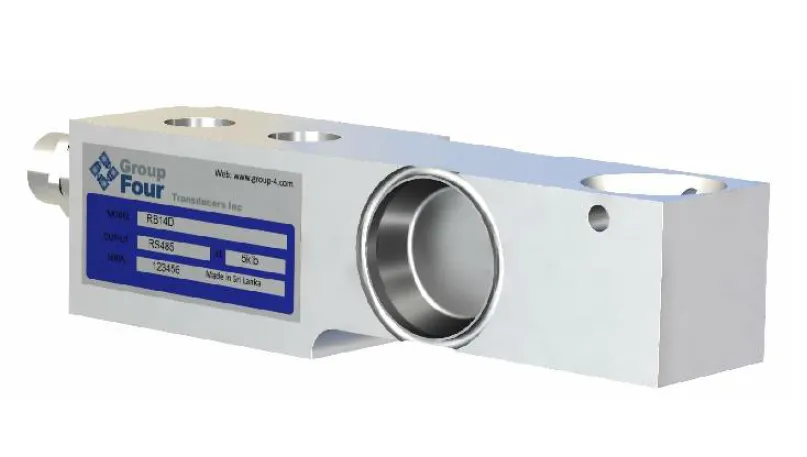

This is a digital single ended beam load cell constructed from stainless steel. Ideal for use in floor scales and tank weighing systems.
View or download the datasheet below for full technical specifications and wiring diagrams.
Features of Digital Single Ended Beam Load Cell RB14D (1032D)
- Capacities from 250lb to 5000lb
- Stainless steel construction
- Environmental protection IP69k
- AD conversion rate up to 1200upd./sec
- CE approved
Applications
- Platform scales
- Tank weighing systems
Options
- Load cells can be supplied with calibration certificates as per ASTM E74

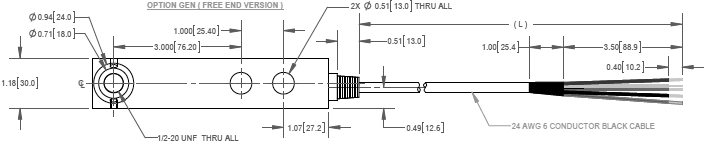

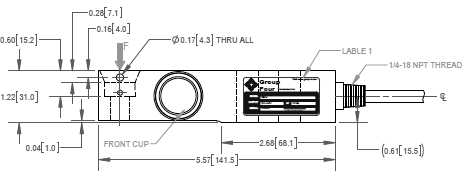

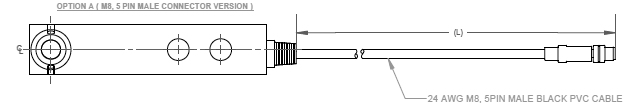

Outline Dimensions
Wiring
| Female Connector Signal Electronics M12AF0008 | ||
|---|---|---|
| Pin No. | RS-232+CAN | RS-485+RS-422 |
| 1 | GND1 | GND1 |
| 2 | PROGRAM | PROGRAM |
| 3 | CANH | Rx+ |
| 4 | TRIGGER INPUT | TRIGGER INPUT |
| 5 | CANL | Rx- |
| 6 | RxD | Tx- |
| 7 | TxD | Tx+ |
| 8 | PWR+ | PWR+ |

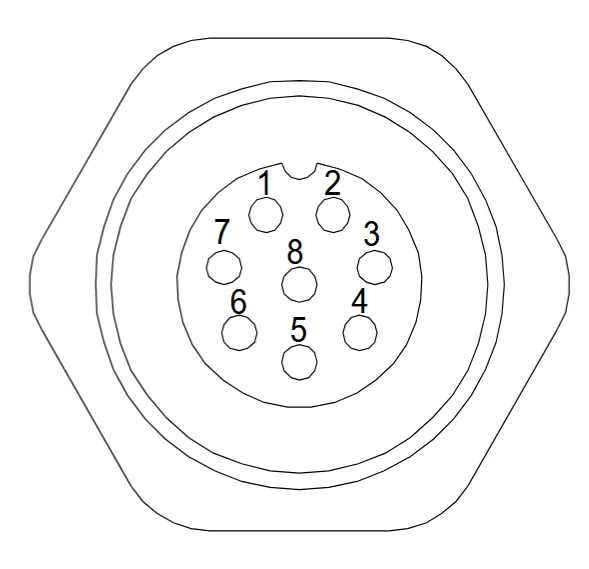

Pin Configuration

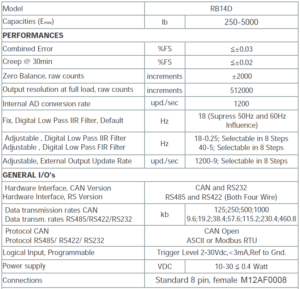

Specifications
| Model | RB14D | ||
|---|---|---|---|
| Capacities (Emax) | lb | 250-5000 | |
| PERFORMANCES | |||
| Combined Error | %FS | ≤±0.03 | |
| Creep Error @ 30min | %FS | ≤±0.02 | |
| Zero Balance, raw counts | increments | ±2000 | |
| Output resolution at full load, raw counts | increments | 512000 | |
| Internal AD conversion rate | upd./sec | 1200 | |
| Fix, Digital Low Pass IIR Filter, Default | Hz | 18 (Supress 50Hz and 60Hz Influence) | |
| Adjustable , Digital Low Pass IIR Filter Adjustable , Digital Low Pass FIR Filter | Hz | 18-0.25; selectable in 8 steps 40-5, selectable in 8 steps | |
| Adjustable, External Output Update Rate | upd./sec | 1200-9; Selectable in 8 Steps | |
| GENERAL I/O’s | |||
| Hardware Interface, CAN Version Hardware Interface, RS Version | CAN and RS232 RS485 and RS422 (Both Four Wire) | ||
| Data transmission rate CAN Data transm, rates RS485/RS422/RS232 | kb | 125;250;500;1000 9.6;19.2;38.4;57.6;115.2;230.4;460.8 | |
| Protocol CAN Protocol RS485/ RS422/RS232 | CAN Open ASCII or Modbus RTU | ||
| Logical Input, Programmable | Trigger level 2-30Vdc, <3mA, Ref to Gnd. | ||
| Power supply | VDC | 10-30 ≤ 0.4 Watt | |
| Connections | Standard 8 pin, female M12AF0008 | ||

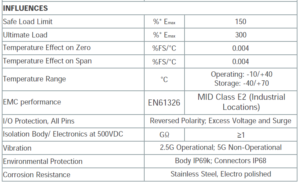

| INFLUENCES | |||
| Safe Load Limit | %* Emax | 150 | |
| Ultimate Load | %* Emax | 300 | |
| Temperature Effect on Zero | %FS/°C | 0.004 | |
| Temperature Effect on Span | %FS/°C | 0.004 | |
| Temperature Range | °C | Operating: -10/+40 Storage: -40/+70 | |
| EMC performance | EN61326 | MID Class E2 (industrial locations) | |
| I/O Protection, All Pins | Reversed Polarity; Excess Voltage and Surge | ||
| Isolation Body / Electronics at 500VDC | GΩ | ≥1 | |
| Vibration | 2.5G Operational; 5G Non-Operational | ||
| Environmental protection | Body IP69k; Connectors IP68 | ||
| Corrosion Resistance | Stainless Steel, Electro polished | ||
Part Numbers
| Capacity (lb) | Option | Part No. |
|---|---|---|
| 250 | RS232 + CAN | 1032D-000-01 |
| 2500 | RS232 + CAN | 1032D-002-01 |
