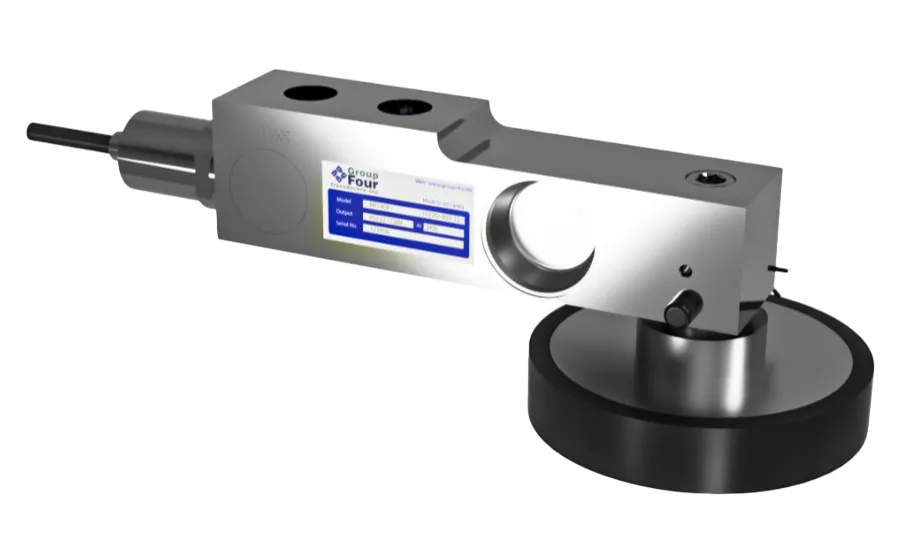

RB14DF (1032DF) Single Ended Beam With Load Foot IP69
IMPERIAL
500 lb – 5klb
METRIC
2, 5, 10, 20 kN
The digital single ended beam constructed from stainless steel single ended shear beam. Ideal for use in floor scales and tank weighing systems.
View or download the datasheet below for full technical specifications and wiring diagrams.
Features
- Capacity 2, 5, 10, 20 kN
- Load plug with low profile load foot introduction
- Environmental protection IP69
Applications
- Platform scales
- Tank weighing
- Hopper weighing
Outline Dimensions

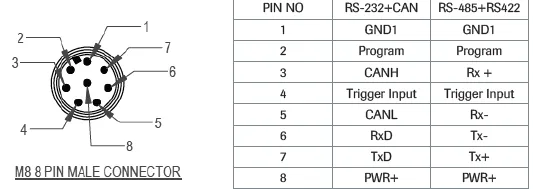

Wiring

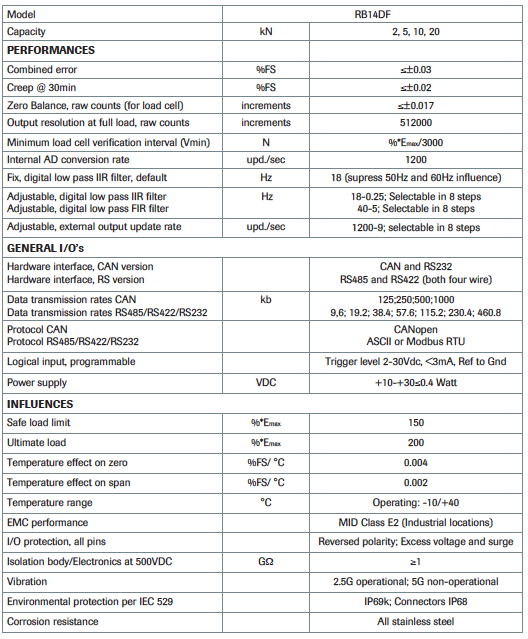

Specifications

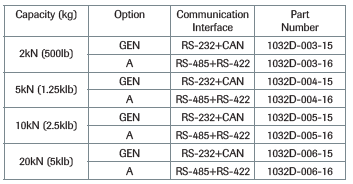

Part Numbers
| Capacity (kg) | Option | Communication Interface | Part Number |
|---|---|---|---|
| 2kN (500lb) | GEN | RS-232+CAN | 1032D-003-15 |
| A | RS-485+RS-422 | 1032D-003-16 | |
| 5kN (1.25klb) | GEN | RS-232+CAN | 1032D-004-15 |
| A | RS-485+RS-422 | 1032D-004-16 | |
| 10kN (2.5klb) | GEN | RS-232+CAN | 1032D-005-15 |
| A | RS-485+RS-422 | 1032D-005-16 | |
| 20kN (5klb) | GEN | RS-232+CAN | 1032D-006-15 |
| A | RS-485+RS-422 | 1032D-006-16 |
