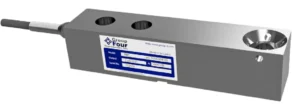

RBP (1056) Stainless Steel Single Ended Beam Load Cell
Capacity: 220 to 5000 lb
The RBP (1056) series is a high-performance, stainless steel single ended shear beam load cell engineered for precision and longevity in demanding industrial environments. Designed as an economical weighing solution, the RBP model balances cost-efficiency with the rugged durability required for modern industrial weighing systems.
Whether you are building a new system or looking for a reliable replacement load cell, the RBP (1056) offers industry-standard mounting dimensions, ensuring seamless integration with existing hardware. Its stainless steel construction provides superior resistance to corrosion, making it a top choice for sectors where hygiene and environmental resilience are non-negotiable.
View or download the RBP (1056) Stainless Steel Single Ended Beam Load Cell datasheet below for full technical specifications and wiring diagrams.
Features
With an environmental protection rating of IP67, this shear beam sensor is fully protected against dust ingress and can withstand temporary immersion in water. This makes it exceptionally ideal for washdown applications and humid conditions often found in food processing or chemical plants.
- Weight Capacities: Available in a wide range from 220 lbs to 5,000 lbs, catering to everything from light bench scales to heavy-duty hopper weighing.
- Signal Accuracy: Engineered for high linearity and repeatability to ensure your digital scale provides consistent data.
- Build Quality: The stainless steel housing protects the internal strain gauge from harsh chemicals and physical impact.
Common Industrial Applications for RBP 1056 Stainless Steel Single Ended Beam Load Cell
The versatility of the RBP single ended beam makes it a “workhorse” sensor across multiple industries. Common use cases include:
- Floor Scales & Platform Scales: Providing stable measurements even with off-center loading.
- Tank and Hopper Weighing: Perfect for inventory control and batching processes.
- Conveyor Scales: High-speed weighing sensors for automated packaging lines.
- Bench Scales: Compact enough for tabletop industrial workstations.

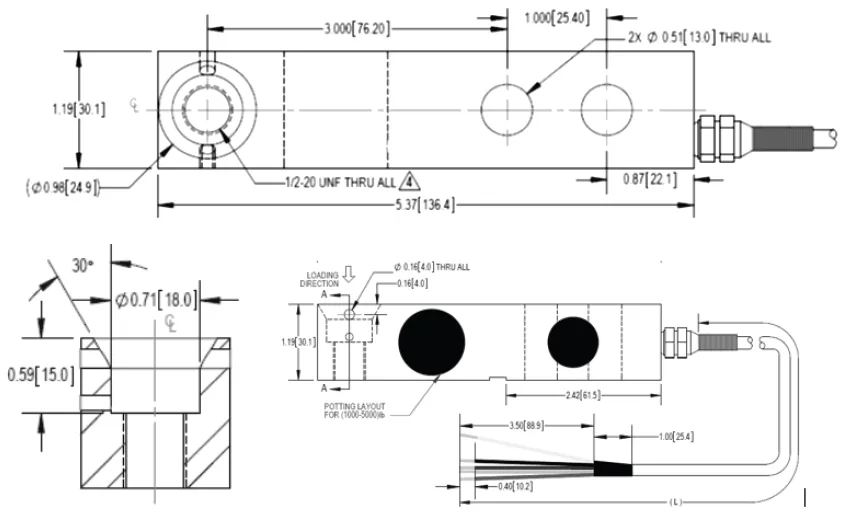

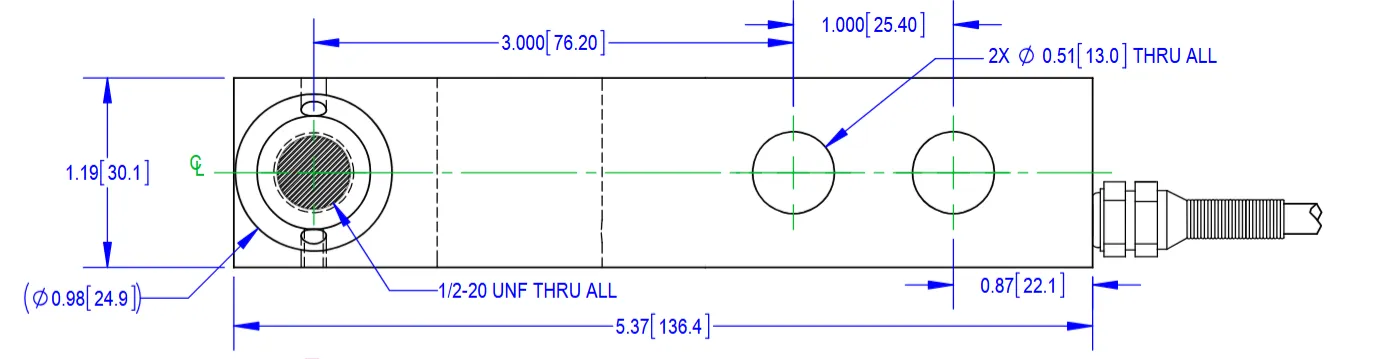

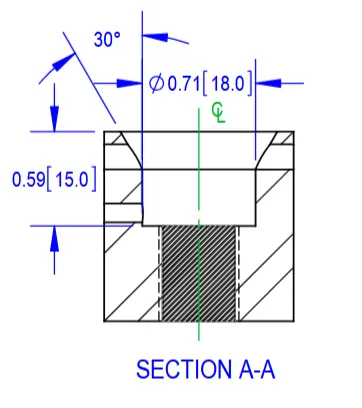

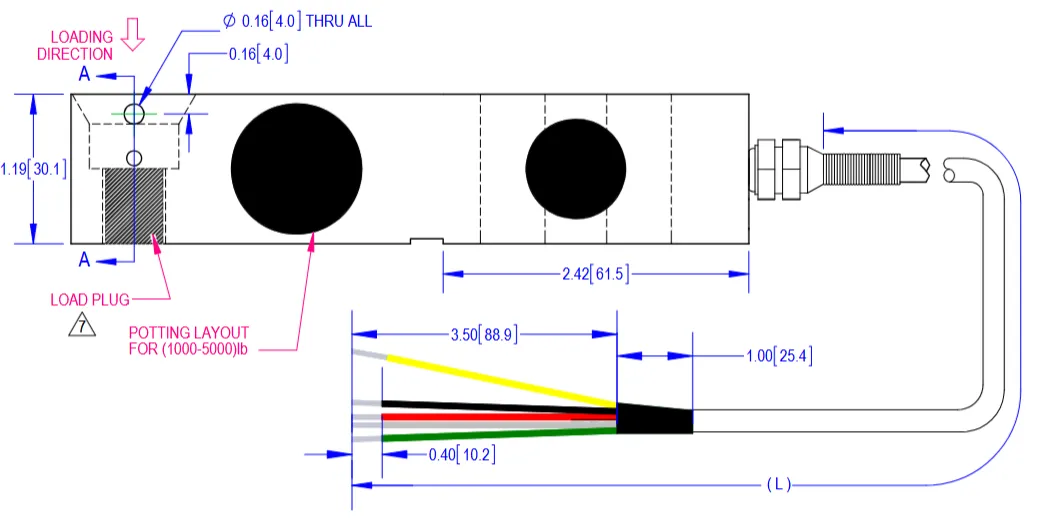

Technical Graphics & Dimensions

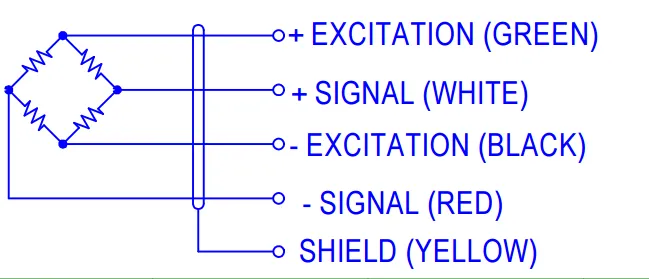

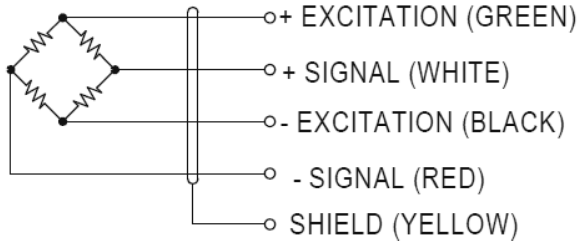

Wiring
Understanding the load cell wiring schematic is crucial for a safe installation. Below is the standard wiring color code for the RBP series to ensure your junction box connection is error-free

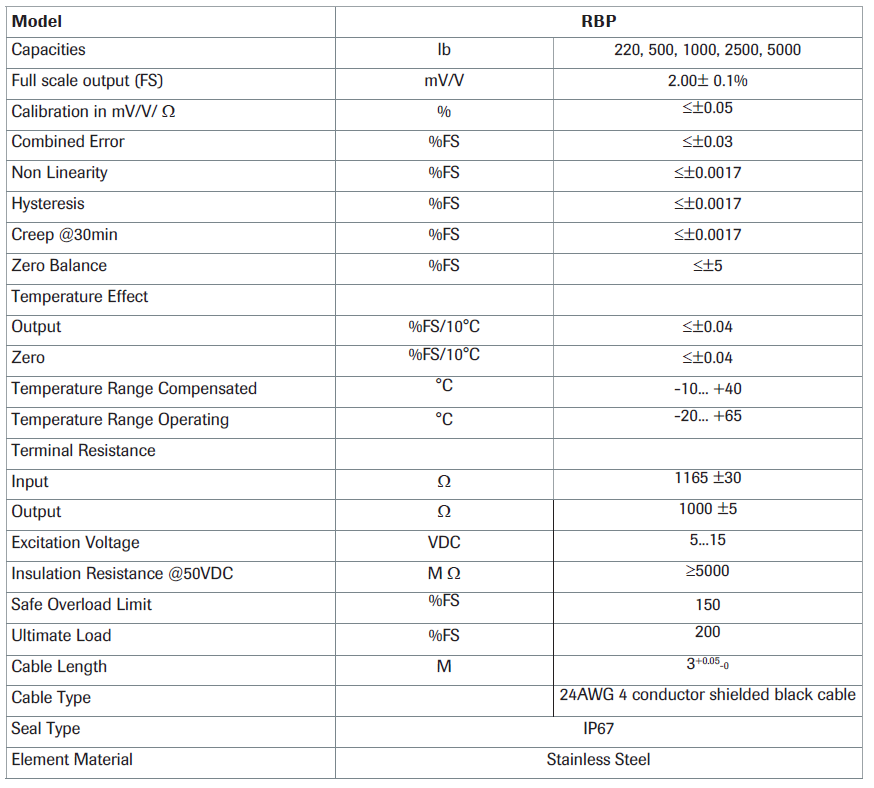

Specifications
| Model | RBP | |
|---|---|---|
| Capacities | lb | 220, 500, 1000, 2500, 5000 |
| Full scale output (FS) | mV/V | 2.00±0.1% |
| Calibration in mV/V/ Ω | % | ≤±0.05 |
| Combined Error | %FS | ≤±0.03 |
| Non Linearity | %FS | ≤±0.0017 |
| Hysteresis | %FS | ≤±0.0017 |
| Creep @30min | %FS | ≤±0.0017 |
| Zero Balance | %FS | ≤±5 |
| Temperature Effect | ||
| Output | %FS/10°C | ≤±0.04 |
| Zero | %FS/10°C | ≤±0.04 |
| Temperature Range Compensated | °C | -10… +40 |
| Temperature Range Operating | °C | -20… +65 |
| Terminal Resistance | ||
| Input | Ω | 1165 ±30 |
| Output | Ω | 1000 ±5 |
| Excitation Voltage | VDC | 5…15 |
| Insulation Resistance @50VDC | M Ω | ≥5000 |
| Safe Overload Limit | %FS | 150 |
| Ultimate Load | %FS | 200 |
| Cable Length | M | 3+0.05-0 |
| Cable Type | 24AWG 4 conductor shielded black cable | |
| Seal Type | IP67 | |
| Element Material | Stainless Steel | |
Part Numbers
| Capacity (lb) | Part No. |
|---|---|
| 220 | 6000WM3-000-00 |
| 500 | 6000WM3-001-00 |
| 1000 | 6000WM3-002-00 |
| 2500 | 6000WM3-003-00 |
| 5000 | 6000WM3-004-00 |
