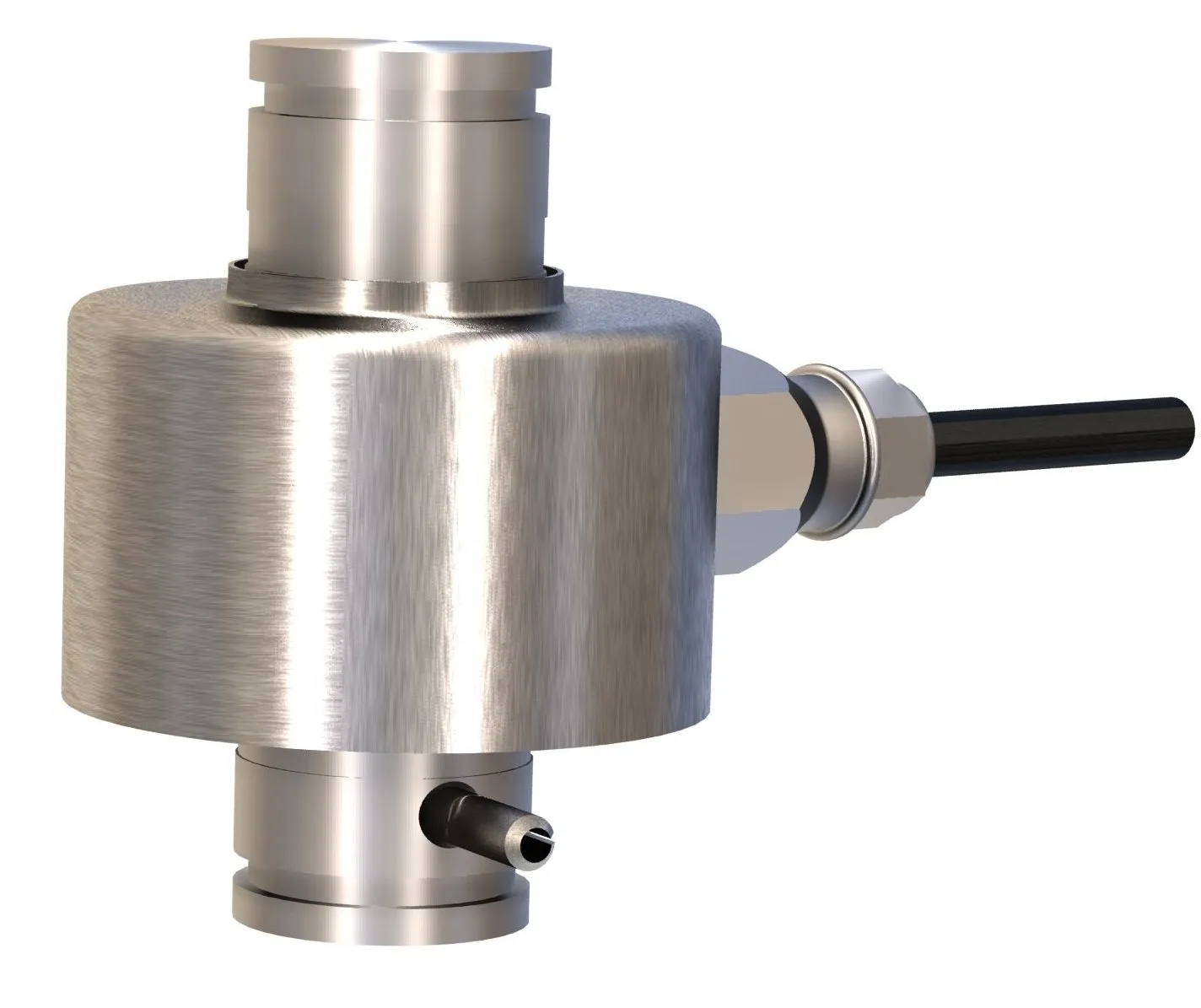

Rocker Column Load Cell RC 5030
Capacity: 5 to 50 t
This rocker column is a stainless steel self centering load cell with complete hermetic sealing. It is a perfect fit for use in hard industrial environments.
Below you can view or download the datasheet of Rocker Column Load Cell RC 5030.
Features
- Wide range of capacities from 5 t to 50 t
- Stainless steel construction
- Environmental Protection IP69 with complete hermetic sealing
- Self restoring design
- High input resistance
Applications of Rocker Column Load Cell RC 5030
- Weighbridges, hoppers, tanks and silos
Outline Dimensions

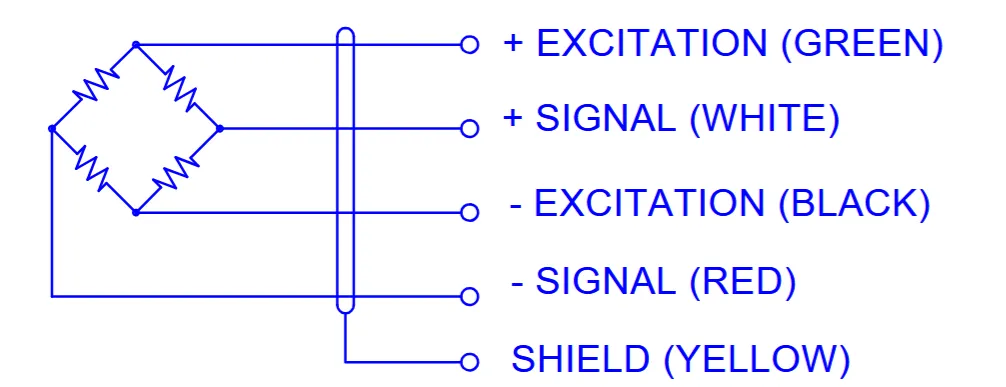

Wiring
Specifications
| Model | RC | |
|---|---|---|
| Accuracy class | C3 | |
| Capacity | t | 5/ 10/ 20/ 30/ 40/ 50 |
| Full scale output (FS) | mV/V | 2.0±0.1% |
| Calibration in mV/V/Ω | % | ≤±0.05 |
| Zero balance | %FS | ≤±5 |
| Non-linearity | %FS | ≤±0.05 |
| Hysteresis | %FS | ≤±0.05 |
| Creep @ 30 min | %FS | ≤±0.02 |
| Temperature effect | ||
| Output | %FS/ 10ºC | ≤±0.01 |
| Zero | %FS/ 10ºC | ≤±0.0187 |
| Temperature range | ||
| Compensated | ºC | -10… +40 |
| Operating | ºC | -10… +65 |
| Terminal resistance | ||
| Input resistance | Ω | 386±50 |
| Output resistance | Ω | 350±2 |
| Excitation voltage | VDC | 5… 15 |
| Insulation resistance @50VDC | MΩ | ≥5000 |
| Safe overload limit | %FS | 200 |
| Ultimate load | %FS | 300 |
| Seal type | IP69 | |
| Cable length | ft | 20 |
| Seal type | IP69 | |
| Element material | Stainless steel | |

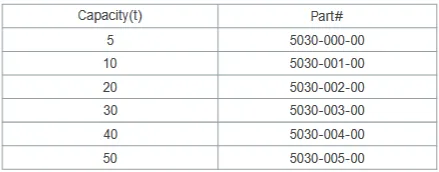

Part Numbers
| Capacity | Part Number |
|---|---|
| 5 | 5030-000-00 |
| 10 | 5030-001-00 |
| 20 | 5030-002-00 |
| 30 | 5030-003-00 |
| 40 | 5030-004-00 |
| 50 | 5030-005-00 |
Rocker Column Load Cell RC 5030 dimensions and specifications subject to change without notice
