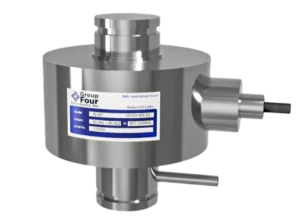

Digital Rocker Column Load Cell RCAD 5053D
IMPERIAL
11 – 110 klb
METRIC
5 – 50 t

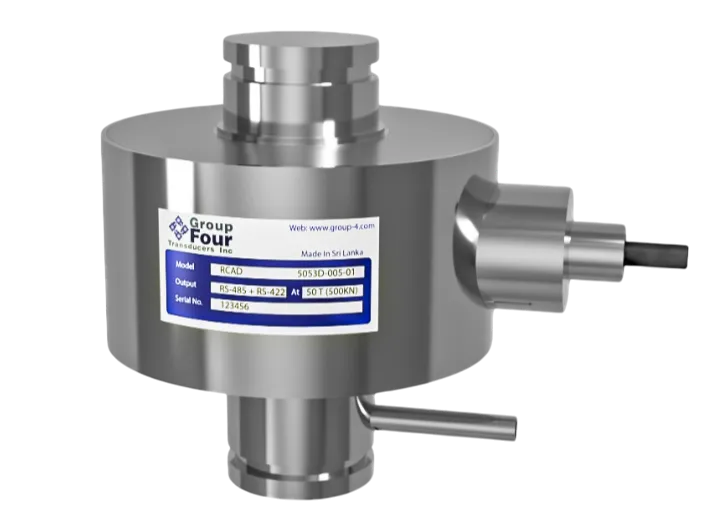

The digital RCAD is a stainless steel self centering rocker column compression load cell ideal for fertilizer and seed weighing systems, mixers, silos, truck scales, tank weighing applications. The hermetically sealed load cell is ideal for use in heavy wash down applications. Protection class IP69K.
Below you can view or download the datasheet of stainless steel Digital Rocker Column Load Cell RCAD 5053D
Features
- Capacities in tons 5, 10, 20, 30, 40 & 50T
- Stainless steel construction
- A to D conversion rate up to 1200 upd/sec.
- Free software for simple load cell setup and operation
- Anti-rotation pin for movement protection
- Environmental protection IP69 with hermetic sealing
- M8 8Pin molded connector
Applications of Digital Rocker Column Load Cell RCAD
- Mixers
- Tank Weighing
- Truck scales
- Hopper weighing
- Silo weighing
- Washdown applications

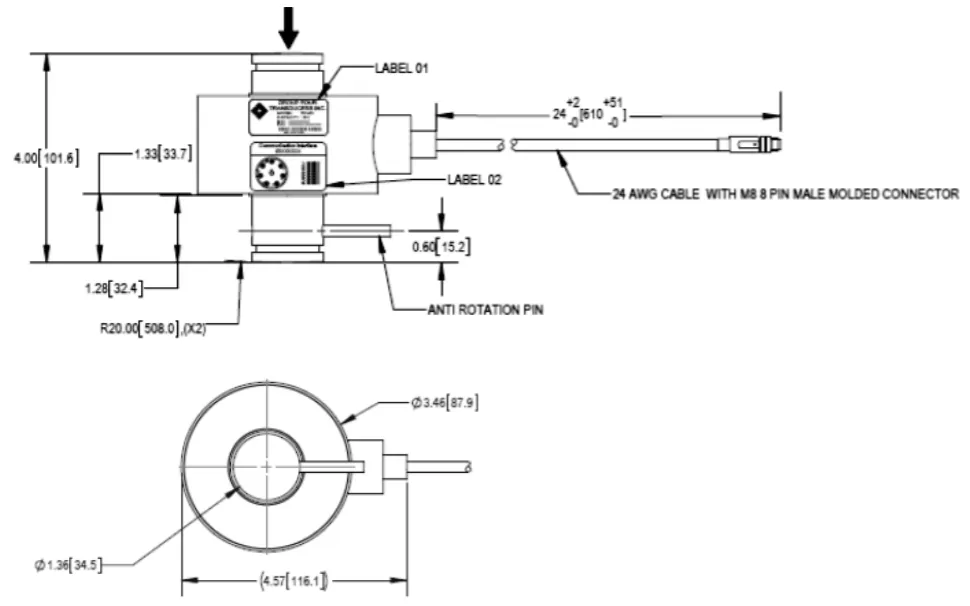

Outline Dimensions

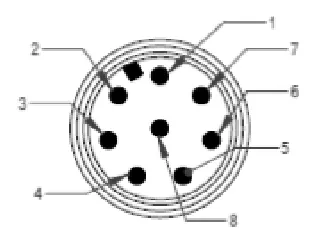

Pin Configuration
| PIN NO | RS232+CAN | RS485 + RS422 |
|---|---|---|
| 1 | GND1 | GND1 |
| 2 | PROGRAM | PROGRAM |
| 3 | CANH | Rx+ |
| 4 | TRIGGER INPUT | TRIGGER INPUT |
| 5 | CANL | Rx- |
| 6 | RxD | Tx- |
| 7 | TxD | Tx+ |
| 8 | PWR+ | PWR+ |

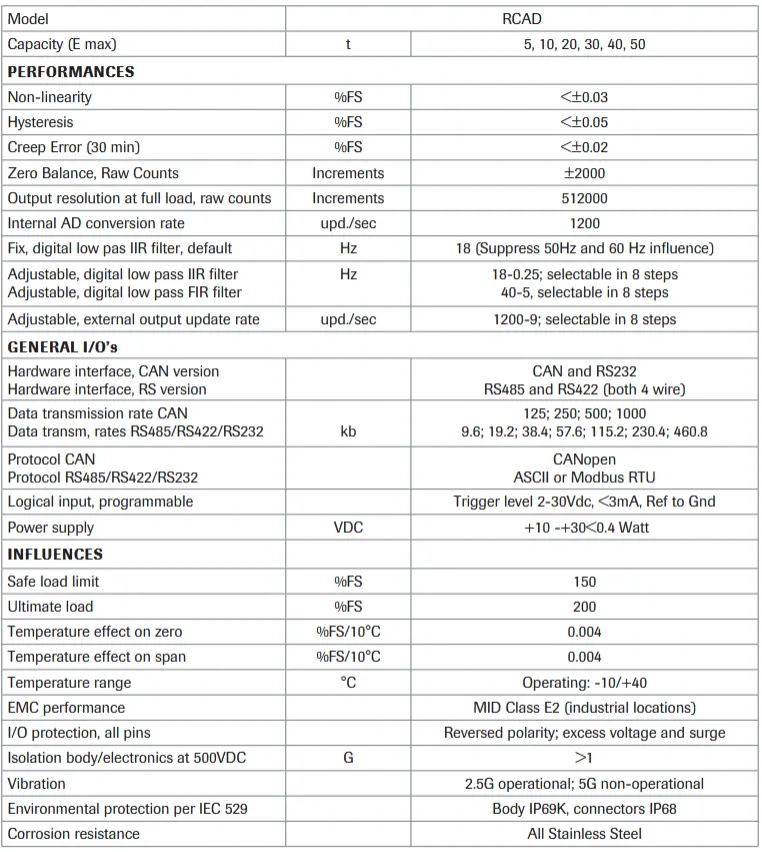

Specifications
| Model | RCAD | ||
|---|---|---|---|
| Capacities (Emax) | klb | 5, 10, 20, 30, 40, 50 | |
| PERFORMANCES | |||
| Non-linearity | %FS | <±0.03 | |
| Hysteresis | %FS | <±0.05 | |
| Creep Error @ 30min | %FS | <±0.02 | |
| Zero Balance, raw counts | increments | ±2000 | |
| Output resolution at full load, raw counts | increments | 512000 | |
| Internal AD conversion rate | upd./sec | 1200 | |
| Fix, Digital Low Pass IIR Filter, Default | Hz | 18 (Supress 50Hz and 60Hz Influence) | |
| Adjustable , Digital Low Pass IIR Filter Adjustable , Digital Low Pass FIR Filter | Hz | 18-0.25; selectable in 8 steps 40-5, selectable in 8 steps | |
| Adjustable, External Output Update Rate | upd./sec | 1200-9; Selectable in 8 Steps | |
| GENERAL I/O’s | |||
| Hardware Interface, CAN Version Hardware Interface, RS Version | CAN and RS232 RS485 and RS422 (both 4 wire) | ||
| Data transmission rate CAN Data transm, rates RS485/RS422/RS232 | kb | 125; 250; 500; 1000 9.6; 19.2; 38.4; 57.6; 115.2; 230.4; 460.8 | |
| Protocol CAN Protocol RS485/ RS422/RS232 | CAN Open ASCII or Modbus RTU | ||
| Logical Input, Programmable | Trigger level 2-30Vdc, <3mA, Ref to Gnd | ||
| Power supply | VDC | +10 -+30<0.4 Watt | |
| INFLUENCES | |||
| Safe Load Limit | %* Emax | 150 | |
| Ultimate Load | %FS | 200 | |
| Temperature Effect on Zero | %FS/10°C | 0.004 | |
| Temperature Effect on Span | %FS/10°C | 0.004 | |
| Temperature Range | °C | Operating: -10/+40 | |
| EMC performance | MID Class E2 (industrial locations) | ||
| I/O Protection, All Pins | Reversed Polarity; Excess Voltage and Surge | ||
| Isolation Body/ Electronics at 500VDC | G | ≥1 | |
| Vibration | 2.5G Operational; 5G Non-Operational | ||
| Environmental protection per IEC 529 | Body IP69K; Connectors IP68 | ||
| Corrosion Resistance | All Stainless Steel | ||
Part Numbers
| Capacity | GEN | A |
|---|---|---|
| 5t (50kN) | 5053D-000-00 | 5053D-000-01 |
| 10t (100kN) | 5053D-001-00 | 5053D-001-01 |
| 20t (200kN) | 5053D-002-00 | 5053D-002-01 |
| 30t (300kN) | 5053D-003-00 | 5053D-003-01 |
| 40t (400kN) | 5053D-004-00 | 5053D-004-01 |
| 50t (500kN) | 5053D-005-00 | 5053D-005-01 |
Communication Interface Label Description
| Option | Label Description |
|---|---|
| GEN | RS232 + CAN |
| A | RS485 + RS422 |
