SB32 (1020) Stainless Steel Shear Beam Load Cell IP68
IMPERIAL
1 – 10 klb
METRIC
453 – 4,536 kg

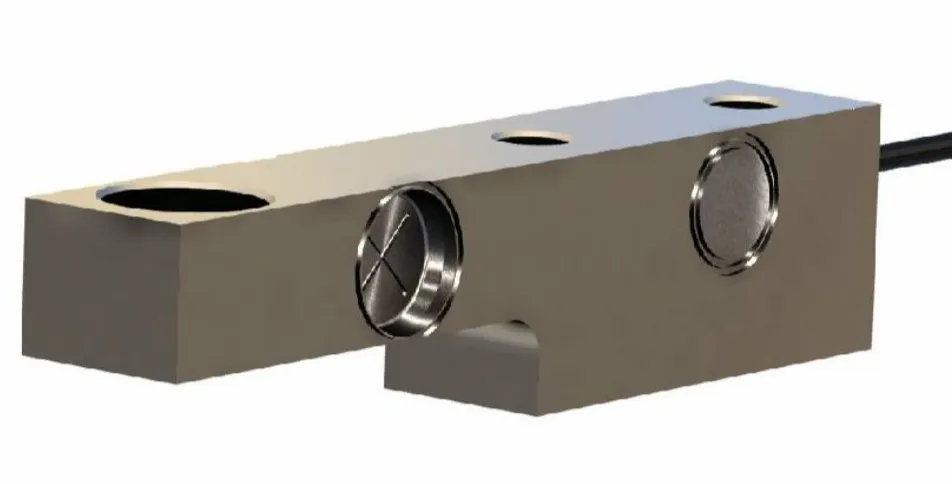

The type SB32 is a stainless steel shear beam type load cell. It is a perfect fit for use in harsh industrial environments.
View or download the datasheet below for full technical specifications and wiring diagrams.
Features
- Capacities from 1 klb to 10 klb
- Stainless steel construction
- Environmental protection IP68
- CE approved
Ideal Applications
- Platform scales, hopper and tank scales
Options
- mV/V/Ω Calibration to ±0.05% for applications with multiple load cells
Outline Dimensions
Wiring

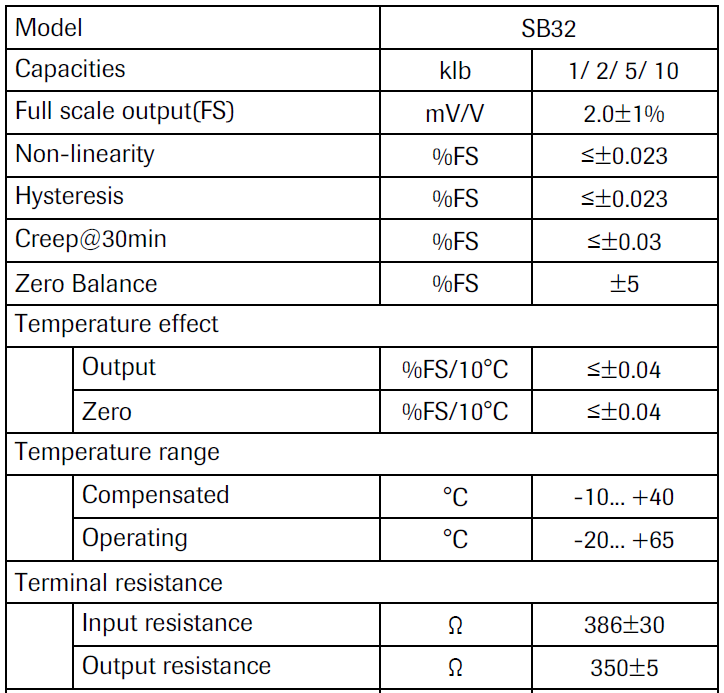

Specifications
Part Numbers
| Capacity (klb) | Part Number |
|---|---|
| 1 | 1020-000-05 |
| 2 | 1020-001-05 |
| 5 | 1020-002-05 |
| 10 | 1020-003-05 |
