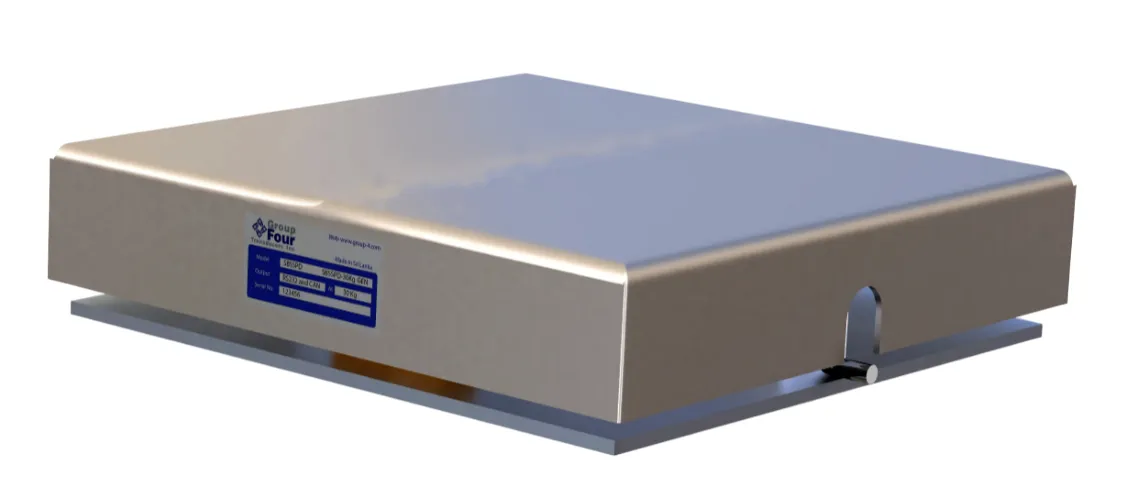

SBSSPD Digital Scale

The SBSSPD digital scale ideal for use in industrial weighing, process weighing, check weighing.

View or download the datasheet below for full technical specifications and wiring diagrams.

Key Features

• Capacities 6, 15 & 30kg
• MOC: Aluminum
• Top Plate: Stainless Steel
• Platform Size 8.31in x 8.31in
• In built overload protection
• A to D conversion rate 1200 update/second
• Direct Digital Output for PLC and other electronics
• IP67

Ideal Applications

• Industrial weighing
• Bench scales
• Process weighing
• Check weighing
• Hopper weighing

Options

• RS 232 & CAN open
• RS 485 & RS422

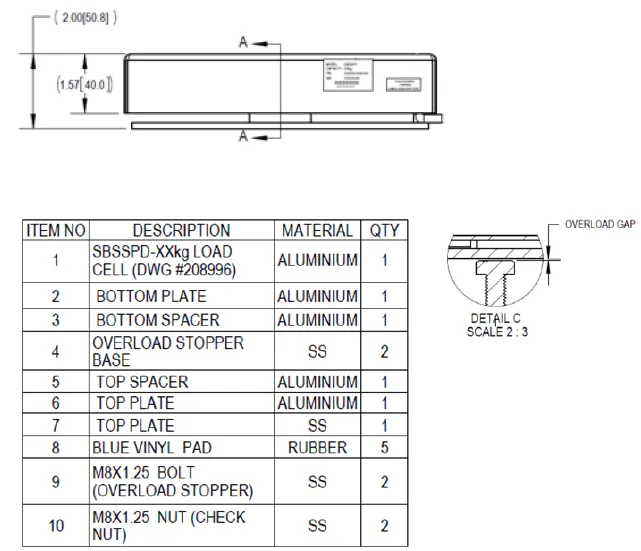

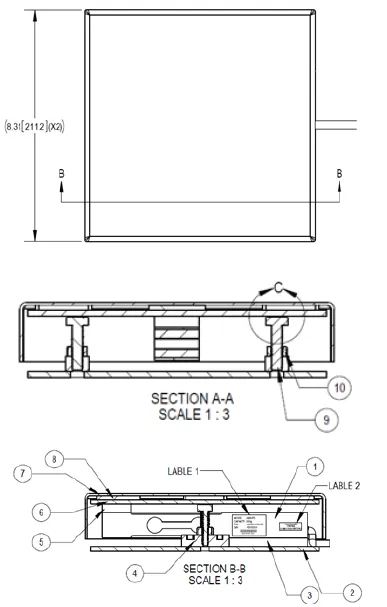

Outline Dimensions

Pin Configuration

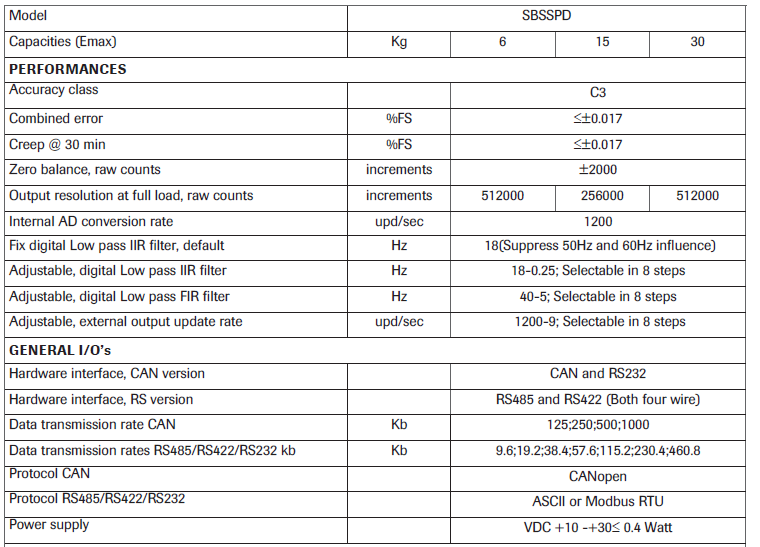

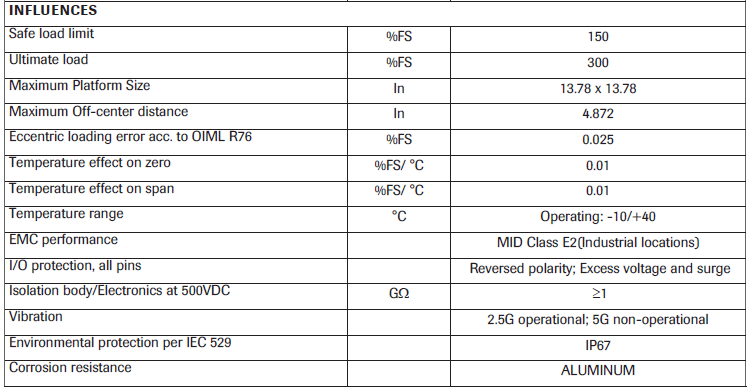

Specifications

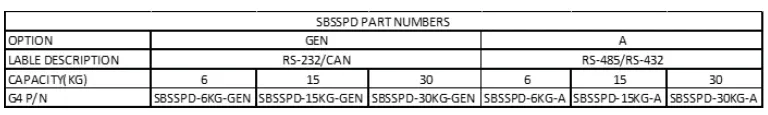

Part Numbers
