Single point deflection transducer SDFM 8007
IMPERIAL
10 lb
METRIC
4.5 kg

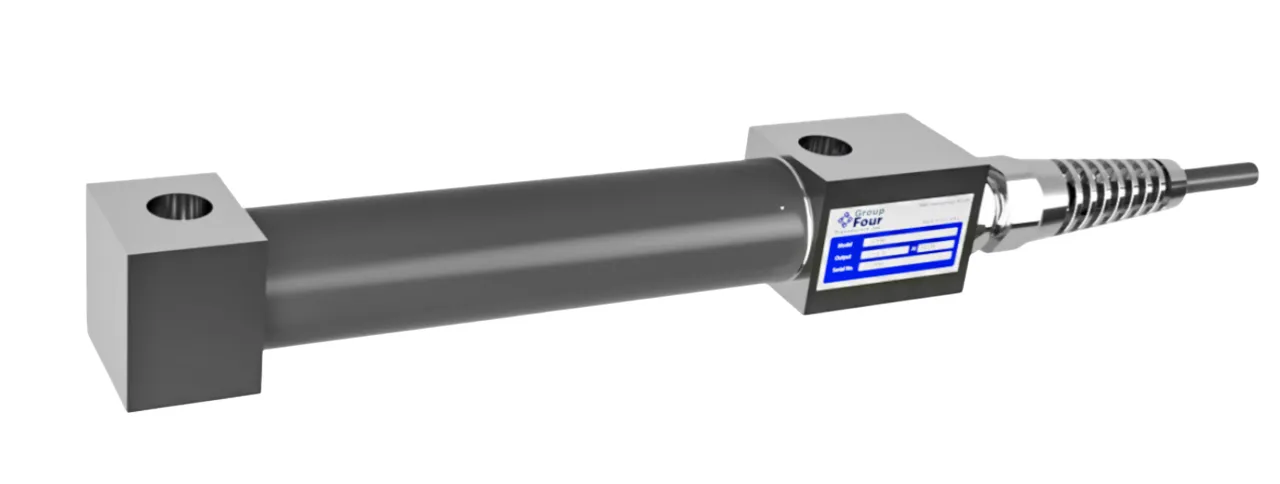

The SDFM is a stainless steel deflection transducer ideal for installing directly on suspension components in trucks and tractors. It measures the deflection and converts it to corresponding weight. It can also be placed on load carrying members to provide solutions for other on board weighing and custom applications.
View or download the datasheet below for full technical specifications and wiring diagrams.
Key Features
- Environmental protection IP67
- Stainless steel construction
Ideal Applications
- On board weighing
- Trucks
- Tractors
- Trailers

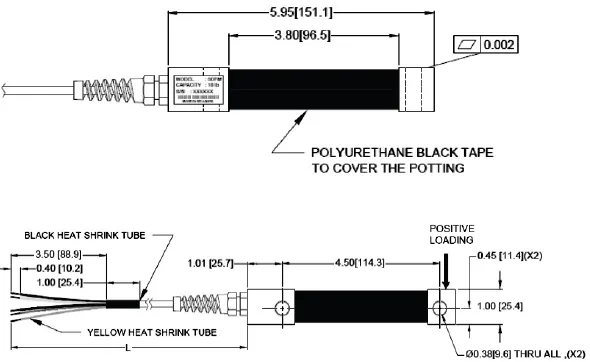

Outline Dimensions
Wiring and Color Code

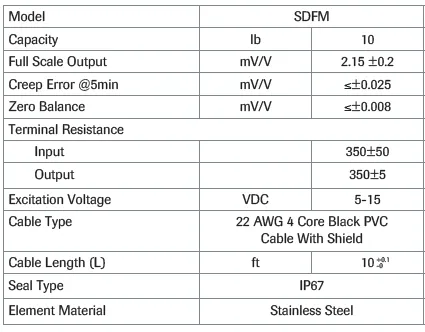

Specifications
| Model | SDFM | ||
|---|---|---|---|
| Capacity | lb | 10 | |
| Full Scale Output | mV/V | 2.15 ±0.2 | |
| Creep Error @5min | mV/V | ≤±0.025 | |
| Zero balance | mV/V | ≤±0.008 | |
| Terminal resistance | |||
| Input | 350±50 | ||
| Output | 350±5 | ||
| Excitation voltage | VDC | 5 – 15 | |
| Cable Type | 22 AWG 4 Core Black PVC | ||
| Cable Length (L) | 10 | ||
| Seal type | IP67 | ||
| Element material | Stainless Steel | ||
Part Numbers
| Capacity (klb) | Part Number |
|---|---|
| 20 | 8007-000-01 |
