Single point deflection transducer SNAM 8008
IMPERIAL
20 lb
METRIC
9 kg

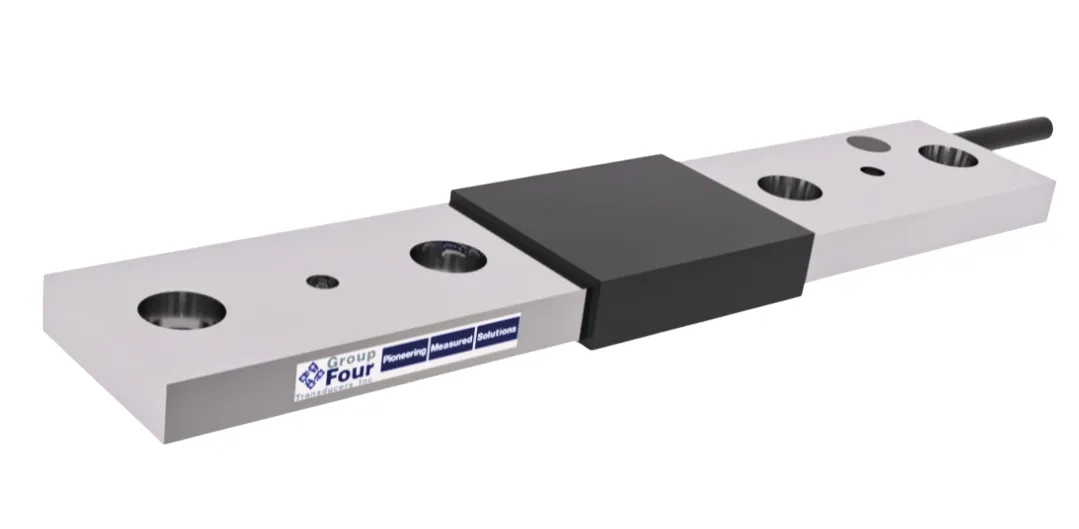

The SNAM is a stainless steel deflection transducer ideal for installing directly on suspension components in trucks and tractors. It measures the deflection and converts it to corresponding weight. It can also be placed on load carrying members to provide solutions for other on board weighing and custom applications.
View or download the datasheet below for full technical specifications and wiring diagrams.
Key Features
- Environmental protection IP67
- Stainless steel construction
Applications
- On board weighing
- Trucks
- Tractors
- Trailers

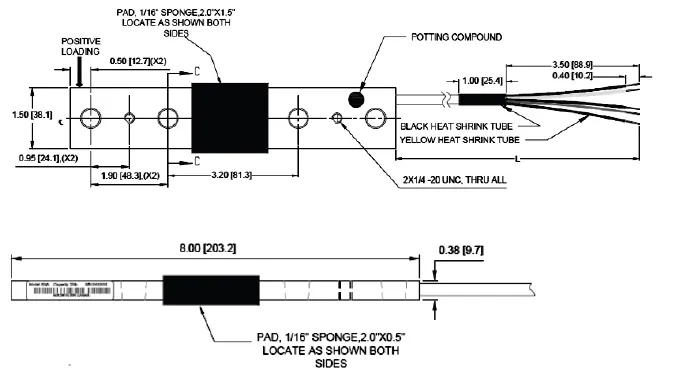

Outline Dimensions
Wiring

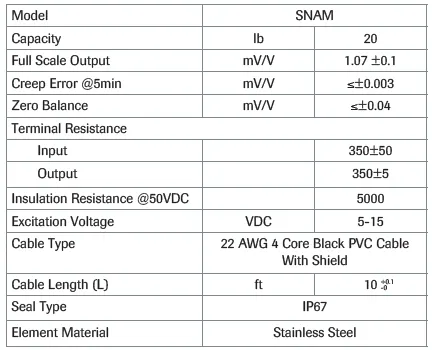

Specifications
| Model | SNAM | ||
|---|---|---|---|
| Capacity | lb | 20 | |
| Full Scale Output | mV/V | 1.07 ±0.1 | |
| Creep Error @5min | mV/V | ≤±0.003 | |
| Zero balance | mV/V | ≤±0.04 | |
| Terminal resistance | |||
| Input | 350±50 | ||
| Output | 350±5 | ||
| Insulation Resistance @50VDC | 5000 | ||
| Excitation voltage | VDC | 5 – 15 | |
| Cable Type | 22 AWG 4 Core Black PVC Cable | ||
| Cable Length (L) | With Shield | ||
| Seal type | IP67 | ||
| Element material | Stainless Steel | ||
Part Numbers
| Capacity (klb) | Part Number |
|---|---|
| 20 | 8008-000-01 |
