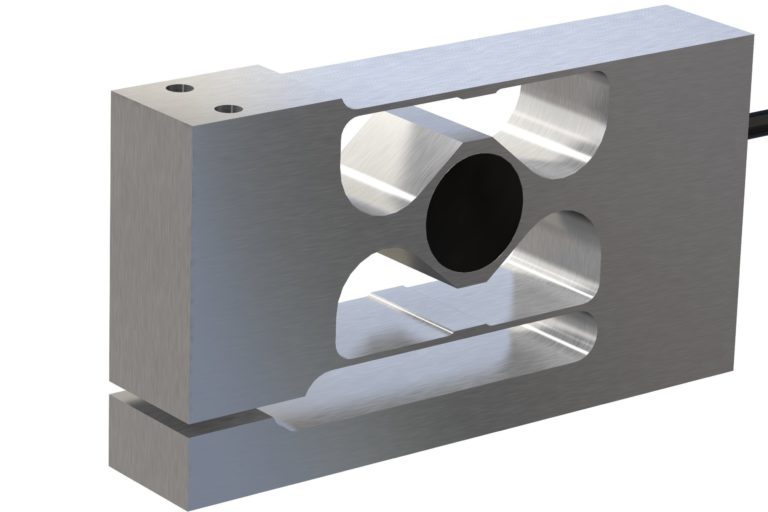

SP12 (4079) Anodized Aluminum Single Point Load Cell IP67
IMPERIAL
22 – 220 lb
METRIC
10 – 100 kg
The 4079 series load cell with its high response time and integral overload stop makes it ideal for use in packaging and filling machines.
View or download the datasheet below for full technical specifications and wiring diagrams.
Key Features
- Capacities from 10kg to 100kg
- Anodized aluminum construction
- Environmental protection IP67
- High natural frequency, Fast responce time
Ideal Applications
- Ideal for use in packaging and bag filling machines
Options
- Voltage output.
- Serial digital output.

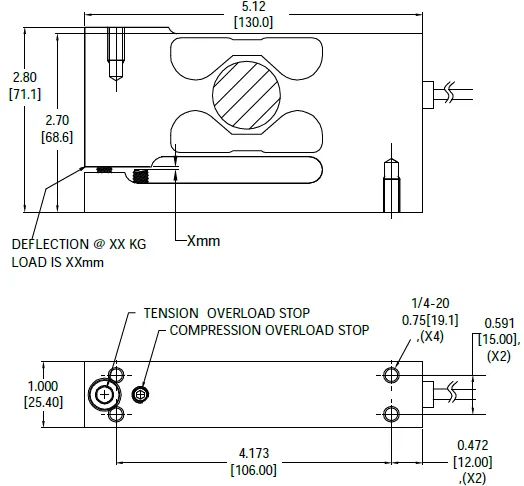

Outline Dimensions
Wiring

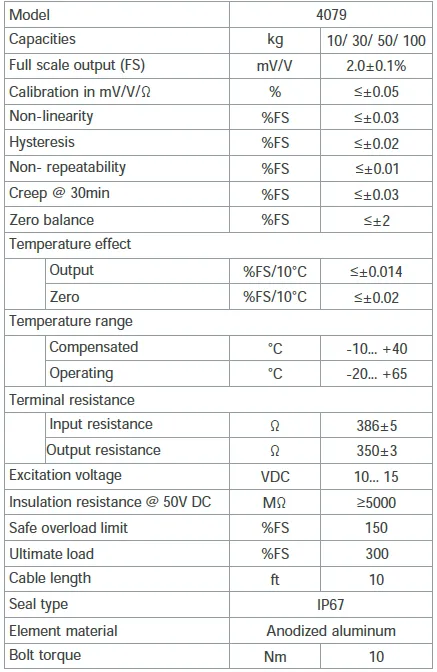

Specifications

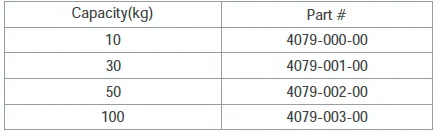

Part Numbers
| Capacity (kg) | Part Number |
|---|---|
| 10 | 4079-000-00 |
| 30 | 4079-001-00 |
| 50 | 4079-002-00 |
| 100 | 4079-003-00 |
