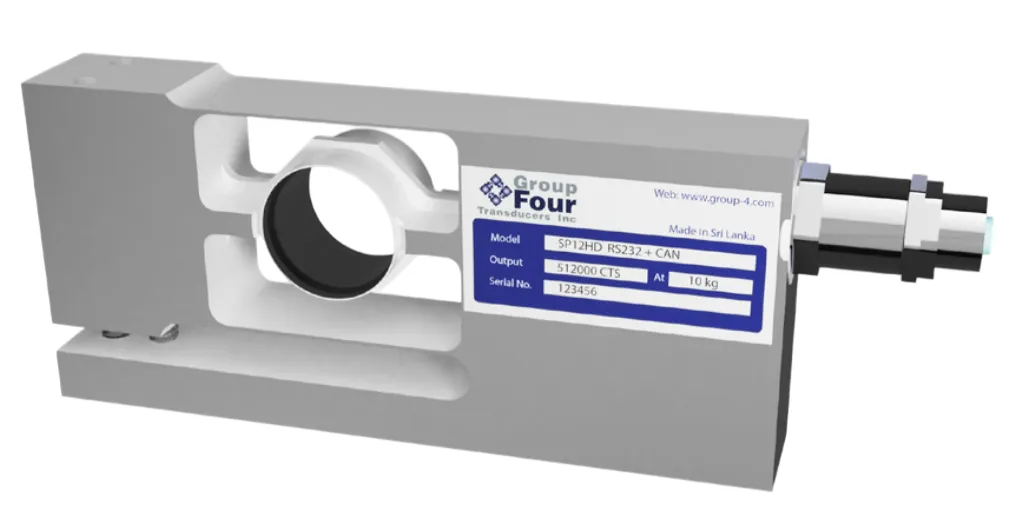

Digital Single Point Load Cell SP12HD 4033D
IMPERIAL
22 – 110 lb
METRIC
10 – 50 kg
Digital stainless steel single point load cell designed for high speed filling and check weighing applications. The hermetically sealed load cell is ideal for use in heavy washdown applications. Protection class IP69K.
View or download the Digital Single Point Load Cell SP12HD 4033D datasheet below for full technical specifications and wiring diagrams.
Features
- Capacity 10 & 50Kg
- Stainless steel construction
- Overload stopping mechanism
- Environmental protection IP69k with complete hermetic sealing
- AD conversion rate up 1200upd/sec
- Free professional software to set up digital load cell
Applications of Digital Single Point Load Cell SP12HD 4033
- Bench scale
- Checkweighers
- Conveyor weighing systems
- Filling plants
- Packaging machines
- Industrial process control
Options
- Communication Interface
- Gen (CAN + RS232)
- A (RS485 + RS422)
- Load cells can be supplied with calibration certificate as per ASTEM E74

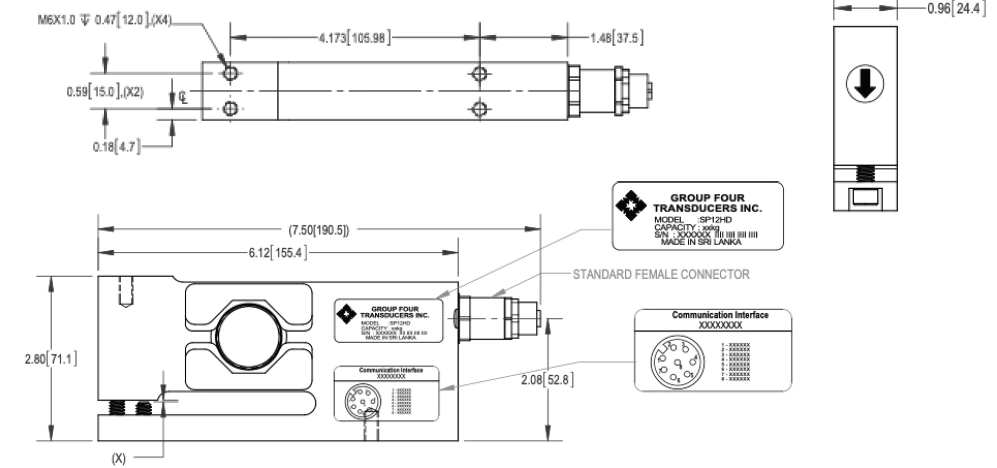

Outline Dimensions
Pin Configuration
| Standard Female Connector Signal Electronics M121F0008 | |||
|---|---|---|---|
| PIN No | RS232+CAN | RS485+RS422 | Mating Cable Color Code |
| 1 | GND1 | GND1 | WHITE |
| 2 | PROGRAM | PROGRAM | BROWN |
| 3 | CANH | Rx+ | GREEN |
| 4 | TRIGGER INPUT | TRIGGER INPUT | YELLOW |
| 5 | CANL | Rx- | GRAY |
| 6 | RxD | Tx- | PINK |
| 7 | TxD | Tx+ | BLUE |
| 8 | PWR+ | PWR+ | RED |
Specifications
| Model | SP12HD | ||
|---|---|---|---|
| Capacities (Emax) | kg | 10 | 50 |
| PERFORMANCES | |||
| Accuracy class | C3 | ||
| Minimum load cell verification interval (Vmin) | g | 1 | 5 |
| Combined Error | %FS | ≤±0.017 | |
| Creep Error @ 30min | %FS | ≤±0.017 | |
| Zero Balance, raw counts | increments | ±2000 | |
| Output resolution at full load, raw counts | increments | 512000 | |
| Internal AD conversion rate | upd./sec | 1200 | |
| Fix, Digital Low Pass IIR Filter, Default | Hz | 18 (Supress 50Hz and 60Hz Influence) | |
| Adjustable , Digital Low Pass IIR Filter Adjustable , Digital Low Pass FIR Filter | Hz | 18-0.25; selectable in 8 steps 40-5, selectable in 8 steps | |
| Adjustable, External Output Update Rate | upd./sec | 1200-9; Selectable in 8 Steps | |
| GENERAL I/O’s | |||
| Hardware Interface, CAN Version Hardware Interface, RS Version | CAN and RS232 RS485 and RS422 (Both Four Wire) | ||
| Data transmission rate CAN Data transm, rates RS485/RS422/RS232 | kb | 125; 250; 500; 1000 9.6; 19.2; 38.4; 57.6; 115.2; 230.4; 460.8 | |
| Protocol CAN Protocol RS485/ RS422/RS232 | CAN Open ASCII or Modbus RTU | ||
| Logical Input, Programmable | Trigger level 2-30Vdc, <3mA, Ref to Gnd. | ||
| Power supply | VDC | 10-30 ≤ 0.4 Watt | |

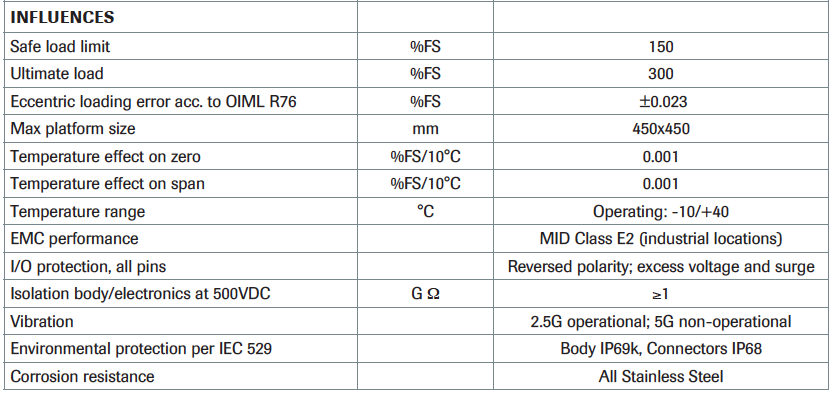

| INFLUENCES | |||
| Safe Load Limit | %FS | 150 | |
| Ultimate Load | %FS | 300 | |
| Eccentric loading error acc. to OIML R76 | %FS | ±0.023 | |
| Max platform size | mm | 450×450 | |
| Temperature Effect on Zero | %FS/10°C | 0.001 | |
| Temperature Effect on Span | %FS/10°C | 0.001 | |
| Temperature Range | °C | Operating: -10/+40 | |
| EMC performance | MID Class E2 (industrial locations) | ||
| I/O Protection, All Pins | Reversed Polarity; Excess Voltage and Surge | ||
| Isolation Body / Electronics at 500VDC | GΩ | ≥1 | |
| Vibration | 2.5G Operational; 5G Non-Operational | ||
| Environmental Protection Per IEC 529 | Body IP69k, Connectors IP68 | ||
| Corrosion Resistance | All Stainless Steel | ||
Part Numbers
| Option | GEN | A | ||
|---|---|---|---|---|
| Description | LDB151 (RS232+CAN) | LDB152 (RS485+RS422) | ||
| Capacity (kg) | 10 | 50 | 10 | 50 |
| Part Number | 4033D-000-00 | 4033D-000-01 | 4033D-001-00 | 4033-001-01 |
