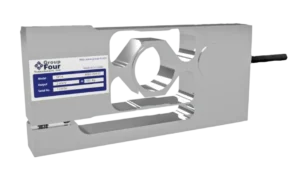

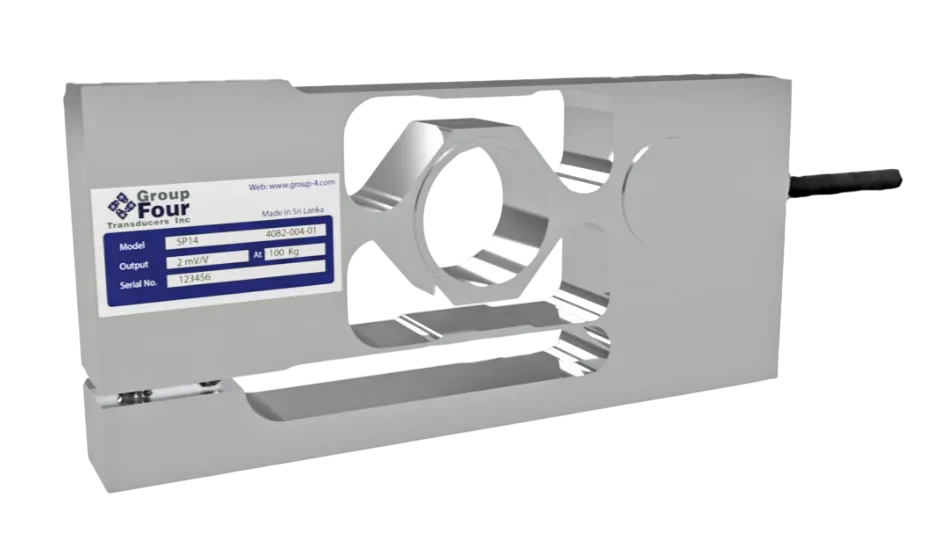

SP14 (4082) Stainless Steel Single Point Load Cell IP67
IMPERIAL
22 – 220 lb
METRIC
10 – 100 kg
The 4082 series is designed for light and medium applications and is designed specifically to give very fast response time. The high natural frequency makes it perfect for precision filling and check weighing applications. The capacities offered are from 10 kg up to 100 kg. The IP67 moisture rating makes it suitable for a semi-wet environment. The bi-directional, integral overload stop gives this load cell positive overload protection in both tension and compression protecting it from operator abuse.
View or download the datasheet below for full technical specifications and wiring diagrams.
Key Features
- Capacities from 10kg to 100kg
- Aluminum construction
- High natural frequency, fast response time
- Integral tension and compression overload stop
- Environmental Protection IP67
Ideal Applications
- High precision filling
- Packaging
- Check weighing machines
Options
- mV/V/Ohm calibration matching
- Voltage output
- Digital serial output

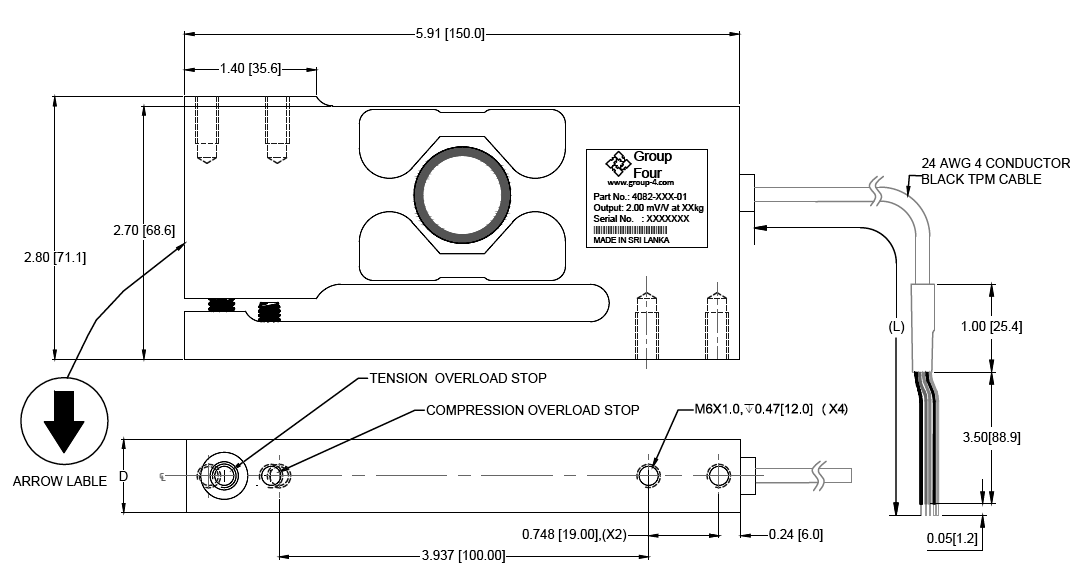

Outline Dimensions

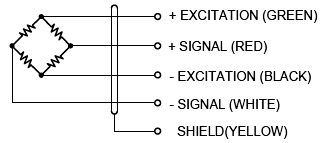

Wiring

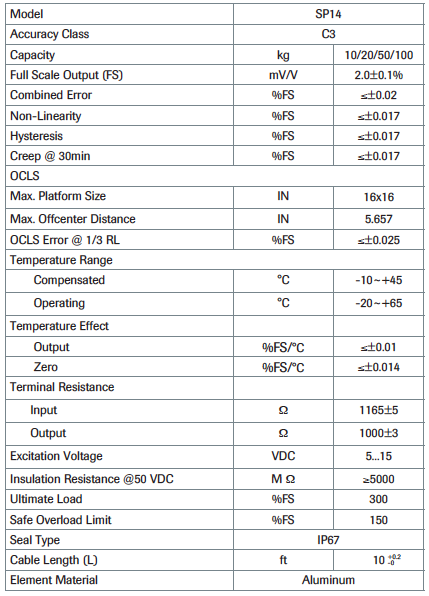

Specifications
Part Numbers
| Capacity (kg) | Part Number |
|---|---|
| 10 | 4082-001-01 |
| 20 | 4082-002-01 |
| 50 | 4082-003-01 |
| 100 | 4082-004-01 |
