SP162 (4076) Single Point Load Cell IP66
IMPERIAL
551 lb
METRIC
250 kg
The SP162 is a single point triple beam load cell for packaging machines, bench scale and filling machines. It is a lower cost solution as well.
View or download the datasheet below for full technical specifications and wiring diagrams.
Key Features
- Capacity 250kg
- Anodized aluminum construction
- Environmental protection IP66
Ideal Applications
- Bench scales
- Floor scales
- Check weighers
- Packaging machines
- Industrial process

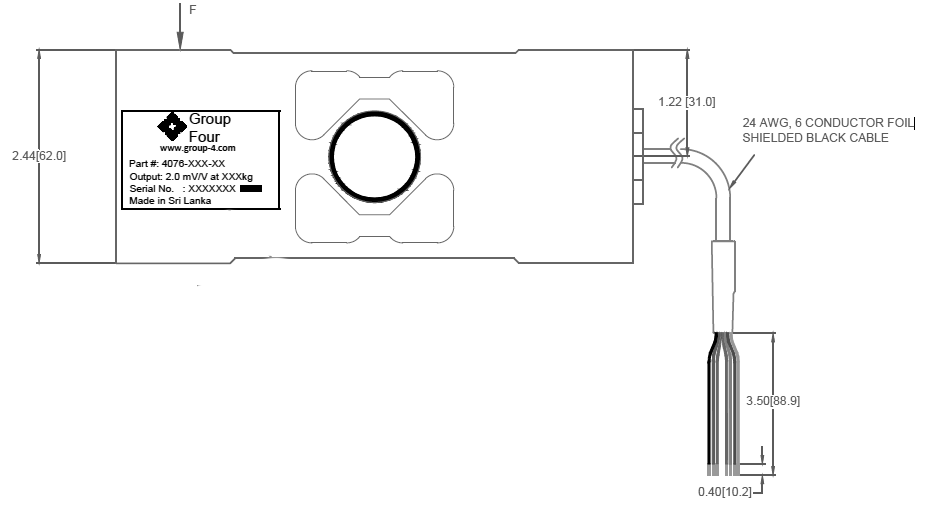

Outline Dimensions

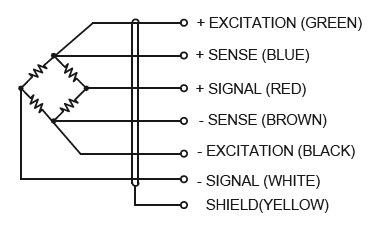

Wiring

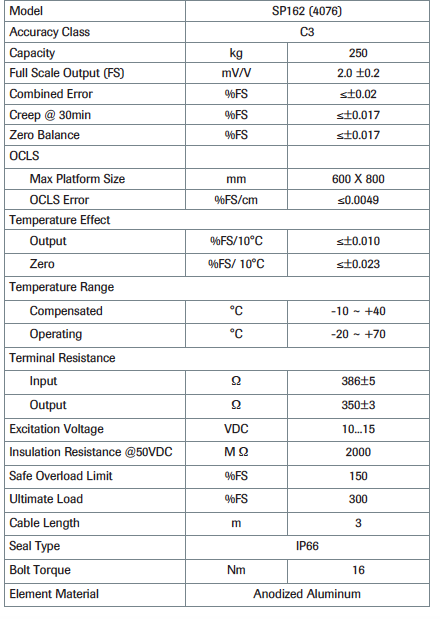

Specifications
| Model | SP162 (4076) | ||
|---|---|---|---|
| Accuracy Class | C3 | ||
| Capacity | kg | 250 | |
| Full scale output(FS) | mV/V | 2.0 ±0.2 | |
| Combined error | %FS | ≤±0.02 | |
| Creep @ 30min | %FS | ≤±0.017 | |
| Zero Balance | %FS | ≤±0.017 | |
| OCLS | |||
| OCLS error | %FS/cm | ≤0.0049 | |
| Max Platform Size | mm | 600 X 800 | |
| Temperature effect | |||
| Output | %FS/10°C | ≤±0.010 | |
| Zero | %FS/10°C | ≤±0.023 | |
| Temperature range | |||
| Compensated | °C | -10… +40 | |
| Operating | °C | -20… +70 | |
| Terminal resistance | |||
| Input resistance | Ω | 386±5 | |
| Output resistance | Ω | 350±3 | |
| Excitation voltage | VDC | 10 … 15 | |
| Insulation resistance @ 50V DC | MΩ | 2000 | |
| Safe overload limit | %FS | 150 | |
| Ultimate load | %FS | 300 | |
| Cable length | m | 3 | |
| Seal type | IP66 | ||
| Bolt Torque | Nm | 16 | |
| Element material | Anodized Aluminum | ||
Part Numbers
| Capacity (kg) | Part Number |
|---|---|
| 250 | 4076-000-00 |
