SP2 (4002) Single Point Load Cell IP67
Capacity: 3kg, 6kg, 15kg, 30kg, 60kg
The model SP2 is constructed from high grade anodized aluminum. With industry standard footprint, it is designed for light capacity applications up to 60kgs and accommodates off center loads.
Features
- Anodized aluminum construction
- Capacities offered from 3kg to 60kg
- Environmental protection IP67
- High accuracy
- Platform size 300x300mm
- Industry standard footprint
applications
- Small platforms
- Bench scales
- Packaging machines
- Filling machines
technical details of SP2 (4002) Single Point Load Cell
Outline Dimensions
Wiring

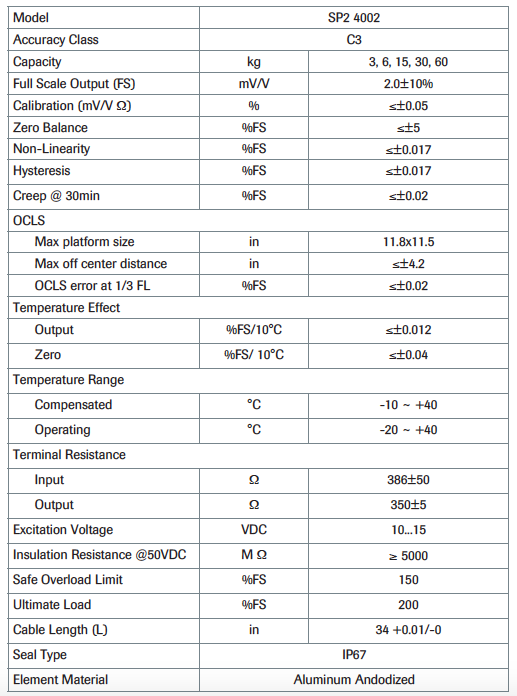

Specification

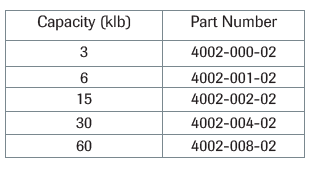

Part Numbers
