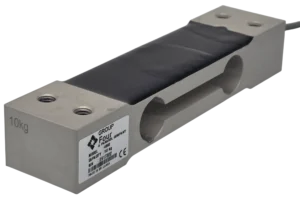

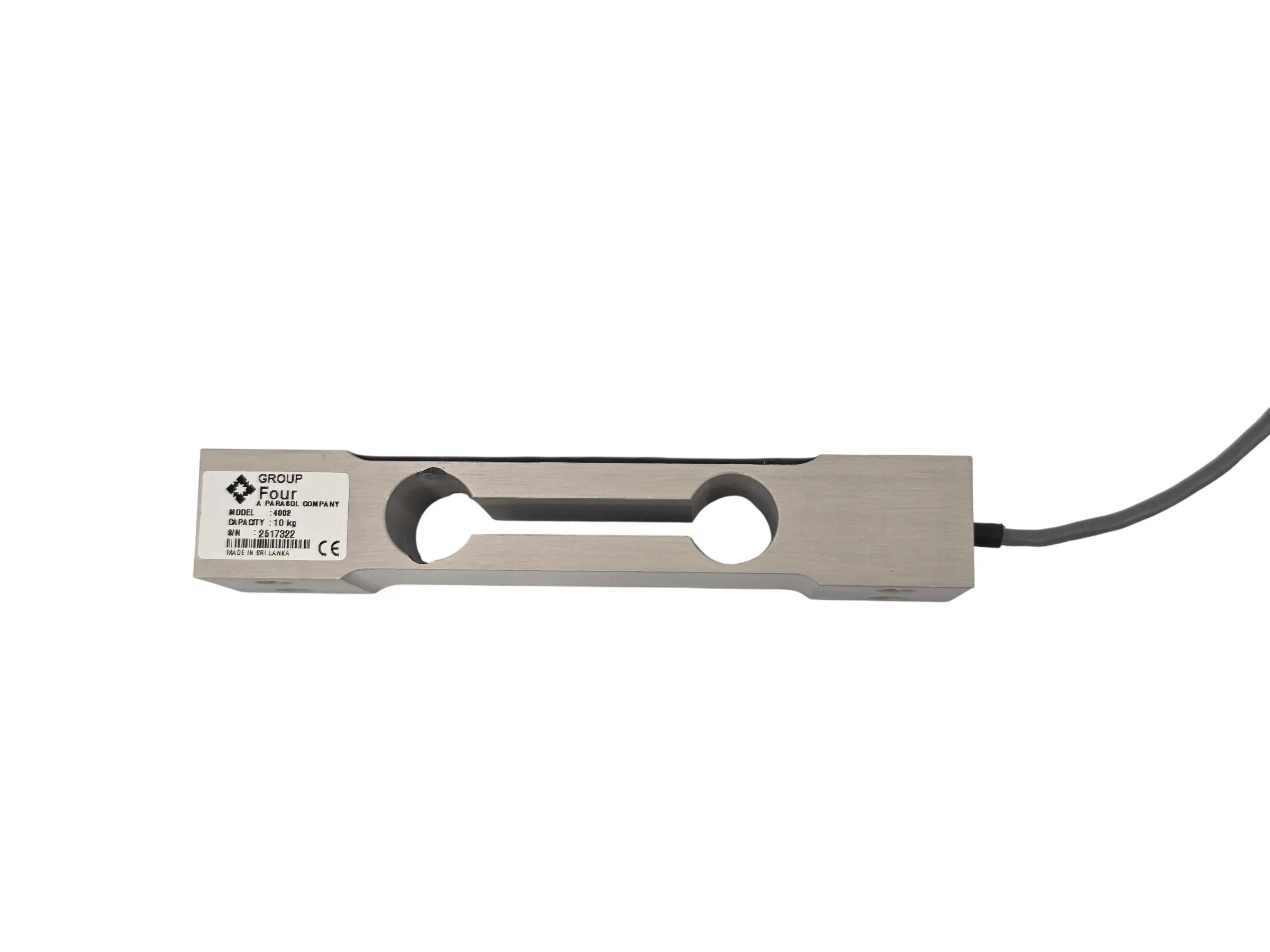

SP2 (4002) Single Point Load Cell IP67
IMPERIAL
6 – 110 lb
METRIC
3 – 50 kg
The SP2 4002 single point load cell is a compact, high-performance aluminum load cell engineered for precise force measurement and weighing applications. Manufactured from premium aircraft-grade anodized aluminum, the SP2 provides exceptional durability, corrosion resistance, and long-term signal stability in light-to-medium capacity weighing systems.
Designed specifically to accommodate off-center loads, this strain gauge load cell maintains maximum accuracy even when forces are applied outside the geometric center of the platform. With an IP67 environmental protection rating, the model SP2 is built to withstand dust, moisture, and mild washdown environments, making it a reliable weighing sensor for packaging machines, bench scales, and automated filling equipment.
Whether you are designing a custom platform scale, upgrading industrial process machinery, or integrating OEM weighing modules, the SP2 load cell delivers industry-standard performance with a proven, universal footprint.
View or download the SP2 4002 Single Point Load Cell datasheet below for full technical specifications and wiring diagrams.
Key Features & Benefits
Durable Anodized Aluminum Construction: Engineered from high-strength aluminum alloy for robust performance, thermal stability, and long-term protection against oxidation
Wide Capacity Range (3kg to 50kg): Available in versatile weight ranges—including 3kg, 5kg, 10kg, 20kg, 30kg, and 50kg capacity load cell options to fit your exact application specs
IP67 Environmental Rating: Dust-tight and moisture-resistant enclosure ensures high reliability in demanding commercial and industrial manufacturing environments
High Accuracy Strain Gauge System: Delivers consistent off-center load compensation with minimal creep and low temperature drift for dependable weight readings
Standard 300x300mm Platform Size: Optimized for platform dimensions up to 300 x 300 mm (11.8″ x 11.8″), preventing measurement errors caused by eccentric loading
Industry-Standard Mounting Footprint: Universal mounting patterns allow seamless drop-in replacement for existing SP2 4002 single point load cells and standard OEM scale frames
Target Applications
Bench Scales & Tabletop Scales: High-precision weighing for commercial retail, laboratory, and inventory checkweighing stations
Packaging Machinery: Integrated weight verification, automated baggers, and continuous inline checkweighers
Automated Filling Machines: Accurate liquid, powder, and granular dispensing equipment across food, chemical, and pharmaceutical processing lines
Small Platform Scales & OEM Systems: Single-cell platform scales, medical equipment, counting scales, and process automation modules

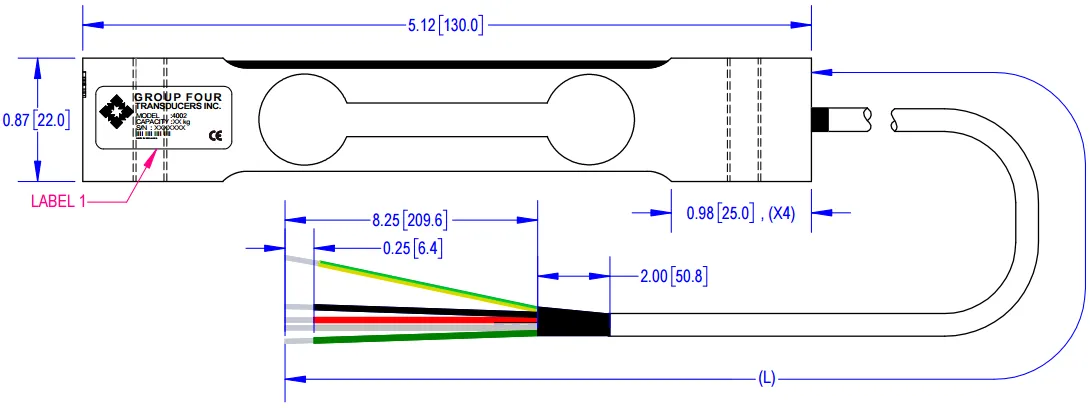

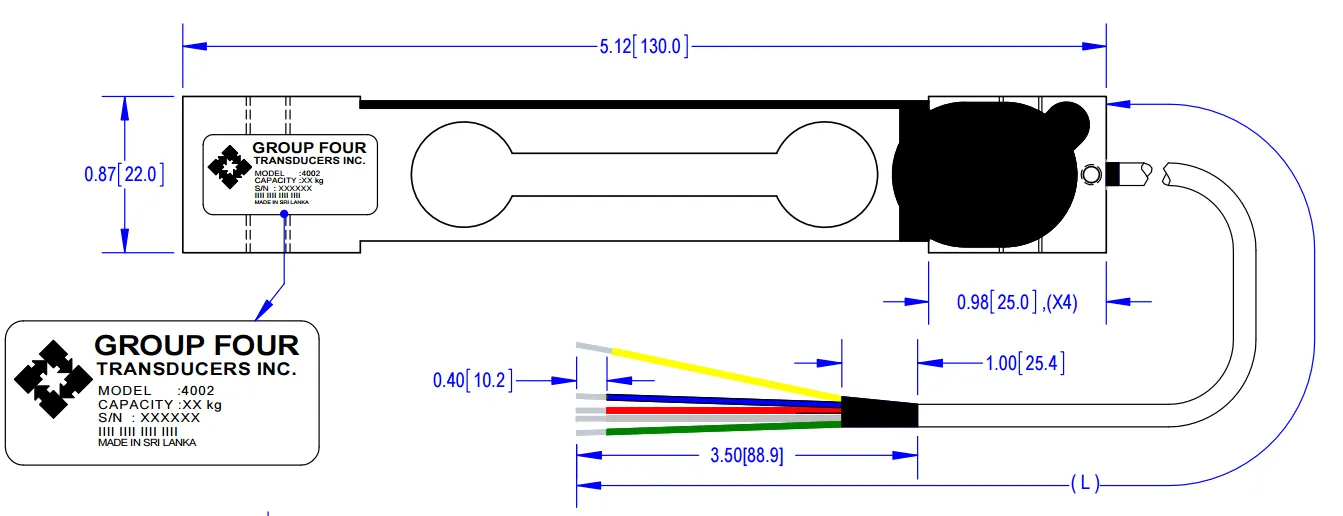

SP2 4002 Single Point Load Cell Outline Dimensions
Wiring
Specifications
| Model | 4002 | |||
|---|---|---|---|---|
| Capacities | kg | 6, 15 | 5, 10, 30, 50 | |
| Non-Linearity | mV/V | ≤±0.02 | ||
| Hysteresis | %FS | ≤±0.02 | ||
| Combined Error | %FS | ≤±0.02 | ||
| Creep @ 30 min | %FS | ≤±0.02 | ||
| Zero Balance | %FS | ≤±5 | ||
| OCLS | ||||
| Max. Platform Size | in | 13.8×13.8 | ||
| Max. Off Center Distance | in | 4.87 | ||
| OCLS Error | %FS | ≤± 0.02 | ||
| TEMPERATURE EFFECT | ||||
| Output | %FS/10 °C | ≤± 0.04 | ||
| Zero | %FS/10 °C | ≤± 0.04 | ||
| TEMPERATURE RANGE | ||||
| Compensated | °C | -10… +40 | ||
| Operating | °C | -20… +65 | ||
| TERMINAL RESISTANCE | ||||
| Input | Ω | 410±30 | 390± 30 | |
| Output | Ω | 350±5 | 350±5 | |
| Excitation Voltage | VDC | 5 … 15 | ||
| Insulation Resistance @50VDC | MΩ | ≥5000 | ||
| Safe Overload Limit | %FS | 150 | ||
| Ultimate Load | %FS | 300 | ||
| Cable Type | 28 AWG 4 core gray cable with shield | |||
| Cable Length (L) | ft | 14 | ||
| Seal Type | IP67 | |||
| Element Material | Anodized Aluminum | |||
Part Numbers
| CAPACITY (KG) | PART NUMBER | CAPACITY (KG) | PART NUMBER |
|---|---|---|---|
| 6 | 4002-001-22 | 5 | 4002-023-22 |
| 15 | 4002-002-22 | 10 | 4002-015-22 |
| 30 | 4002-004-22 | ||
| 50 | 4002-007-22 |
