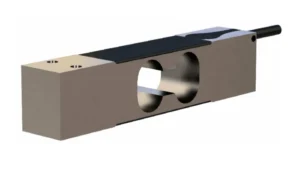

SP2SS (4066) Stainless Steel Single Point Load Cell IP67
IMPERIAL
33 – 220 lb
METRIC
15 – 100 kg
With the same mounting hole spacing as our 4002 series, this load cell could be used as a stainless steel alternative to the 4002. It is designed for wet environments commonly found in food handling applications like such as retail scales, portioning scales, packaging machines, and filling machines. It is also commonly used in various medical and veterinary scale applications.
View or download the datasheet below for full technical specifications and wiring diagrams.
Key Features
- Capacities from 15 kg to 100 kg.
- Stainless steel construction
- Environmental Protection IP67
- Low profile design
Applications
- Retail scales
- Bench scales
- Baby scales
- Packaging and filling machines.
Options
- mV/V/Ω Calibration.
- Digital outputs (i.e. 0-10 V, 4-20 mA,
RS485).
Outline Dimensions

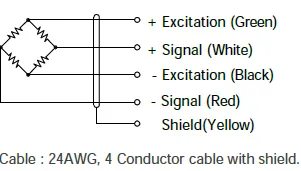

Wiring

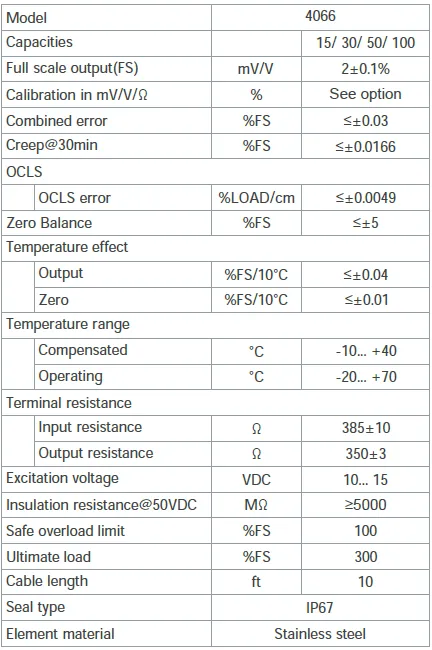

Specifications
| Model | 4066 | ||
|---|---|---|---|
| Capacities | 15 / 30 / 50 / 100 | ||
| Calibration in mV/V/Ω | % | See option | |
| Full scale output(FS) | mV/V | 2±0.1% | |
| Combined error | %FS | ≤±0.03 | |
| Creep @ 30min | %FS | ≤±0.0166 | |
| OCLS | |||
| OCLS error | %LOAD/cm | ≤±0.0049 | |
| Zero Balance | %FS | ≤±5 | |
| Temperature effect | |||
| Output | %FS/10°C | ≤±0.04 | |
| Zero | %FS/10°C | ≤±0.01 | |
| Temperature range | |||
| Compensated | °C | -10… +40 | |
| Operating | °C | -20… +70 | |
| Terminal resistance | |||
| Input resistance | Ω | 385±10 | |
| Output resistance | Ω | 350±3 | |
| Excitation voltage | VDC | 10 … 15 | |
| Insulation resistance @ 50V DC | MΩ | ≥5000 | |
| Safe overload limit | %FS | 100 | |
| Ultimate load | %FS | 300 | |
| Cable length | ft | 10 | |
| Seal type | IP67 | ||
| Element material | Stainless steel | ||
