SP4NP (4073) Nickle Plated Steel Single Point Load Cell IP67
IMPERIAL
22 – 220 lb
METRIC
10 – 100 kg
Single point load cell for use in bench scales, filling and packaging machines.
View or download the datasheet below for full technical specifications and wiring diagrams.
Key Features
- Capacities from 10 kg to 100 kg
- Alloy steel construction
- Environmental Protection IP67
- Maximum platform size up to 300×300 mm(10-30kg),400 x 400 mm(50-100kg)
- Integral mounting spacer
- More rugged than SP4-A aluminum version
Ideal Applications
- Retail scales
- Bench scales
- Conveyor scales
- Filling and packaging machines
- Ideal for rugged environment not suitable for aluminum load cells
Options
- mV/V/Ω Calibration for applications with multiple load cells.
- 4018 : With aluminum construction.
- 4023 : With stainless steel construction.

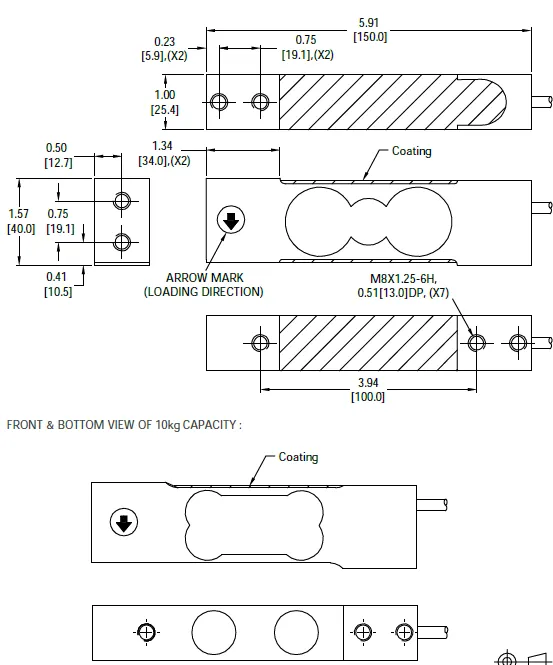

Outline Dimensions

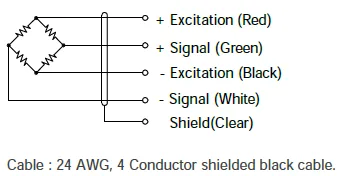

Wiring

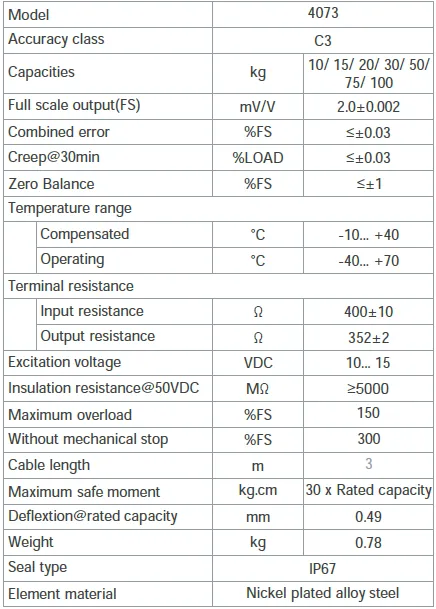

Specifications
| Model | 4073 | ||
|---|---|---|---|
| Accuracy class | C3 | ||
| Capacities | kg | 10 / 15 / 20 / 30 / 50 / 75 / 100 | |
| Full scale output(FS) | mV/V | 2.0±0.002 | |
| Combined error | %FS | ≤±0.03 | |
| Creep @ 30min | %FS | ≤±0.03 | |
| Zero balance | %FS | ≤±1 | |
| Temperature range | |||
| Compensated | °C | -10… +40 | |
| Operating | °C | -40… +70 | |
| Terminal resistance | |||
| Input resistance | Ω | 400±10 | |
| Output resistance | Ω | 352±2 | |
| Excitation voltage | VDC | 10 … 15 | |
| Insulation resistance @ 50V DC | MΩ | ≥5000 | |
| Maximum overload | %FS | 150 | |
| Without mechanical stop | %FS | 300 | |
| Cable length | m | 3 | |
| Maximum safe moment | kg.cm | 30 x Rated capacity | |
| Deflextion@rated capacity | mm | 0.49 | |
| Weight | kg | 0.78 | |
| Seal type | IP67 | ||
| Element material | Nickel plated alloy steel | ||
