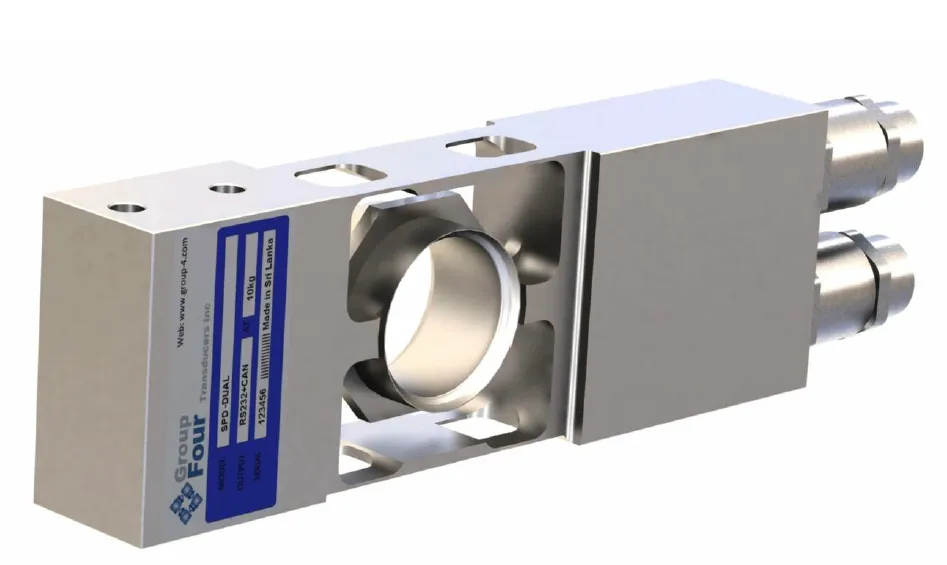

Digital Single Point Load Cell SPD-DUAL 4046D
Capacity: 10 to 50 kg
Digital single point load cell designed for high speed filling and check weighing applications. Serial Interface with an optional dual logical input and four logical output enables direct connection to the PLC. The stainless steel load cell is hermetically sealed and is ideal for use in heavy washdown applications.
Below you can view or download the datasheet of Digital Single Point Load Cell SPD-DUAL 4046D
Features
- Capacities from 10 to 50 kg
- Stainless steel construction
- Environmental Protection IP69k with complete hermetic sealing
- AD conversion rate up to 1200upd./sec
- The current drive per channel is ≤1A
- Over voltage, over current, EMC protection
- The total constant current through all channels is 3Amps (Power<0.66W)
- Any two output channels can be paralleled to drive 2A (The load cell itself can virtually be a (simple) PLC with outputs of 2 x 2Amps or 1 x
2Amps + 2 x 1 Amp etc) - Free professional software for setting up the digital load cell
- Maximum platform size up to 450 x 450 mm
Applications of Digital Single Point Load Cell SPD-DUAL 4046D
- Bench scales
- Conveyor scales
- Check weighers
- Filling plants
- Packaging machines
- Industrial process control

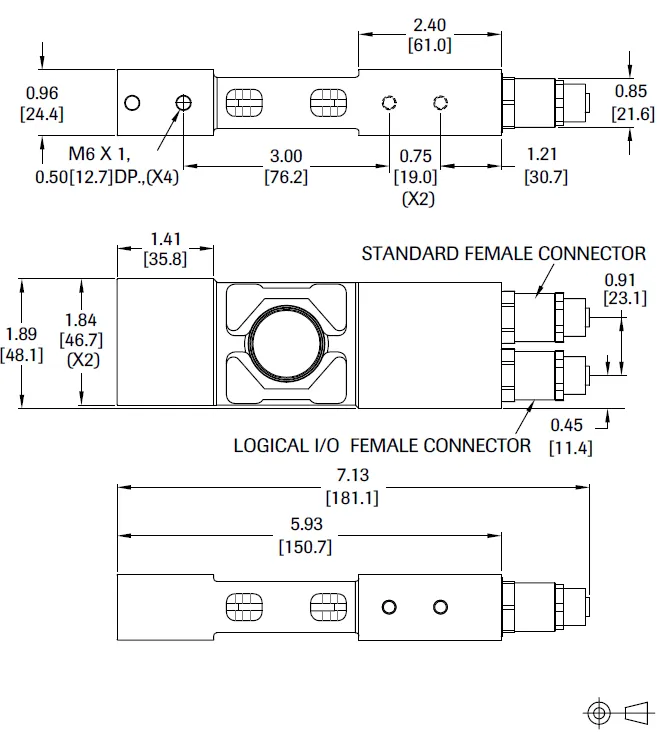

Outline Dimensions

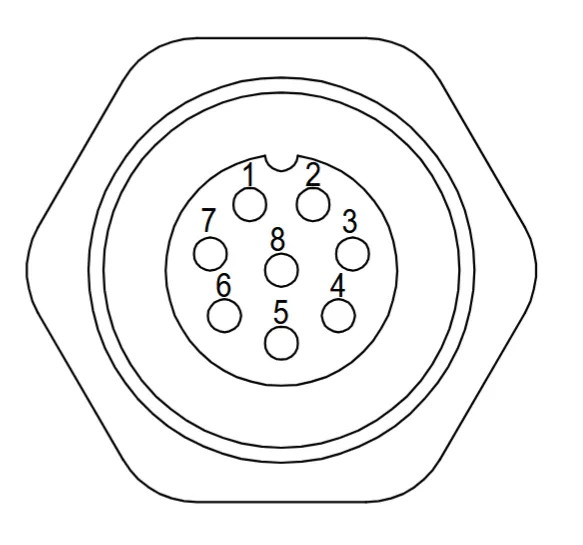

Pin Configuration
Wiring

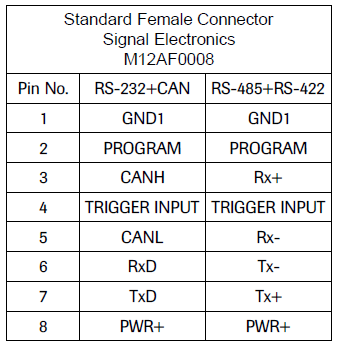

| Standard Female Connector Signal Electronics M12AF0008 | ||
|---|---|---|
| Pin No. | RS-232+CAN | RS-485+RS-422 |
| 1 | GND1 | GND1 |
| 2 | PROGRAM | PROGRAM |
| 3 | CANH | Rx+ |
| 4 | TRIGGER INPUT | TRIGGER INPUT |
| 5 | CANL | Rx- |
| 6 | RxD | Tx- |
| 7 | TxD | Tx+ |
| 8 | PWR+ | PWR+ |

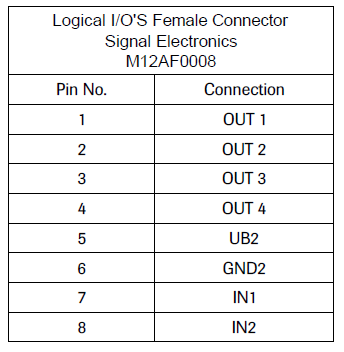

| Logical I/O’S Female Connector Signal Electronics M12AF0008 | |
|---|---|
| Pin No. | Connection |
| 1 | OUT 1 |
| 2 | OUT 2 |
| 3 | OUT 3 |
| 4 | OUT 4 |
| 5 | UB2 |
| 6 | GND2 |
| 7 | IN1 |
| 8 | IN2 |

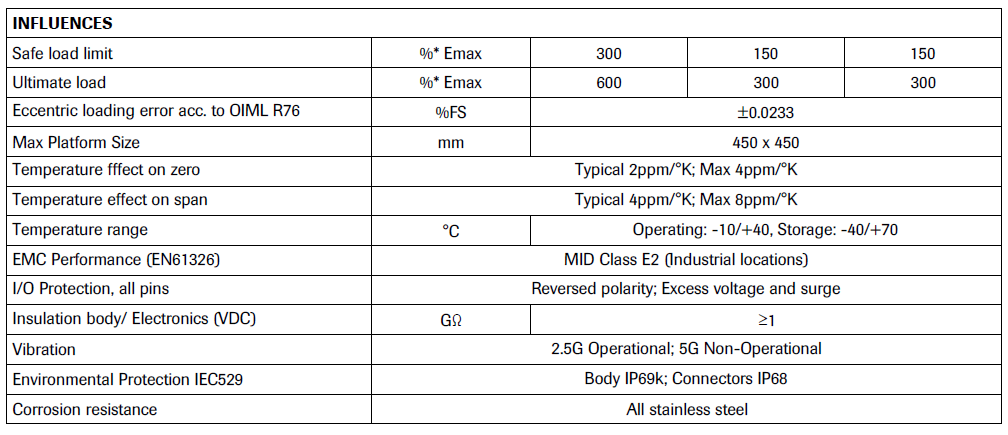

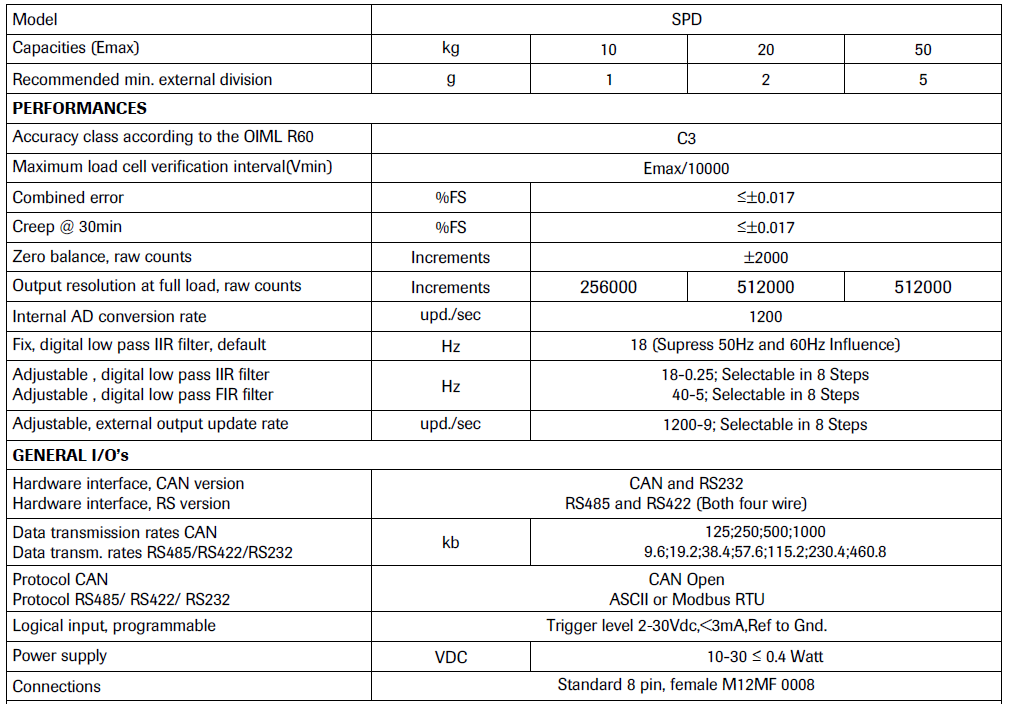

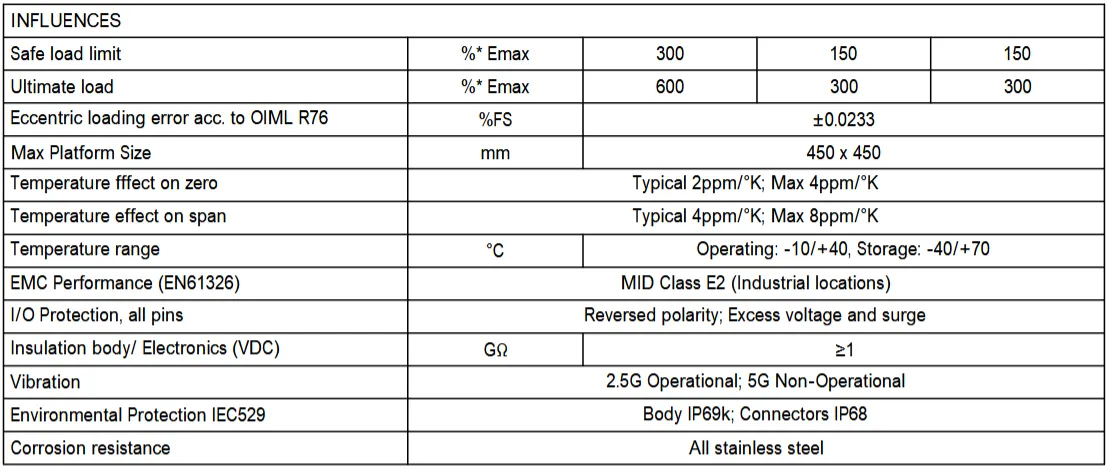

Specifications
