Digital Single Point Load Cell SPF5 4086D
IMPERIAL
22 – 110 lb
METRIC
10 – 50 kg

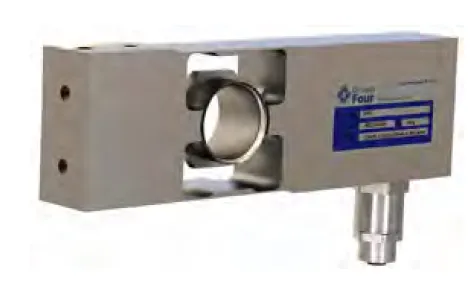

Digital single point load cell designed for high speed filling and check weighing applications. The stainless steel load cell is hermetically sealed and is ideal for use in heavy washdown applications.
View or download the Digital Single Point Load Cell SPF5 4086D datasheet below for full technical specifications and wiring diagrams.
Features
- Capacities from 10 to 50 kg.
- Stainless steel construction.
- Accuracy class C3 and C6.
- Environmental Protection IP69k with complete hermetic sealing.
- AD conversion rate up to 1200upd./sec.
- Free professional software for setting up the digital load cell.
- Maximum platform size up to 450 x 450 mm.
Applications of Digital Single Point Load Cell SPF5 4086D
- Bench scales, conveyor scales, check weighers, filling plants, packaging machines and industrial process control.
Approvals / Certifications
- OIML Certificate of conformity for accuracy class C7. Certificate No. R60/2000-DK3-17.02
Options
- Optional spacer set.

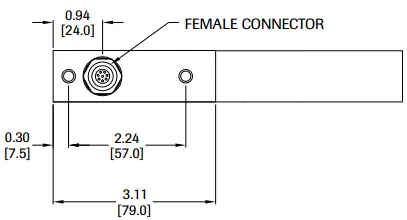

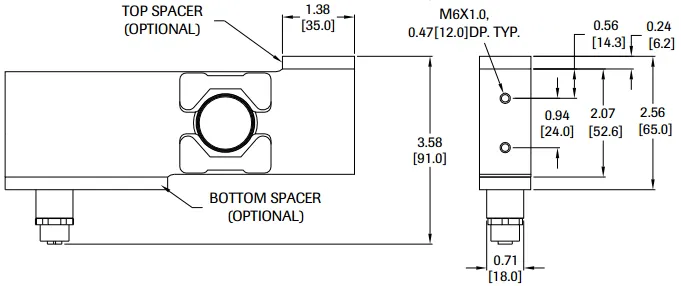

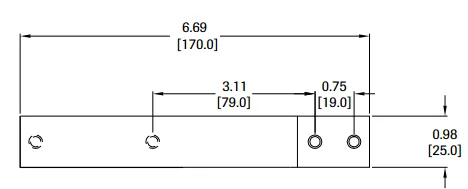

Outline Dimensions
Wiring
| Female Connector Signal Electronics M12AF0008 | ||
|---|---|---|
| Pin No. | RS-232 & CANbus | RS-422/-485 |
| 1 | GND1 | GND1 |
| 2 | PROGRAM | PROGRAM |
| 3 | CANH | Rx+ |
| 4 | TRIGGER INPUT | TRIGGER INPUT |
| 5 | CANL | Rx- |
| 6 | RxD | Tx- |
| 7 | TxD | Tx+ |
| 8 | PWR+ | PWR+ |
Pin Configuration

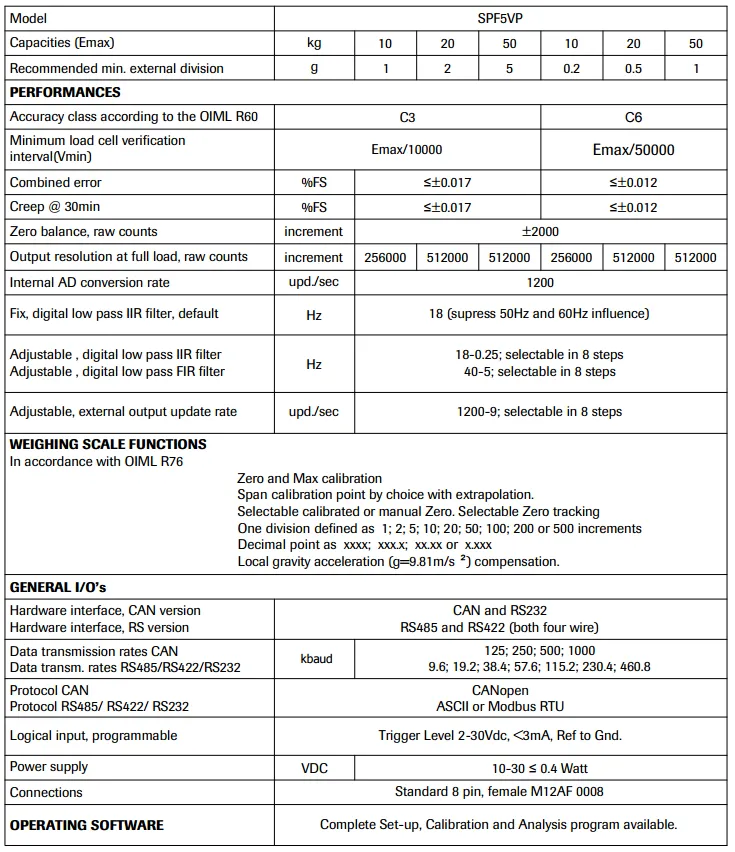

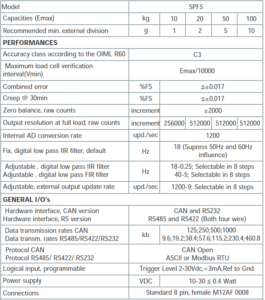

Specifications
| Model | SPF5VP | ||||||
|---|---|---|---|---|---|---|---|
| Capacities (Emax) | kg | 10 | 20 | 50 | 10 | 20 | 50 |
| Recommended min. external division | g | 1 | 2 | 5 | 0.2 | 0.5 | 1 |
| PERFORMANCES | |||||||
| Accuracy class according to the OIML R60 | C3 | C6 | |||||
| Minimum load cell verification interval (Vmin) | Emax/10000 | Emax/50000 | |||||
| Combined Error | %FS | ≤±0.017 | ≤±0.012 | ||||
| Creep Error @ 30min | %FS | ≤±0.017 | ≤±0.012 | ||||
| Zero Balance, raw counts | increments | ±2000 | |||||
| Output resolution at full load, raw counts | increments | 256000 | 512000 | 512000 | 256000 | 512000 | 512000 |
| Internal AD conversion rate | upd./sec | 1200 | |||||
| Fix, Digital Low Pass IIR Filter, Default | Hz | 18 (Supress 50Hz and 60Hz Influence) | |||||
| Adjustable , Digital Low Pass IIR Filter Adjustable , Digital Low Pass FIR Filter | Hz | 18-0.25; selectable in 8 steps 40-5, selectable in 8 steps | |||||
| Adjustable, External Output Update Rate | upd./sec | 1200-9; Selectable in 8 Steps | |||||
| WEIGHING SCALE FUNCTIONS In accordance with OIML R76 | Zero and Max calibration Span calibration point by choice with extrapolation. Selectable calibrated or manual Zero. Selectable Zero tracking One division defined as 1; 2; 5; 10; 20; 50; 100; 200 or 500 increments Decimal point as xxxx; xxx.x; xx.xx or x.xxx Local gravity acceleration (g=9.81m/s ²) compensation | ||||||
| GENERAL I/O’s | |||||||
| Hardware Interface, CAN Version Hardware Interface, RS Version | CAN and RS232 RS485 and RS422 (Both Four Wire) | ||||||
| Data transmission rate CAN Data transm, rates RS485/RS422/RS232 | kbaud | 125; 250; 500; 1000 9.6; 19.2; 38.4; 57.6; 115.2; 230.4; 460.8 | |||||
| Protocol CAN Protocol RS485/ RS422/RS232 | CAN Open ASCII or Modbus RTU | ||||||
| Logical Input, Programmable | Trigger level 2-30Vdc, <3mA, Ref to Gnd. | ||||||
| Power supply | VDC | 10-30 ≤ 0.4 Watt | |||||
| Connections | Standard 8 pin, female M12AF 0008 | ||||||

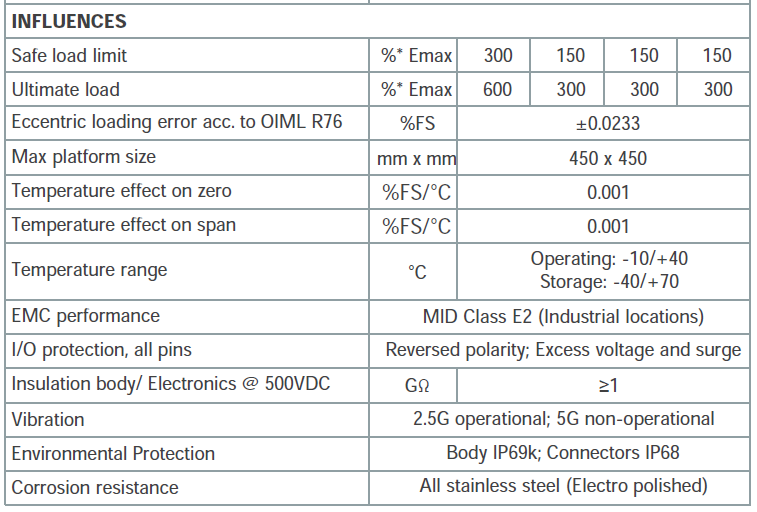

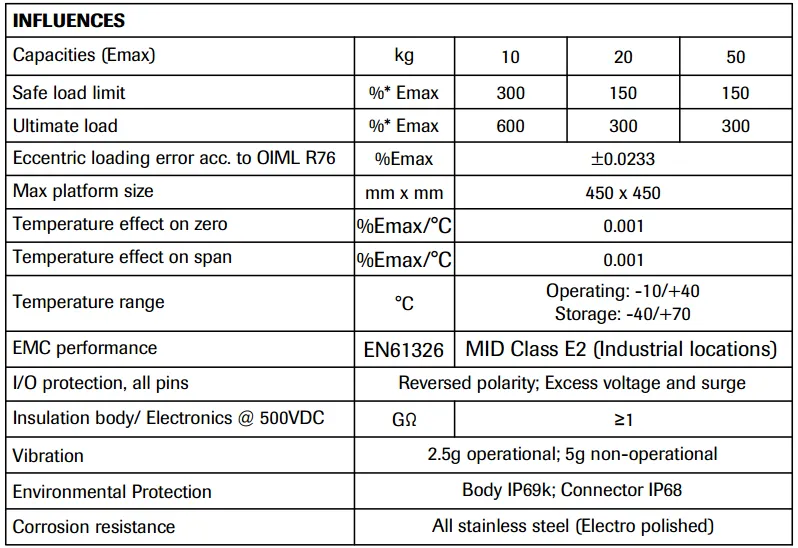

| INFLUENCES | |||||||
| Capacities (Emax) | kg | 10 | 20 | 50 | |||
| Safe Load Limit | %* Emax | 300 | 150 | 150 | |||
| Ultimate Load | %* Emax | 600 | 300 | 300 | |||
| Eccentric loading error acc. to OIML R76 | %Emax | ±0.0233 | |||||
| Max platform size | mm x mm | 450×450 | |||||
| Temperature Effect on Zero | %Emax/°C | 0.001 | |||||
| Temperature Effect on Span | %Emax/°C | 0.001 | |||||
| Temperature Range | °C | Operating: -10/+40 Storage: -40/+70 | |||||
| EMC performance | EN61326 | MID Class E2 (Industrial locations) | |||||
| I/O Protection, All Pins | Reversed Polarity; Excess Voltage and Surge | ||||||
| Isolation Body / Electronics at 500VDC | GΩ | ≥1 | |||||
| Vibration | 2.5G Operational; 5G Non-Operational | ||||||
| Environmental Protection | Body IP69k, Connectors IP68 | ||||||
| Corrosion resistance | All stainless steel (Electro polished) | ||||||
Part Numbers
| Capacity (kg) | Option | Part No. |
|---|---|---|
| 10 | Single IO (RS-232 & CANbus) Accuracy Class C3 | 4086D-000-08 |
| 20 | 4086D-001-08 | |
| 50 | 4086D-002-08 | |
| 10 | Single IO (RS-232 & CANbus) Accuracy Class C6 | 4086D-000-00 |
| 20 | 4086D-001-00 | |
| 50 | 4086D-002-00 | |
| 10 | Single IO (RS-422/-485) Accuracy Class C3 | 4086D-000-09 |
| 20 | 4086D-001-09 | |
| 50 | 4086D-002-09 | |
| 10 | Single IO (RS-422/-485) Accuracy Class C6 | 4086D-000-01 |
| 20 | 4086D-001-01 | |
| 50 | 4086D-002-01 |
