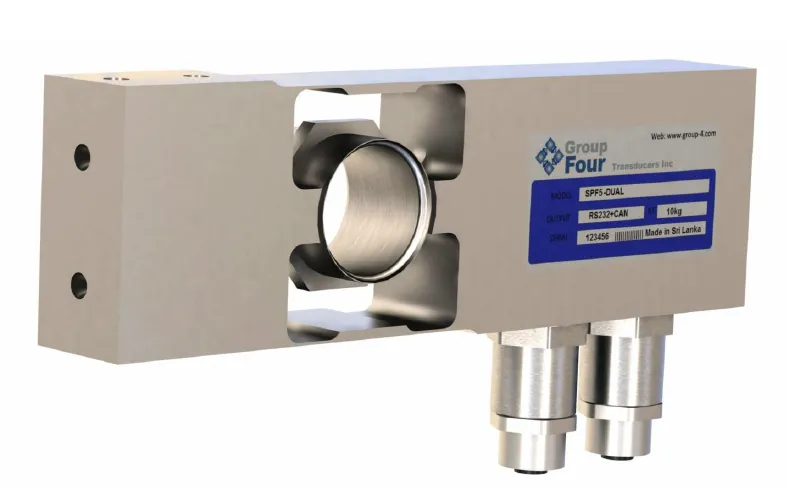

Digital Single Point Load Cell SPF5 Dual 4086D
IMPERIAL
22 – 110 lb
METRIC
10 – 50 kg
Digital single point load cell designed for high speed filling and check weighing applications. Serial Interface with an optional dual logical input and four logical output enables direct connection to the PLC. The stainless steel load cell is hermetically sealed and is ideal for use in heavy washdown applications.
View or download the Digital Single Point Load Cell SPF5 Dual 4086D datasheet below for full technical specifications and wiring diagrams.
Features
- Capacities from 10 to 50 kg
- Stainless steel construction
- Environmental Protection IP69k with complete hermetic sealing
- AD conversion rate up to 1200 upd./sec
- The current drive per channel is ≤1A
- Over voltage, over current, EMC protection.
- The total constant current through all channels is 3Amps (Power<0.66W)
- Any two output channels can be paralleled to drive 2A (The load cell itself can virtually be a (simple) PLC with outputs of 2 x 2Amps or 1 x 2Amps + 2 x 1 Amp etc)
- Free professional software for setting up the digital load cell.
- Maximum platform size up to 450 x 450 mm
Applications of Digital Single Point Load Cell SPF5 Dual 4086D
- Bench scales
- Conveyor scales
- Check weighers
- Filling plants
- Packaging machines
- Industrial process control

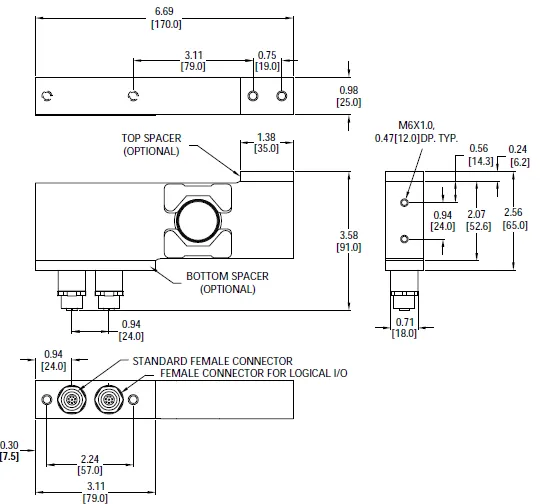

Outline Dimensions
Wiring

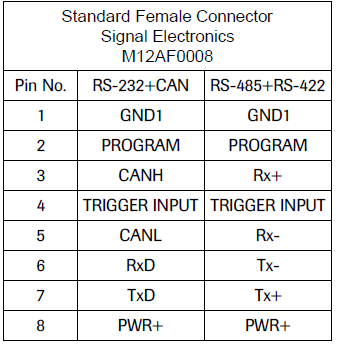

| Standard Female Connector Signal Electronics M12AF0008 | ||
|---|---|---|
| Pin No. | RS-232+CAN | RS-485+RS-422 |
| 1 | GND1 | GND1 |
| 2 | PROGRAM | PROGRAM |
| 3 | CANH | Rx+ |
| 4 | TRIGGER INPUT | TRIGGER INPUT |
| 5 | CANL | Rx- |
| 6 | RxD | Tx- |
| 7 | TxD | Tx+ |
| 8 | PWR+ | PWR+ |

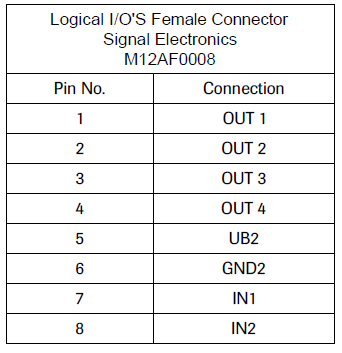

| Logical I/O’S Female Connector Signal Electronics M12AF0008 | |
|---|---|
| Pin No. | Connection |
| 1 | OUT 1 |
| 2 | OUT 2 |
| 3 | OUT 3 |
| 4 | OUT 4 |
| 5 | UB2 |
| 6 | GND2 |
| 7 | IN1 |
| 8 | IN2 |

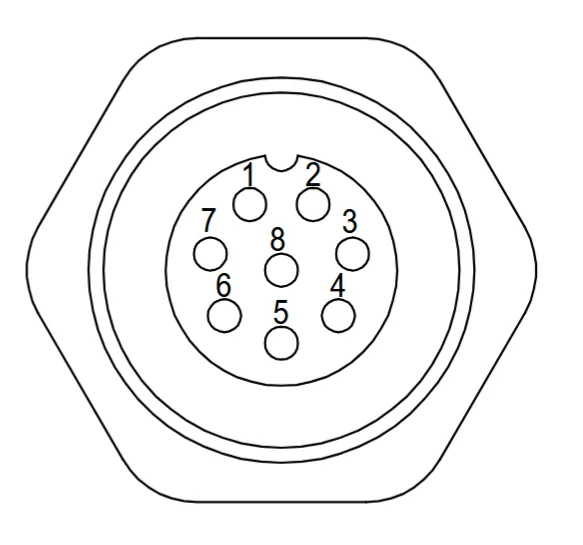

Pin Configuration

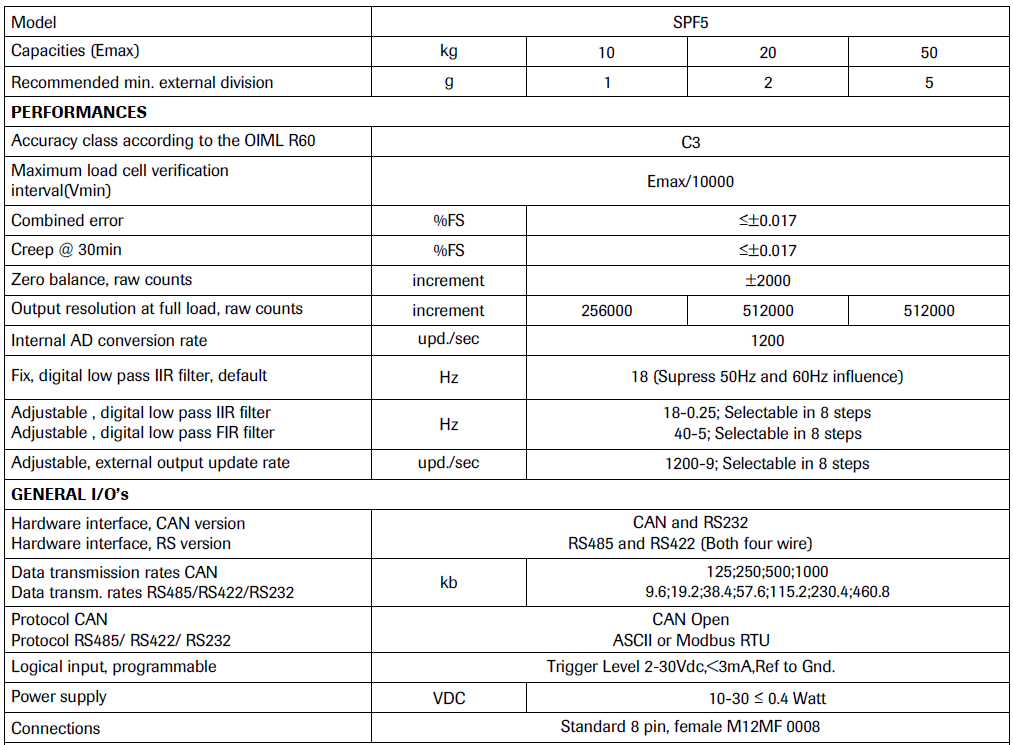

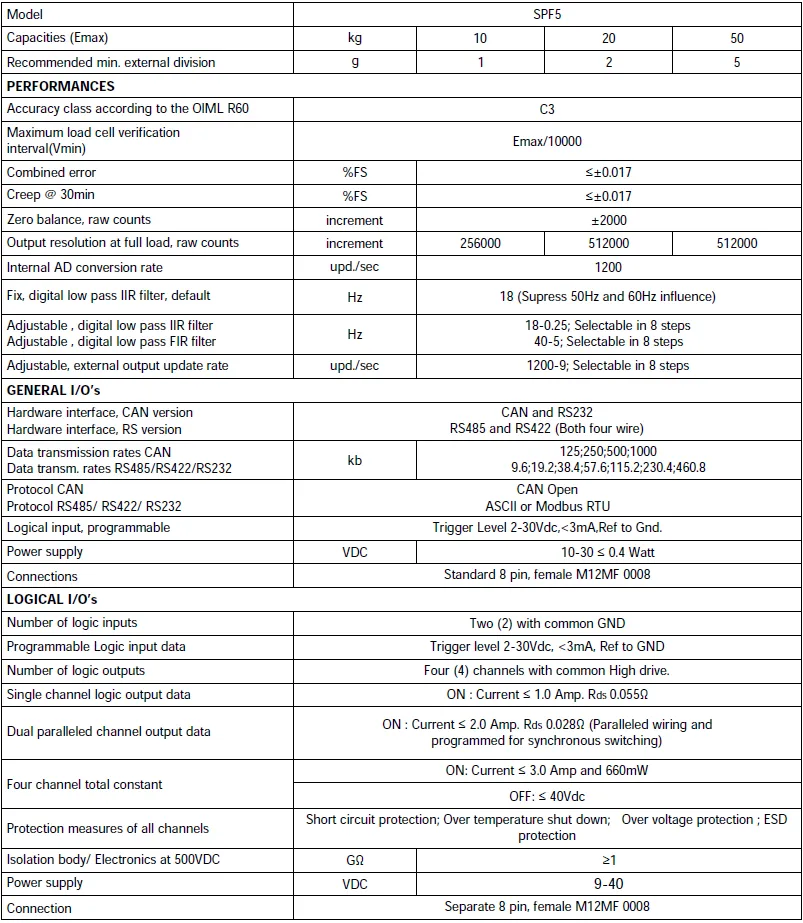

Specifications
| Model | SPF5 | |||
|---|---|---|---|---|
| Capacities (Emax) | kg | 10 | 20 | 50 |
| Recommended min. external division | g | 1 | 2 | 5 |
| PERFORMANCES | ||||
| Accuracy class | C3 | |||
| Minimum load cell verification interval (Vmin) | Emax/10000 | |||
| Combined Error | %FS | ≤±0.017 | ||
| Creep Error @ 30min | %FS | ≤±0.017 | ||
| Zero Balance, raw counts | increments | ±2000 | ||
| Output resolution at full load, raw counts | increments | 256000 | 512000 | 512000 |
| Internal AD conversion rate | upd./sec | 1200 | ||
| Fix, Digital Low Pass IIR Filter, Default | Hz | 18 (Supress 50Hz and 60Hz Influence) | ||
| Adjustable , Digital Low Pass IIR Filter Adjustable , Digital Low Pass FIR Filter | Hz | 18-0.25; selectable in 8 steps 40-5, selectable in 8 steps | ||
| Adjustable, External Output Update Rate | upd./sec | 1200-9; Selectable in 8 Steps | ||
| GENERAL I/O’s | ||||
| Hardware Interface, CAN Version Hardware Interface, RS Version | CAN and RS232 RS485 and RS422 (Both Four Wire) | |||
| Data transmission rate CAN Data transm, rates RS485/RS422/RS232 | kb | 125;250;500;1000 9.6;19.2;38.4;57.6;115.2;230.4;460.8 | ||
| Protocol CAN Protocol RS485/ RS422/RS232 | CAN Open ASCII or Modbus RTU | |||
| Logical Input, Programmable | Trigger Level 2-30Vdc,<3mA,Ref to Gnd. | |||
| Power supply | VDC | 10-30 ≤ 0.4 Watt | ||
| Connections | Standard 8 pin, female M12MF 0008 | |||

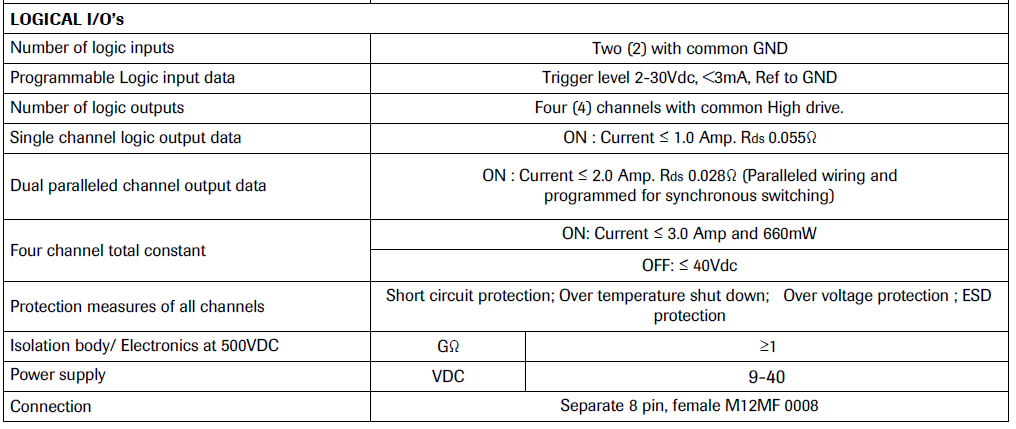

| LOGICAL I/O’s | ||||
| Number of logic inputs | Two (2) with common GND | |||
| Programmable Logic input data | Trigger level 2-30Vdc, <3mA, Ref to GND | |||
| Number of logic outputs | Four (4) channels with common High drive | |||
| Single channel logic output data | ON : Current ≤ 1.0 Amp. Rds 0.055Ω | |||
| Dual paralleled channel output data | ON : Current ≤ 2.0 Amp. Rds 0.028Ω (Paralleled wiring and programmed for synchronous switching) | |||
| Four channel total constant | ON: Current ≤ 3.0 Amp and 660mW | |||
| OFF: ≤ 40Vdc | ||||
| Protection measures of all channels | Short circuit protection; Over temperature shut down; Over voltage protection ; ESD protection | |||
| Isolation Body/Electronics at 500VDC | GΩ | ≥1 | ||
| Power supply | VDC | 9-40 | ||
| Connection | Separate 8 pin, female M12MF 0008 | |||

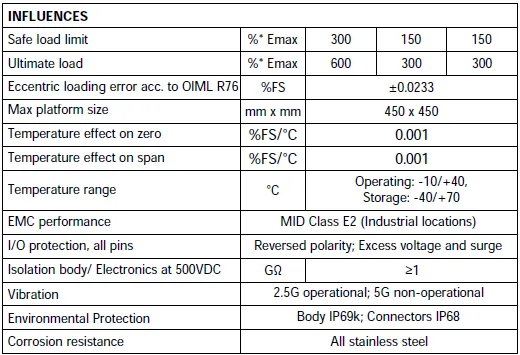

| INFLUENCES | ||||
| Safe Load Limit | %* Emax | 300 | 150 | 150 |
| Ultimate Load | %* Emax | 600 | 300 | 300 |
| Eccentric loading error acc. to OIML R76 | %FS | ±0.0233 | ||
| Max platform size | mm x mm | 450×450 | ||
| Temperature Effect on Zero | %FS/°C | 0.001 | ||
| Temperature Effect on Span | %FS/°C | 0.001 | ||
| Temperature Range | °C | Operating: -10/+40, Storage: -40/+70 | ||
| EMC performance | MID Class E2 (Industrial locations) | |||
| I/O Protection, All Pins | Reversed Polarity; Excess Voltage and Surge | |||
| Insulation body/ Electronics (VDC) | GΩ | ≥1 | ||
| Vibration | 2.5G Operational; 5G Non-Operational | |||
| Environmental Protection Per IEC 529 | Body IP69k, Connectors IP68 | |||
| Corrosion Resistance | All Stainless Steel | |||
Part Numbers
| Capacity(kg) | RS232+CAN | RS485+RS422 |
|---|---|---|
| 10 | 4086D-000-02 | 4086D-000-03 |
| 20 | 4086D-001-02 | 4086D-001-03 |
| 50 | 4086D-002-02 | 4086D-002-03 |
Dimensions and specifications of Digital Single Point Load Cell SPF5 Dual 4086D subject to change without notice
