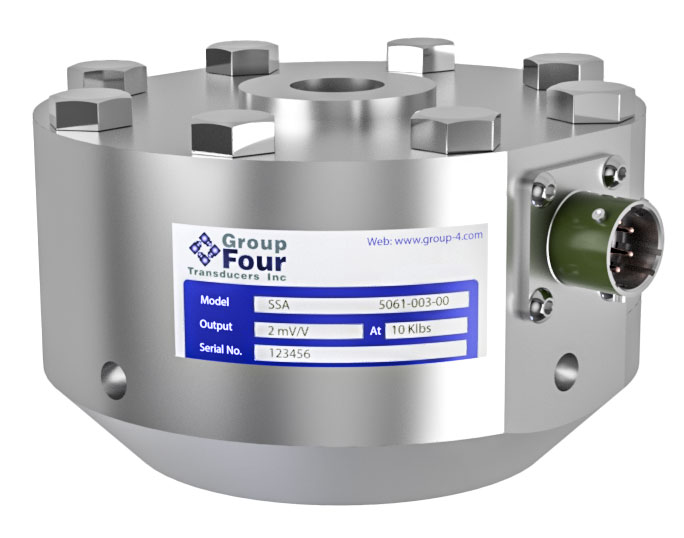

SSA (5065/5061) compression load cell IP67
Capacity: 0.25 to 50 klb
The SSA pancake (formerly LGP 380) is a low profile, shear spoke load cell ideal for measuring tension and compression forces where high accuracy and excellent side rejection is required.
Features
- Capacity (klb): .25, .5, 1, 2, 2.5, 3, 5, 10, 15, 20, 25, 50
- Environmental protection IP67
- Aluminum & Stainless Steel
applications
- Calibration grade load cell
- Ultra precision tension/compression testing
- Ideal for test stands where precision performance required
- Aircraft or automotive component testing
options
- SSA (.25-50klb) mating cable accessories
technical details of SSA (5065/5061) compression load cell

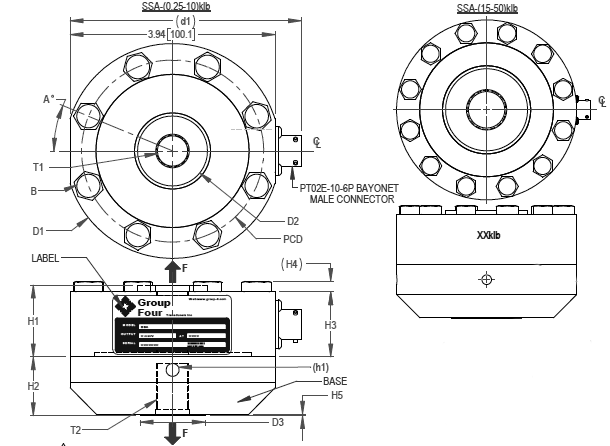

Outline Dimensions

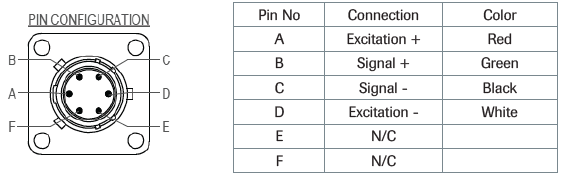

Wiring

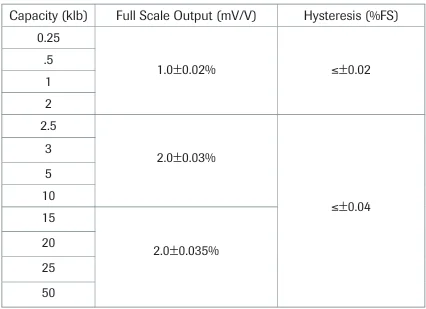

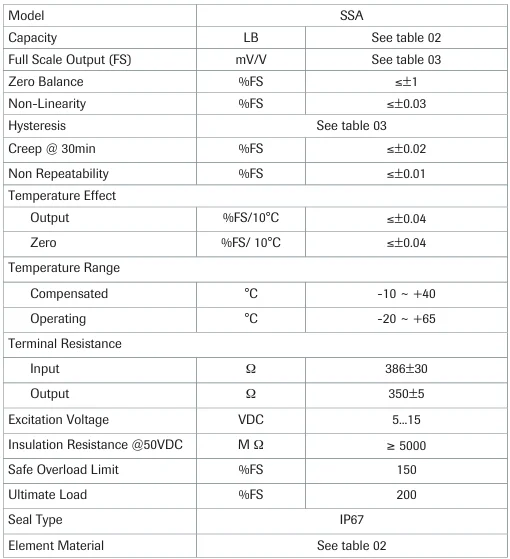

Specification

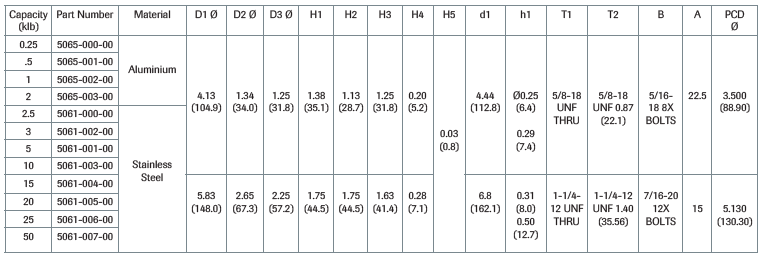

Part Numbers
