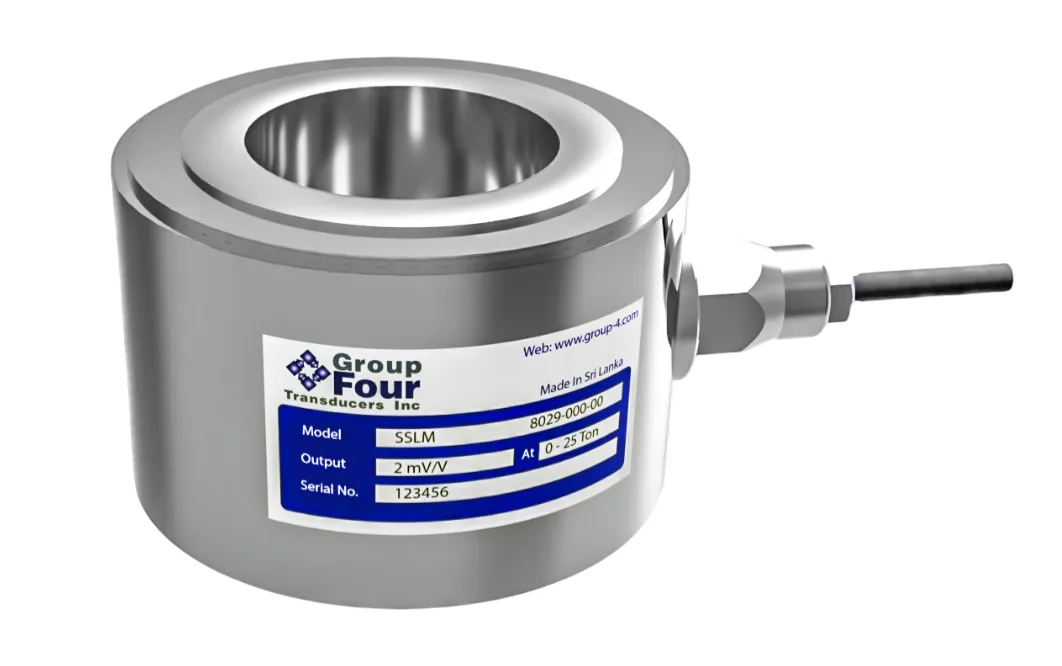

SSLM (8039) Donut Load Cell
IMPERIAL
55 – 121 klb
METRIC
25,000 – 55,000 kg
The SSLM is a compression ring type donut shape load cell. Its application ranges from force measurement, weight measurement, tank weighing, hopper weighing, cable tension measurement, bolt compression force and other industrial measurement applications.
View or download the datasheet below for full technical specifications and wiring diagrams.
Key Features
- Capacity: 25 & 55 ton
- Stainless Steel construction
- Environmental Protection IP69
- Low-profile design
Ideal Applications
- Force Measurement
- Tank weighing
- Silo weighing
- Hopper weighing
- Weighbridges
Outline Dimensions
Wiring and Color Code

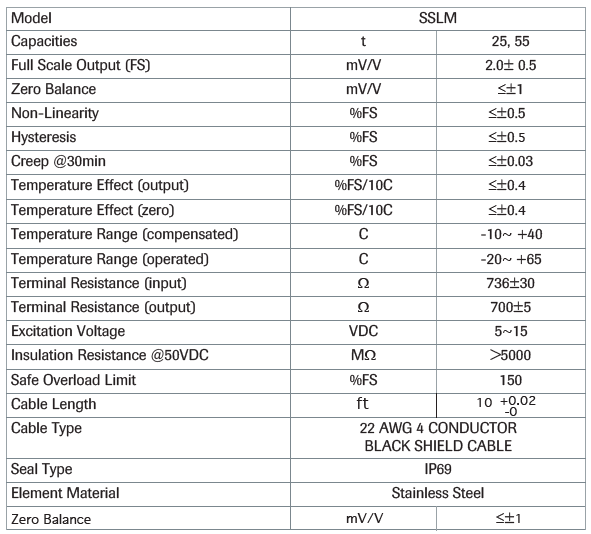

Specifications

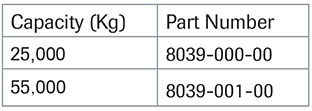

Part Numbers
| Capacity (kg) | Part Number |
|---|---|
| 25,000 | 8039-000-00 |
| 55,000 | 8039-001-00 |
