SSRLC (8027) Thru-Hole Sucker Rod Load Cell
IMPERIAL
30 – 50 klb
METRIC
13,608 – 22,680 kg

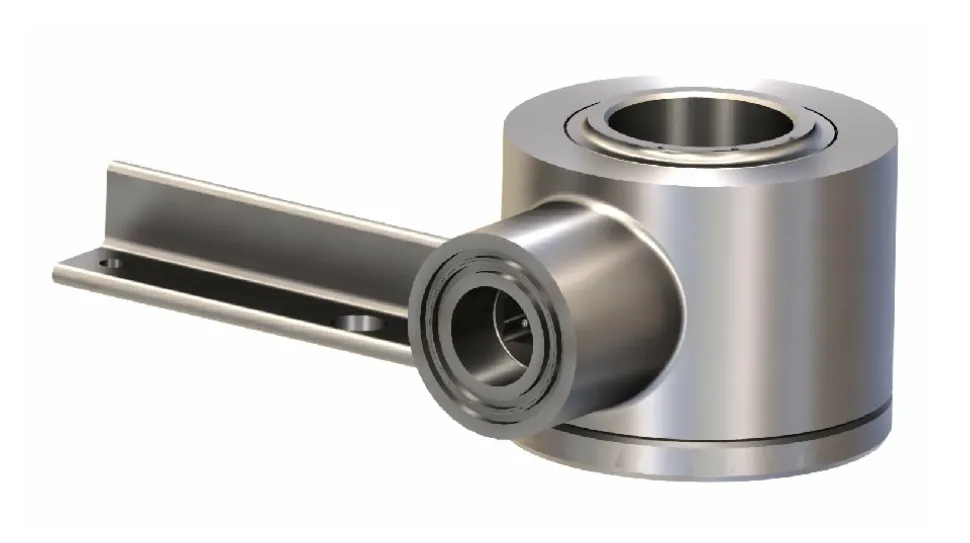

The type SSRLC is a stainless steel compression type load cell with complete hermetic sealing. It is a perfect fit for pump off control systems.
View or download the datasheet below for full technical specifications and wiring diagrams.
Key Features
- Capacity of 30klb, 50klb
- Stainless steel construction
- Environmental Protection IP68 with complete hermetic sealing
Ideal Applications
- Pump off control systems
Options
- Lightening protection
- Spherical washer load introduction kit
Outline Dimensions

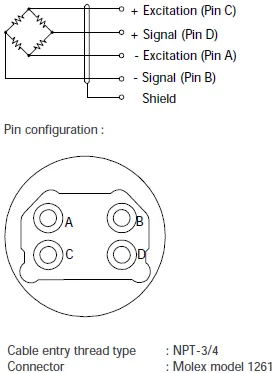

Pin Configuration
Specifications
| Model | 8027 | ||
|---|---|---|---|
| Capacities | klb | 30 / 50 | |
| Full Scale Output (FS) | mV/V | 2.01+0.03 | |
| Combined error | %FS | ≤±0.5 | |
| Zero Balance | %FS | ≤±1 | |
| Temperature Effect | |||
| Output | %LOAD/°F | ≤±0.002 | |
| Zero | %FS/°F | ≤±0.002 | |
| Temperature Range | |||
| Compensated | °F | 0… +150 | |
| Operated | °F | -40… +180 | |
| Terminal Resistance | |||
| Input resistance | Ω | 700±25 | |
| Output resistance | Ω | 700±5 | |
| Excitation Voltage | VDC | 15 | |
| Insulation Resistance @50VDC | MΩ | ≥5000 | |
| Static overload capacity | %FS | 150 | |
| Seal type | IP68 | ||
| Element Material | Stainless Steel | ||
Part Numbers
| Capacity (klb) | Part Number |
|---|---|
| 30 | 8027-000-00 |
| 50 | 8027-001-01 |
