STD (4050) Stainless Steel Single Point Load Cell IP67
IMPERIAL
25 – 250 lb
METRIC
11.3 – 113.3 kg

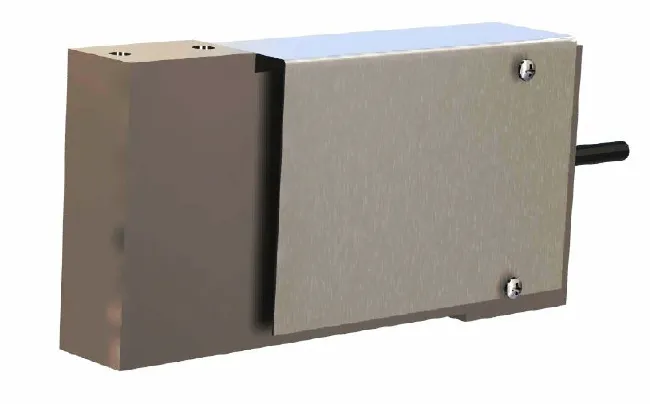

The type STD is a stainless steel single point load cell.
View or download the datasheet below for full technical specifications and wiring diagrams.
Key Features
- Capacities from 25lb to 250lb
- Stainless steel construction
- Environmental protection IP67
Ideal Applications
- Single point platform scales
- Belt conveyor scales
- Bench and counting scales
- Hopper scales and netweighing
- Check weighing scales.
Options
- Plated steel version
- mV/V/Ω calibration for applications with multiple loadcells
Outline Dimensions
Wiring

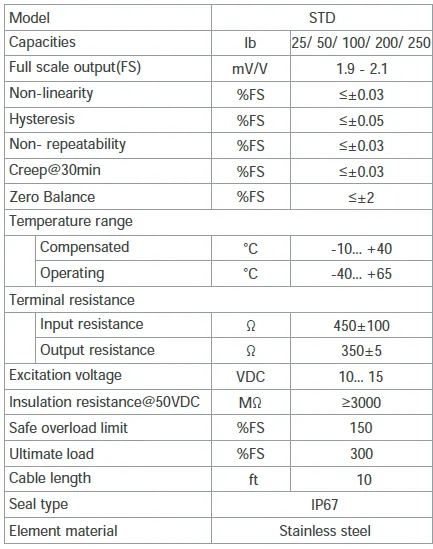

Specifications
| Model | STD | ||
|---|---|---|---|
| Capacities | lb | 25 / 50 / 100 / 200 / 250 | |
| Full scale output (FS) | mV/V | 1.9 – 2.1 | |
| Non-linearity | %FS | ≤±0.03 | |
| Hysteresis | %FS | ≤±0.05 | |
| Non-repeatability | %FS | ≤±0.03 | |
| Creep @ 30min | %FS | ≤±0.03 | |
| Zero balance | %FS | ≤±2 | |
| Temperature range | |||
| Compensated | °C | -10… +40 | |
| Operating | °C | -40… +65 | |
| Terminal resistance | |||
| Input resistance | Ω | 450±100 | |
| Output resistance | Ω | 350±5 | |
| Excitation voltage | VDC | 10 … 15 | |
| Insulation resistance @ 50V DC | MΩ | ≥3000 | |
| Safe overload limit | %FS | 150 | |
| Ultimate load | %FS | 300 | |
| Cable length | ft | 10 | |
| Seal type | IP67 | ||
| Element material | Stainless steel | ||
Part Numbers
| Capacity(lb) | Part Number |
|---|---|
| 25 | 4050-000-00 |
| 50 | 4050-001-00 |
| 100 | 4050-002-00 |
| 200 | 4050-003-00 |
| 250 | 4050-004-00 |
