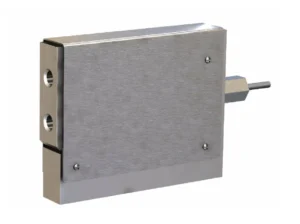

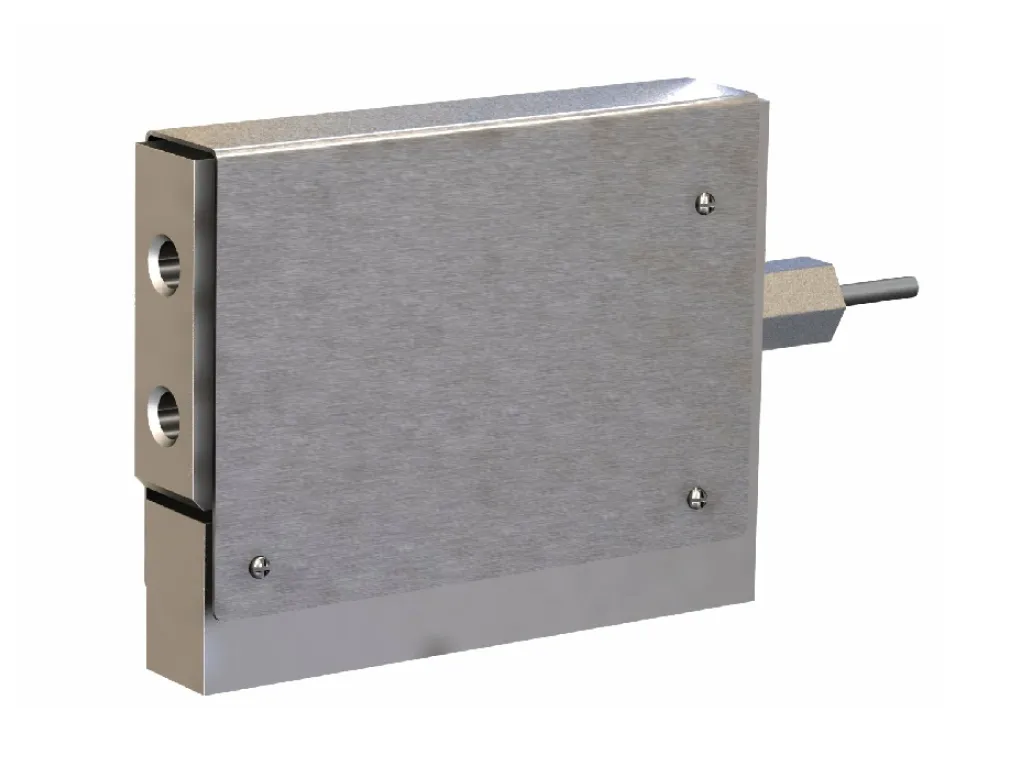

TBSP (4047) Stainless Steel Single Point Load Cell IP67

IMPERIAL

100 – 1000 lb

METRIC

45.3 – 453.5 kg

The 4047 is a stainless steel, single point load cell with a “triple beam” shear section. The advantage to of this design is the load cell is more resilient to side loads commonly found in conveyor scales and large bench scales. With the IP67 moisture protection, this load cell will perform consistently in outdoor and wet environments. This cell is NTEP approved and legal-for-trade.

View or download the datasheet below for full technical specifications and wiring diagrams.

Get a Quote Download TBSP 4047 datasheet

Key Features

Capacities from 100lb to 1000lb
Stainless steel construction
Environmental Protection IP67
OIML approval to C3, 3000 division, multiple error band
NTEP approval to Class III, 3000 division, multiple error band
HI-POT Test is performed at 600VAC for 1 sec

Ideal Applications

Conveyor scales, large bench scales.

Options

Hermetically sealed IP69k version.

Outline Dimensions

Wiring

Specifications

Model		4047
Accuracy class		C3
Maximum number of verification intervals		n	3000
Minimum load cell verification interval		Vmin	Emax/11500
Capacities		lb	100 / 250 / 500 / 750 / 1000
Full scale output(FS)		mV/V	2.000- 2.002
Combined error		%FS	≤±0.02
Non-Repeatability		%FS	≤±0.01
Creep @ 30min		%FS	≤±0.024
OCLS
	Max.offcenter distance	in	3
	OCLS error	mV/V	≤±0.0010@25lb
Zero Balance		%FS	≤±1
Temperature effect
	Output	%LOAD/°C	≤±0.0011
	Zero	%FS/°C	≤±0.0011
Temperature range
	Compensated	°C	-10… +40
	Operating	°C	-40… +85
Terminal resistance
	Input resistance	Ω	450±100
	Output resistance	Ω	350±5
Excitation voltage		VDC	10 … 15
Insulation resistance @ 50V DC		MΩ	≥5000
Safe overload limit		%FS	200
Ultimate load		%FS	300
Safe side load		%FS	100
Cable length		ft	11
Seal type		IP67
Element material		Stainless steel
Bolt torque		Nm	90
