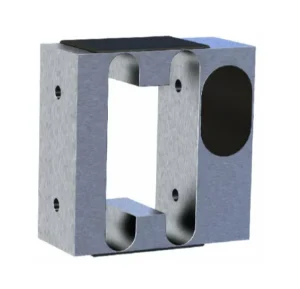

Anodized Aluminum Single Point Load Cell IP67
IMPERIAL
13 lb
METRIC
6 kg
The type TLC is an aluminum single point load cell ideal for use in Ishida packaging machines.
View or download the datasheet below for full technical specifications and wiring diagrams.
Features
- Capacity 6 kg
- Aluminum construction
- Environmental Protection IP67
Applications
- Packaging machines, Ishida packaging machines

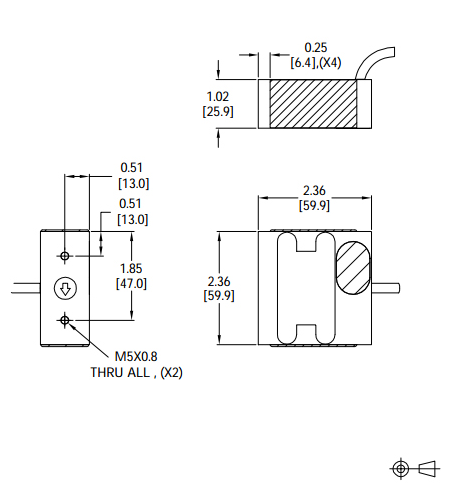

Outline Dimensions

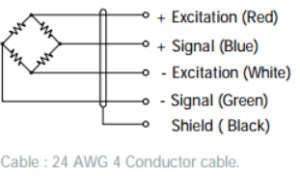

Wiring

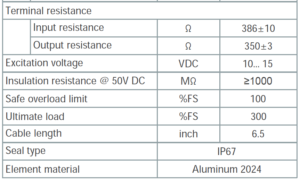

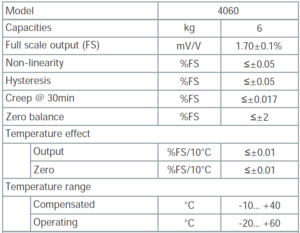

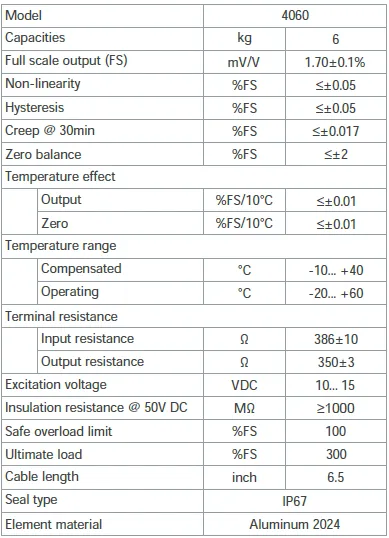

Specifications
| Model | 4060 | ||
|---|---|---|---|
| Capacity | kg | 6 | |
| Full scale output (FS) | mV/V | 1.70±0.1% | |
| Non-Linearity | %FS | ≤±0.05 | |
| Hysteresis | %FS | ≤±0.05 | |
| Creep @ 30min | %FS | ≤±0.017 | |
| Zero Balance | %FS | ≤±2 | |
| Temperature effect | |||
| Output | %FS/10°C | ≤±0.01 | |
| Zero | %FS/10°C | ≤±0.01 | |
| Temperature range | |||
| Compensated | °C | -10 … +40 | |
| Operating | °C | -20 …+60 | |
| Terminal resistance | |||
| Input resistance | Ω | 386±10 | |
| Output resistance | Ω | 350±3 | |
| Excitation voltage | VDC | 10 ~ 15 | |
| Insulation resistance @ 50V DC | MΩ | ≥1000 | |
| Safe overload limit | %FS | 100 | |
| Ultimate load | %FS | 300 | |
| Cable length | inch | 6.5 | |
| Seal type | IP67 | ||
| Element material | Aluminum 2024 | ||
Part Numbers
| Capacity / Cable Length | TLC 4060 Part Number |
|---|---|
| 6kg / 6.5inch | 4060-000-01 |
