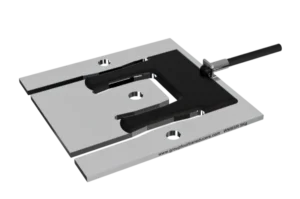

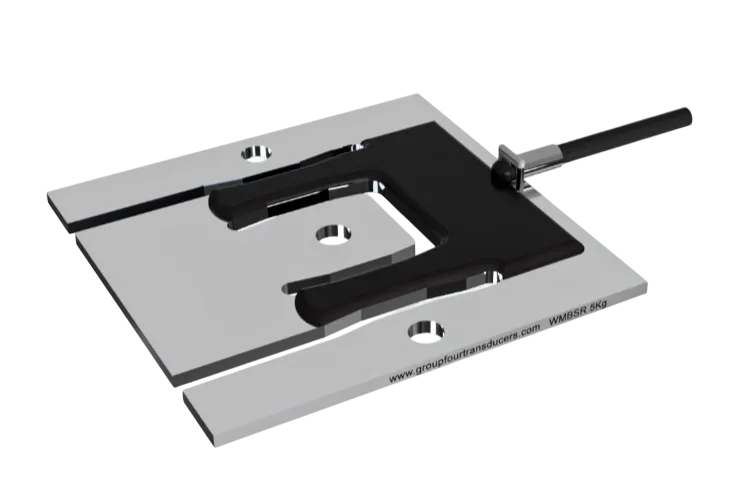

Aluminum Planar Beam Load Cell WMBSR (6002)
Capacity: 5kg & 10kg
The type WMBSR is a very low-profile planar beam load cell specially designed for all types of low-profile scales and applications.
Below you can view or download the datasheet of Aluminum Planar Beam Load Cell WMBSR 6002
Features
- Capacity: 5 & 10kg
- Aluminum construction
- Environmental Protection IP67
- Very low profile design
Applications Aluminum Planar Beam Load Cell WMBSR (6002)
- Compact scales
- Medical
- Bench & Floor scales
- Retail & Counting scales

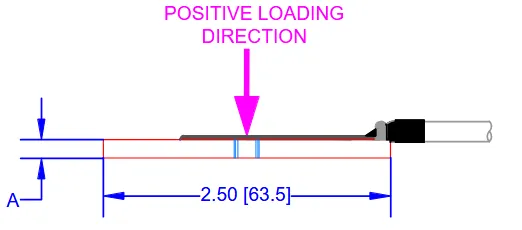

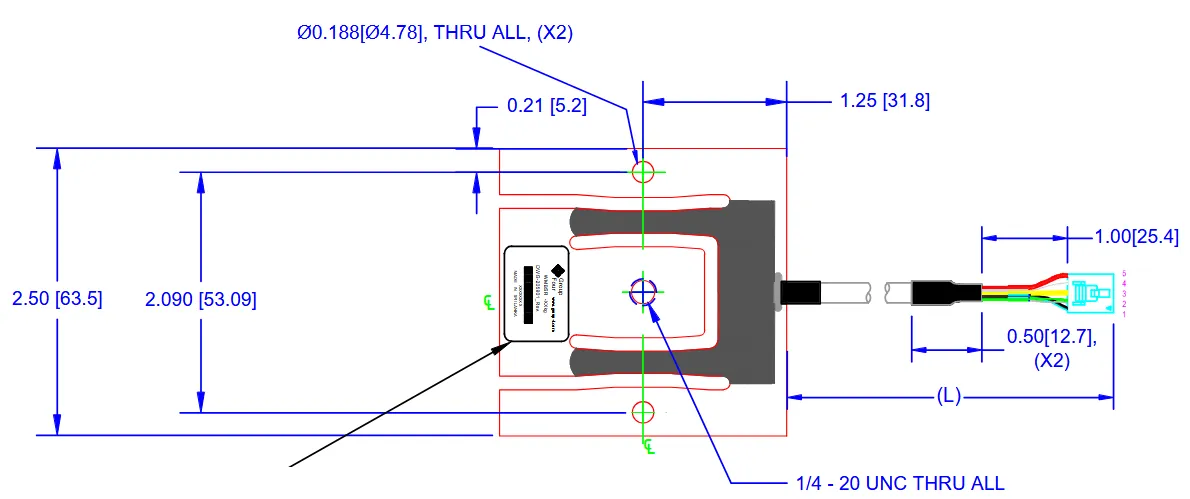

Outline Dimensions
| CAPACITY (kg) | A (INCH [mm]) |
DEFLECTION (INCH [mm]) |
GROUP FOUR P/N |
|---|---|---|---|
| 5 | 0.08 [2.0] | 0.019[0.47] | 6002-001-03 |
| 10 | 0.16 [4.1] | 0.010[0.26] | 6002-002-03 |

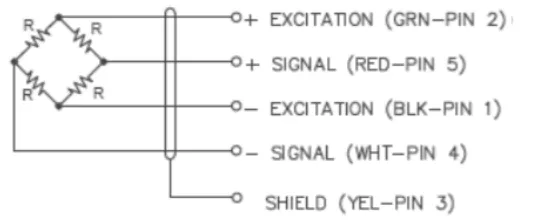

Wiring
Specifications
| Model | WMBSR | |
|---|---|---|
| Capacities | See Table 1 | |
| Full scale output (fs) | mV/V | 0.9±0.1% |
| Calibration in mV/V/ | % | <±0.05 |
| Combined error | %FS | <±0.02 |
| Non-linearity | %FS | <±0.02 |
| Hysteresis | %FS | <±0.02 |
| Non-repeatabilty | %FS | <±0.01 |
| Zero Balance | %FS | <±5 |
| Creep @ 30min | %FS | <±0.017 |
| Temperature Effect | ||
| Output | %FS/10°C | <±0.04 |
| Zero | %FS/10°C | <±0.04 |
| Temperature Range | ||
| Compensated | °C | -10… +40 |
| Operating | °C | -20… +65 |
| Temperature resistance | Ω | 350±50 |
| Input | Ω | 1182±50 |
| Output | Ω | 1000±3 |
| Excitation voltage | VDC | 5 ~ 15 |
| Insulation resistance @50VDC | M Ω | >5000 |
| Safe overload limit | %FS | 150 |
| Ultimate Load | %FS | 300 |
| Cable length (L) | in | +0.5 24 -0 |
| Cable type | 26 AWG, 4 conductor gray cable with shield | |
| Element material | Aluminum | |
| Seal type | IP67 | |
Part Numbers
| Capacity (Kg) | Part Number |
|---|---|
| 5 | 6002-001-03 |
| 10 | 6002-002-03 |
