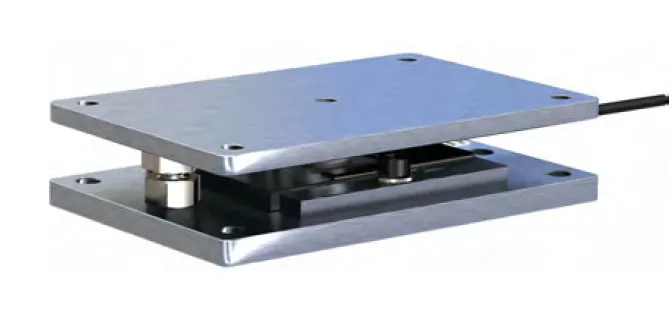

WMPB (6000WM3) Aluminum Weigh Module IP67
Capacity: 5kg-10kg, 37.5lb-200lb
The configurable WMPB is a low capacity weigh modules that is incredibly versatile. User options include total flexibility for specification of scale width, length and height. Multiple modules can easily be summed with direct connection to your measurement chain network, or simple digital or analog display.
Features
- Capacity range 5kg-10kg, 37.5lb-200lb
- Environmental protection
- Integrated overload protection
- Easy & quick installation, very flexible use
- Suitable for stationary use
- IP67
applications
- This kit could be used to make tanks, hoppers, vessels, machinery & much more into a scale unit. Real-time inventory monitoring.
options
- Optional load foot
technical details of WMPB (6000WM3) Weigh Module

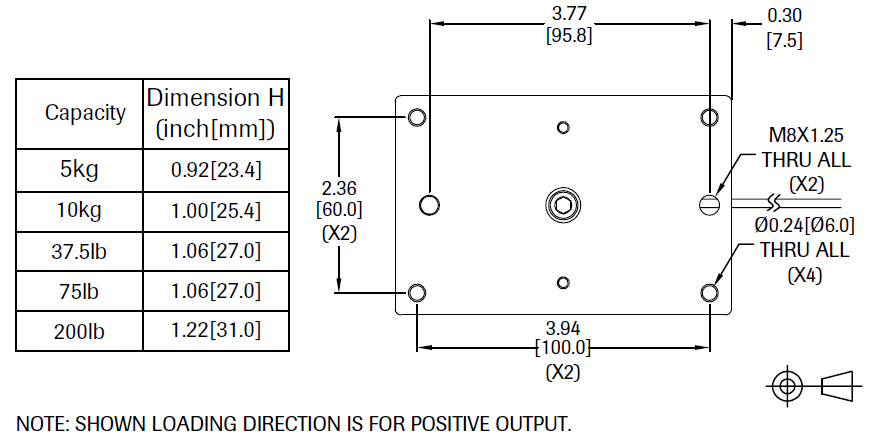

Outline Dimensions

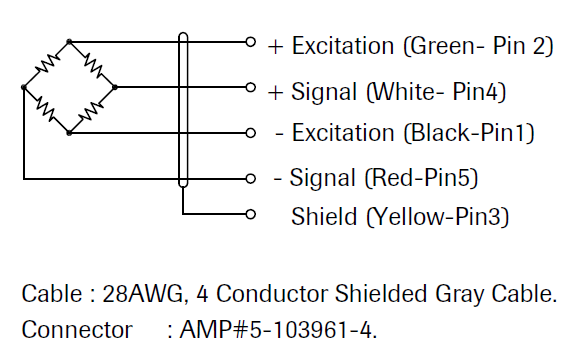

Wiring

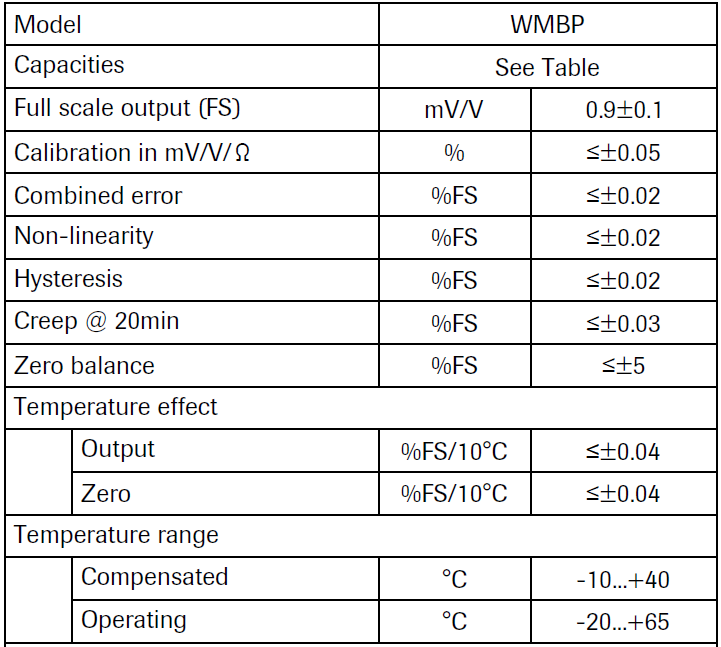

Specification
Part Numbers
