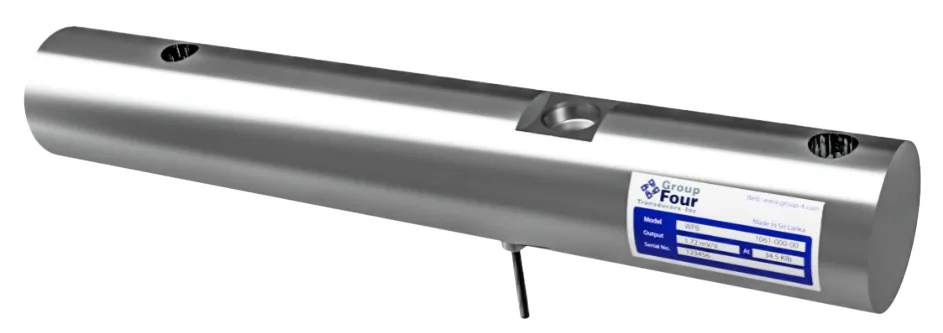

WPB (1061) Stainless Steel Weigh Bar IP68
IMPERIAL
34.5 klb
METRIC
15,649 kg
The WPB is a specially designed weigh bar. Ideal foruse in floor scales and weighing systems, grain carts, gravity carts, feed mixers, fertilizer and manure spreaders commonlyfound in the agriculture industry.
View or download the datasheet below for full technical specifications and wiring diagrams.
Key Features
- Capacity 34.5klb
- Stainless Steel Construction
- Special design for dirt repelling
- Environmental protection IP68
Ideal Applications
- Agriculture implants
- Grain carts
- Gravity carts
- Feed mixers
- Fertilizer and manure spreaders
- Wash down applications
- Floor scales
Outline Dimensions

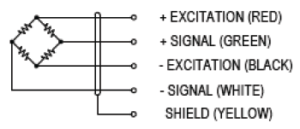

Wiring
Specifications
| Model | WPB | ||
|---|---|---|---|
| Capacity | klb | 34.5 | |
| Full scale output (FS) | mV/V | 1.72 ±1% | |
| Calibration in mV/V/Ω | % | ≤±0.05 | |
| Non-Linearity | %FS | ≤±0.15 | |
| Hysteresis | %FS | ≤±0.15 | |
| Creep@30min | %FS | ≤±0.03 | |
| Zero Balance | %FS | ≤±5 | |
| Temperature effect | |||
| Output | %FS/10°C | ≤±0.04 | |
| Zero | %FS/10°C | ≤±0.04 | |
| Temperature range | |||
| Compensated | °C | -10 … +40 | |
| Operating | °C | -20 …+65 | |
| Terminal resistance | |||
| Input resistance | Ω | 386±30 | |
| Output resistance | Ω | 350±5 | |
| Excitation voltage | VDC | 5 ~ 15 | |
| Insulation resistance @ 50V DC | MΩ | ≥5000 | |
| Safe overload limit | %FS | 150 | |
| Ultimate load | %FS | 250 | |
| Cable length | ft | 40.0 | |
| Cable Type | 22 AWG 4 Core Black PVC Cable with shield | ||
| Seal type | IP68 | ||
| Element material | Stainless Steel | ||
Part Numbers
| Capacities (klb) | Part Number |
|---|---|
| 34.5 | 1061-000-00 |
