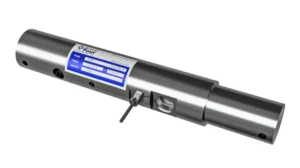

WPBR (1063) Stainless Steel Weigh Bar IP68
IMPERIAL
22.5 klb
METRIC
10,206 kg
The WPBR is a specially designed weigh bar. Ideal for use in floor scales and weighing systems, grain carts, gravity carts, feed mixers, fertilizer and manure spreaders commonly found in the agriculture industry.
View or download the datasheet below for full technical specifications and wiring diagrams.
Key Features
- Capacity 22.5klb
- Stainless Steel Construction
- Special design for dirt repelling
- Environmental protection IP68
Ideal Applications
- Agriculture implants
- Grain carts
- Gravity carts
- Feed mixers
- Fertilizer and manure spreaders
- Wash down applications
- Floor scales
Outline Dimensions
Wiring

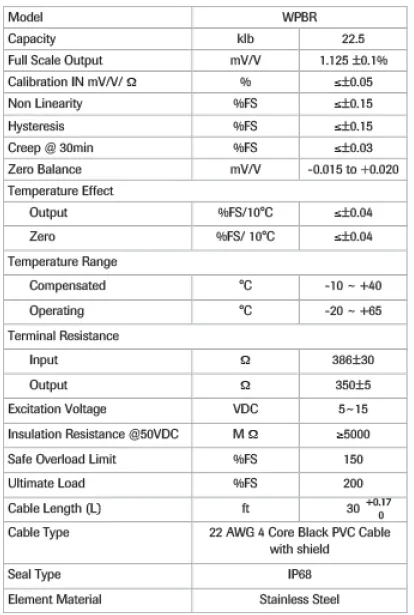

Specifications
| Model | WPBR | ||
|---|---|---|---|
| Capacity | klb | 22.5 | |
| Full scale output (FS) | mV/V | 1.125 ±0.1% | |
| Calibration in mV/V/Ω | % | ≤±0.05 | |
| Non-Linearity | %FS | ≤±0.15 | |
| Hysteresis | %FS | ≤±0.15 | |
| Creep@30min | %FS | ≤±0.03 | |
| Zero Balance | %FS | -0.015 to +0.020 | |
| Temperature effect | |||
| Output | %FS/10°C | ≤±0.04 | |
| Zero | %FS/10°C | ≤±0.04 | |
| Temperature range | |||
| Compensated | °C | -10 … +40 | |
| Operating | °C | -20 …+65 | |
| Terminal resistance | |||
| Input resistance | Ω | 386±30 | |
| Output resistance | Ω | 350±5 | |
| Excitation voltage | VDC | 5 ~ 15 | |
| Insulation resistance @ 50V DC | MΩ | ≥5000 | |
| Safe overload limit | %FS | 150 | |
| Ultimate load | %FS | 200 | |
| Cable length | ft | 30 | |
| Cable Type | 22 AWG 4 Core Shielded Black PVC Cable | ||
| Seal type | IP68 | ||
| Element material | Stainless Steel | ||
Part Numbers
| Capacity (klb) | Group Four Part Number |
|---|---|
| 22.5 | 1063-000-00 |
