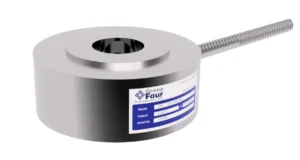

ZBC (5051) Stainless Steel Donut Load Cell IP67
IMPERIAL
75 – 100 klb
METRIC
34,019 – 45,359 kg
The ZBC is a donut load cell specially designed for the measurement compressive/tension forces and weight. Low form factor allows to use it in applications where there is little space for the load cell, such as bolt compression and tension measurements.
View or download the datasheet below for full technical specifications and wiring diagrams.
Key Features
- Capacities 75 & 100klbs
- Environmental protection IP67
- Stainless steel construction
Ideal Applications
- Tension/compression
- Force measurement
- Weight measurement
Options
- Cable – open or connector

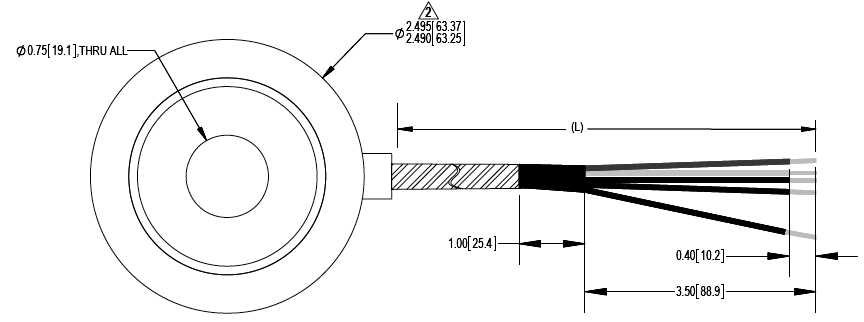

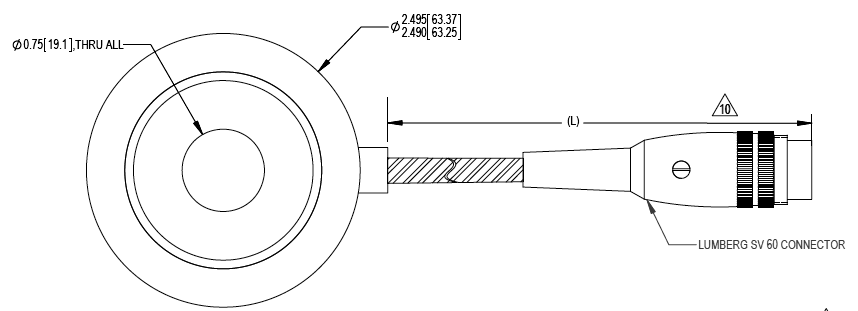

Outline Dimensions
Wiring and Pin Configuration

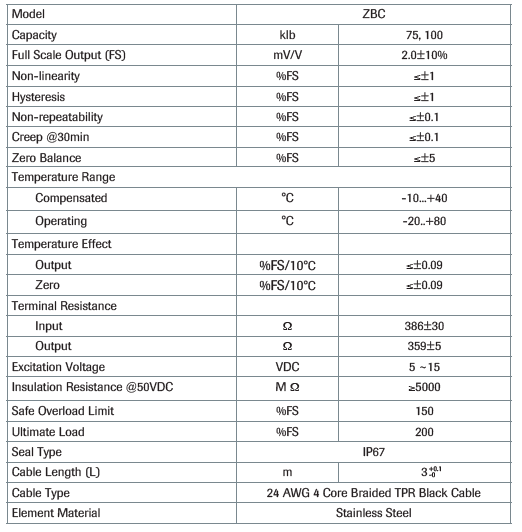

Specifications
| Model | 3010 | ||
|---|---|---|---|
| Capacities | klb | 75, 100 | |
| Full Scale Output (FS) | mV/V | 2.0±10% | |
| Non-linearity | %FS | ≤±1 | |
| Hysteresis | %FS | ≤±1 | |
| Non-repeatability | %FS | ≤±0.1 | |
| Creep @30min | %FS | ≤±0.1 | |
| Zero Balance | %FS | ≤±5 | |
| Temperature Effect | |||
| Output | %FS/10ºC | ≤±0.09 | |
| Zero | %FS/10ºC | ≤±0.09 | |
| Temperature Range | |||
| Compensated | ºC | -10… +40 | |
| Operating | ºC | -20..+80 | |
| Terminal Resistance | |||
| Input resistance | Ω | 386±30 | |
| Output resistance | Ω | 359±5 | |
| Excitation Voltage | VDC | 5 – 15 | |
| Insulation Resistance @50VDC | MΩ | ≥5000 | |
| Safe Overload Limit | %FS | 150 | |
| Ultimate Load | %FS | 200 | |
| Cable Type | 24 AWG 4 Core Braided TPR Black Cable | ||
| Cable Length | m | 3 | |
| Seal type | Environmentaly protected to IP67 | ||
| Element Material | Stainless Steel | ||
Part Numbers
Open Cable:
| Capacity (lb) | Group Four Part Number |
|---|---|
| 75,000 | 5051-000-01 |
| 100,000 | 5051-001-01 |
Connector Version:
| Capacity (lb) | Group Four Part Number |
|---|---|
| 75,000 | 5051-000-00 |
| 100,000 | 5051-001-00 |
