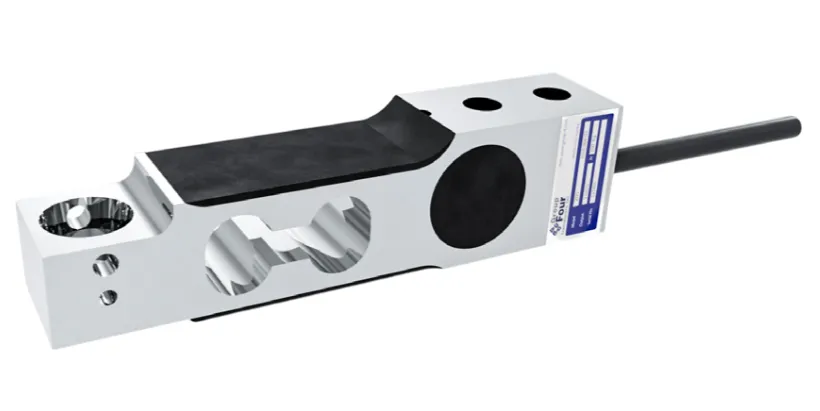

ZNS (1055) Stainless Steel Single Ended Beam
Capacity: 10 to 200 kg
The ZNS is a stainless steel single ended shear beam load cell ideal for use in floor scales, bench scales, tank weighing, hopper weighing and conveyor scales.
Features
- Stainless Steel construction
- Environmental Protection IP67
- Capacities from 10kg to 200kg
- Industry standard mounting dimensions
applications
- Floor scales
- Bench scales
- Tank weighing
- Hopper weighing
- Conveyor scales
technical details of ZNS (1055) Single Ended Beam

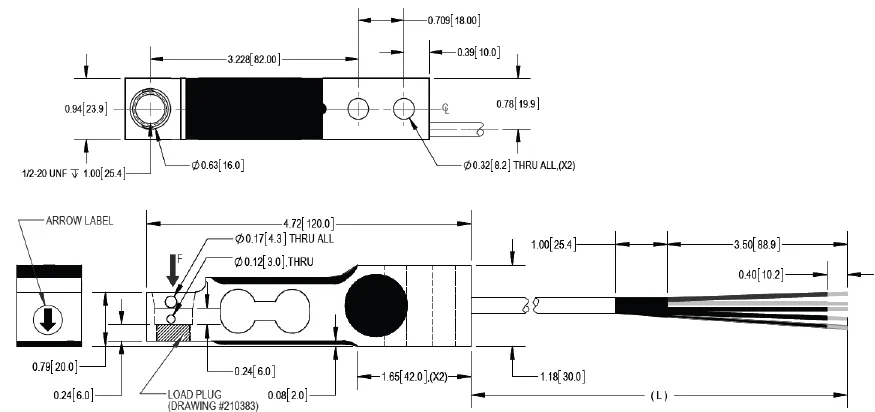

Outline Dimensions

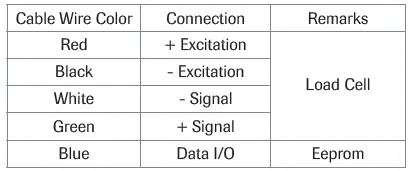

Wiring

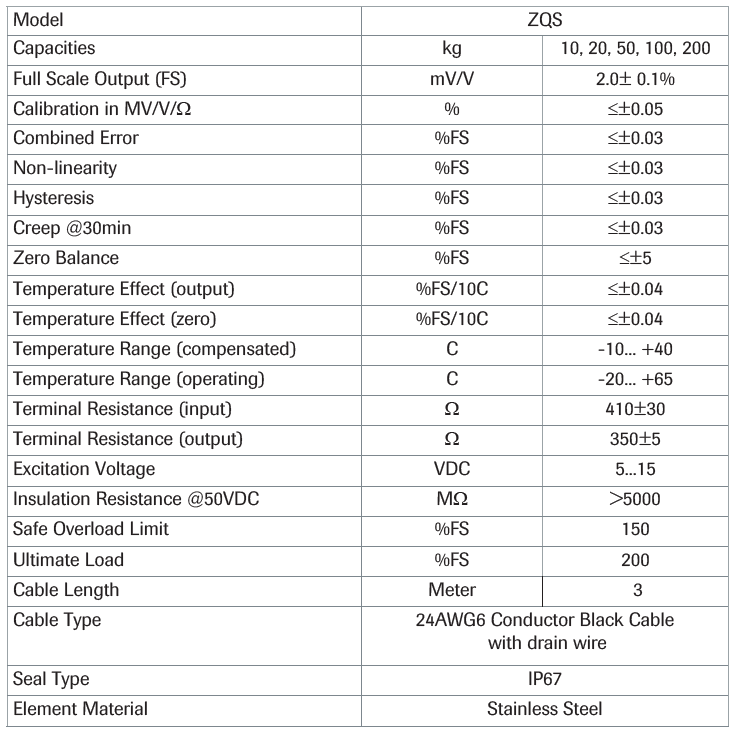

Specification

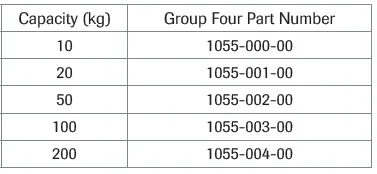

Part Numbers
