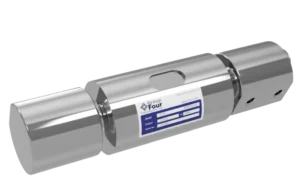

ZPSP (4099) Stainless Steel Single Point Load Cell IP69
IMPERIAL
22 – 44 lb
METRIC
10 – 20 kg

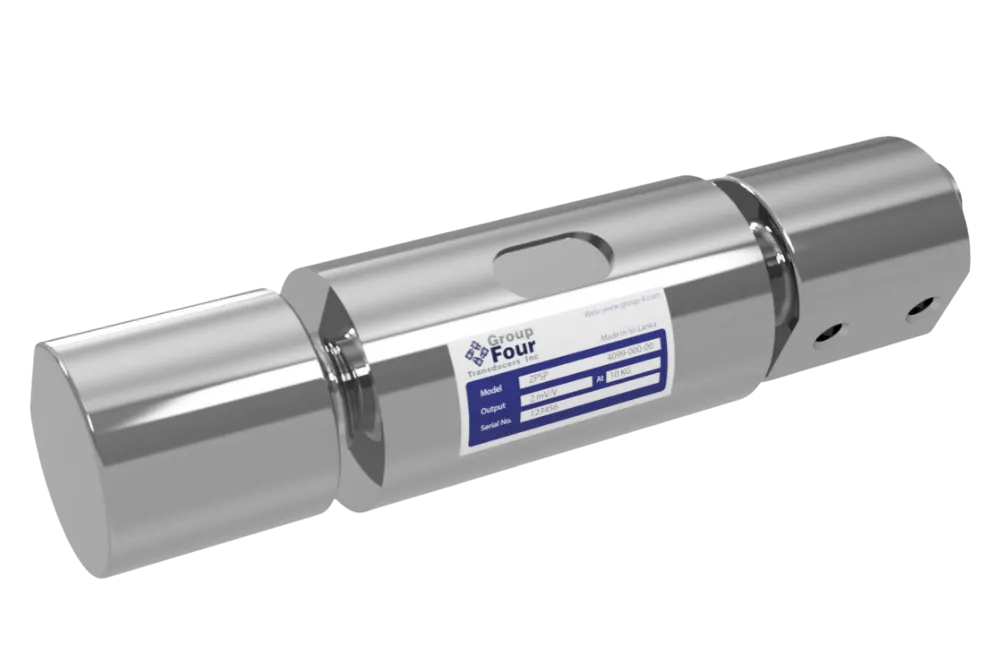

The ZPSP is a low capacity stainless steel single point load cell with IP69 protection. Highly versatile load cell specially designed for hygienic weighing. Hermetically sealed and easy to clean design ideal for use in wash down conditions. Applications include bench scales, conveyor scales, filling and packaging machines in the food industry.
View or download the datasheet below for full technical specifications and wiring diagrams.
Key Features
- Capacity 10kg, 20kg
- Stainless steel construction
- Hermetically sealed
- Special design for dirt repelling & hygienic weighing
- Environmental protection IP69
Ideal Applications
- Bench scale
- Retail scale
- Check weighers
- Filling & packaging machines
- Food industry
- Conveyor scales

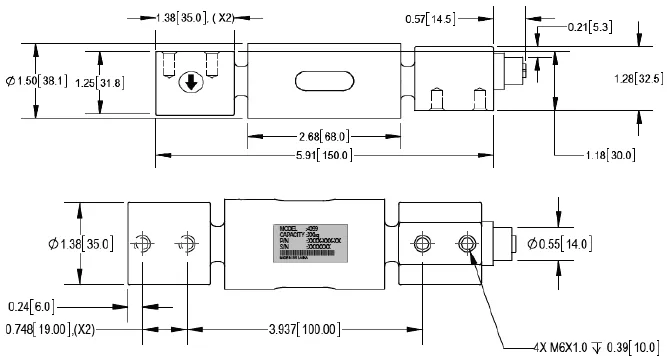

Outline Dimensions
Wiring and Pinout
Specifications
| Model | ZPSP | ||
|---|---|---|---|
| Accuracy Class | C3 | ||
| Capacities | kg | 10, 20 | |
| Full scale output | mV/V | 2.0 ±0.2 | |
| Zero Balance | %FS | ≤±5 | |
| Non-Linearity | %FS | ≤±0.02 | |
| Hysteresis | %FS | ≤±0.02 | |
| Creep @ 30min | %FS | ≤±0.03 | |
| OCLS | |||
| Max platform size | in | 400 x 400 | |
| Max off-center distance | in | 141 | |
| OCLS Error @ 1/3 of RL | %FS/in | ≤0.024 | |
| Temperature range | |||
| Compensated | °C | -10 ~ +40 | |
| Operating | °C | -20 ~ +65 | |
| Temperature Effect | |||
| Output | %FS/10°C | ≤±0.01 | |
| Zero | %FS/10°C | ≤±0.01 | |
| Terminal resistance | |||
| Input resistance | Ω | 386±30 | |
| Output resistance | Ω | 350±5 | |
| Excitation voltage | VDC | 5 … 15 | |
| Insulation resistance @ 50V DC | MΩ | ≥5000 | |
| Safe Overload Limit | %FS | 150 | |
| Ultimate load | %FS | 200 | |
| Cable length | see note 02 | ||
| Seal type | IP69 | ||
| Element material | Stainless Steel | ||
Part Numbers
| Capacities (kg) | Part Number |
|---|---|
| 10 | 4099-000-00 |
| 20 | 4099-001-00 |
