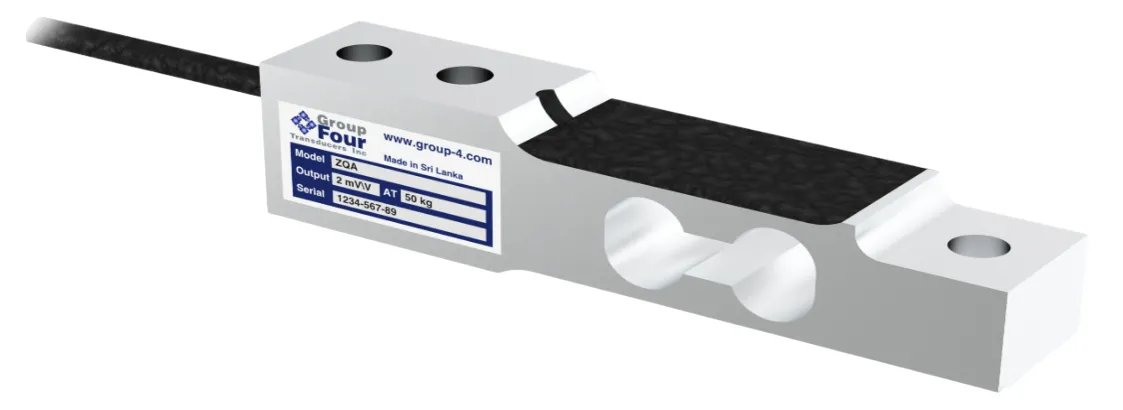

ZQA (1054) Anodized Aluminum Single Ended Beam
Capacity: 10 kg to 100 kg
The ZQA anodized aluminum single ended beam load cell is ideal for use in floor scales, bench scales, tank weighing, hopper weighing and conveyor scales.
Features
- Anodized aluminum construction
- Environmental protection IP67
- Capacities from 10kg to 100kg
- Industry standard mounting dimensions
- OIML & NTEP Certified
applications
- Floor scales
- Bench scales
- Tank weighing
- Hopper weighing
- Conveyor scales
technical details of ZQA (1054) Single Ended Beam
Outline Dimensions
Wiring

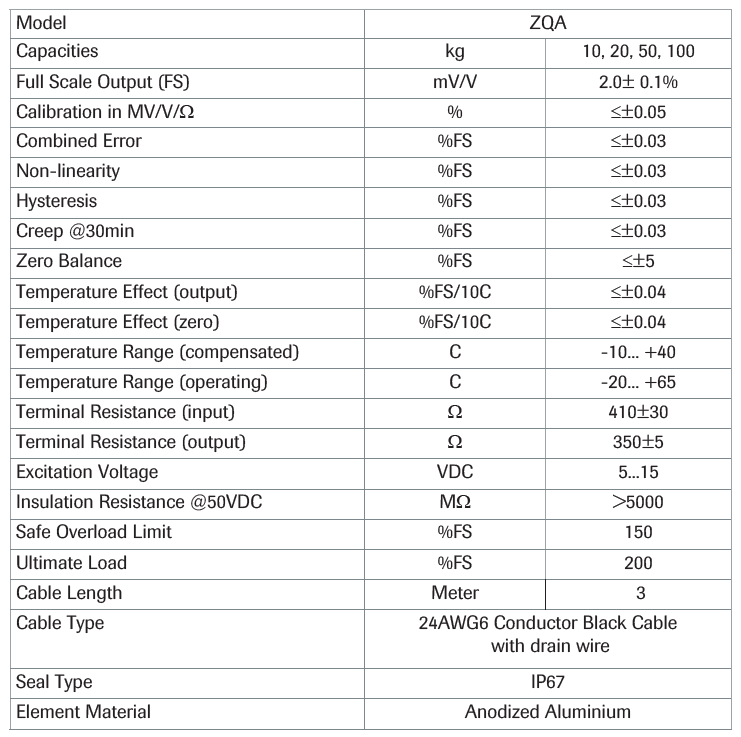

Specification

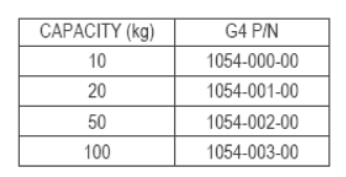

Part Numbers
