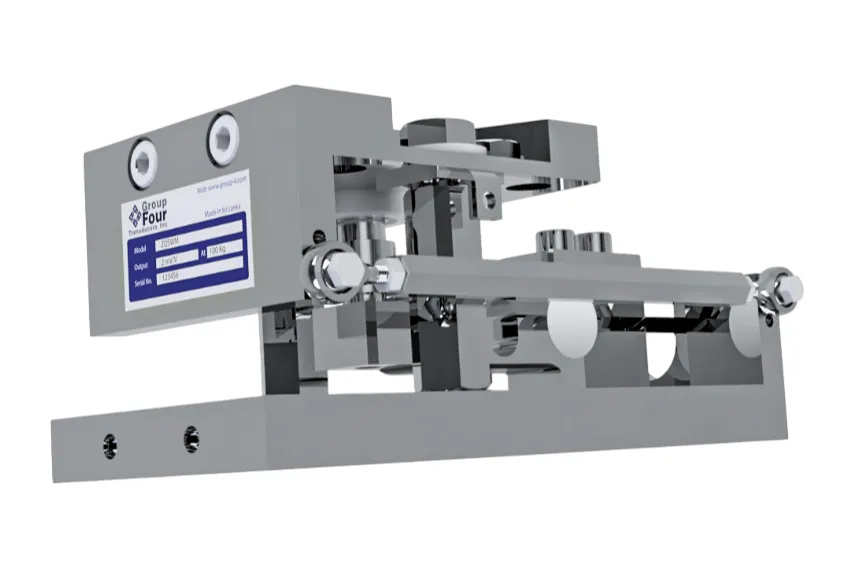

ZQSWM Stainless Steel Tank Weighing Module
Capacity: 10kg to 200kg
Made from stainless steel, this weigh module using a rocker pin design with uplift protection as well as the optional lateral/anti-sway protection, makes this an ideal solution for weighing tanks, bins and hoppers.
Features
- Capacity range: 10kg to 200kg
- Stainless steel construction
- Environmental Protection IP67
- Designed for easy installation
- Low profile design
- Optional anti-sway design feature
applications
- Hopper
- Mixer
- Platform Scales
technical details of ZQSWM Tank Weighing Module

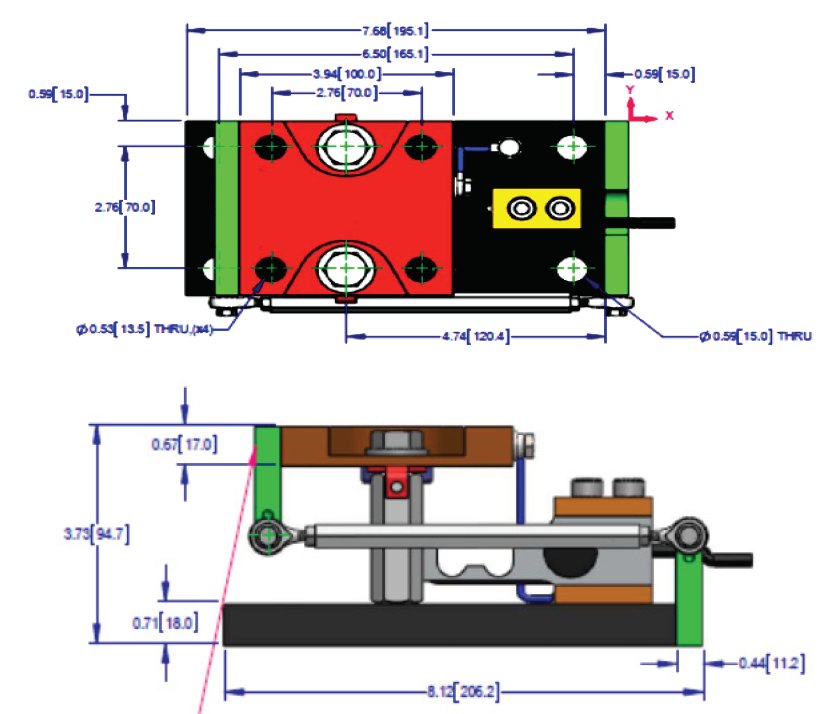

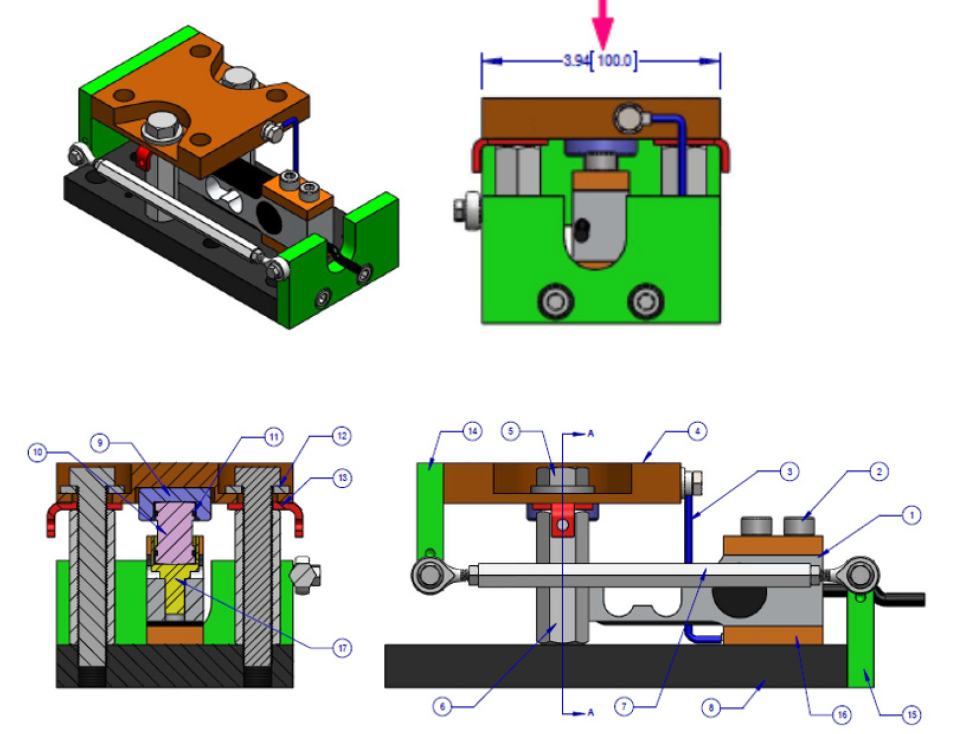

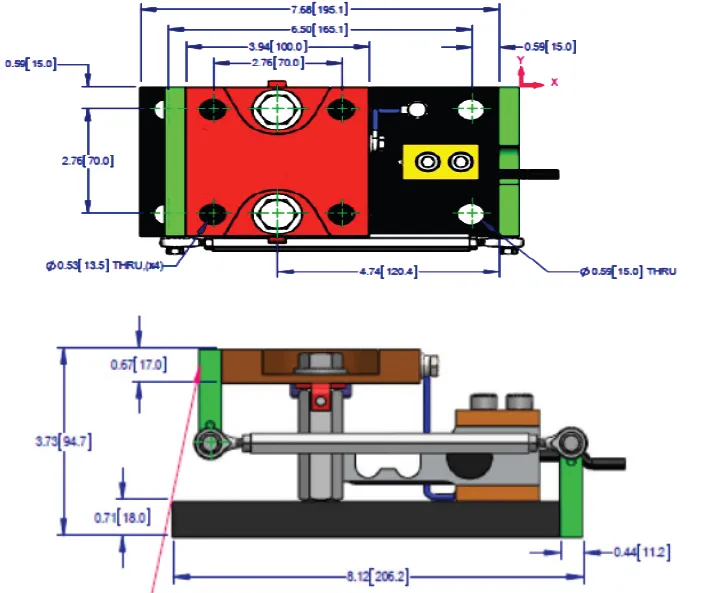

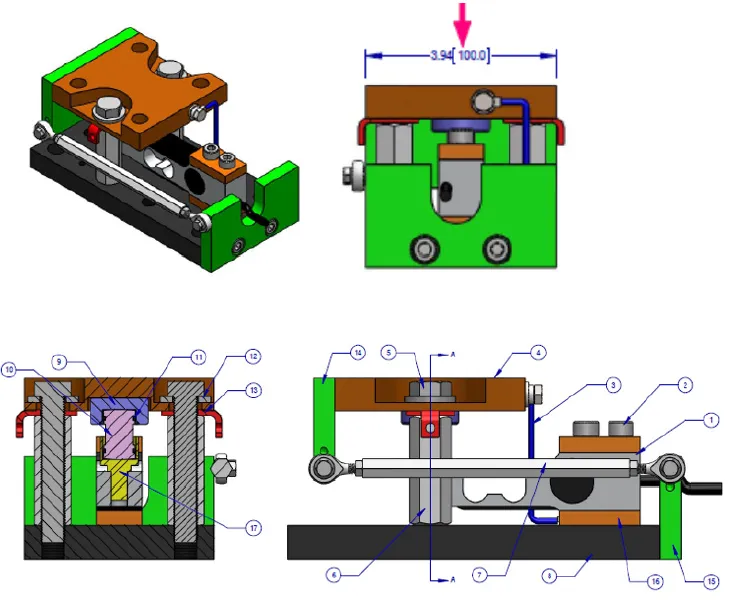

Outline Dimensions

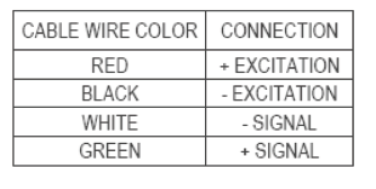

Wiring

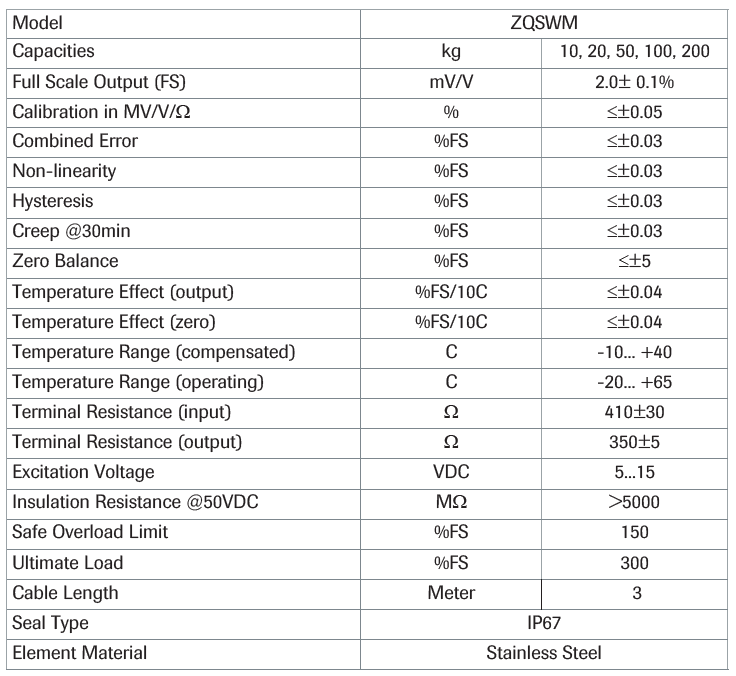

Specification

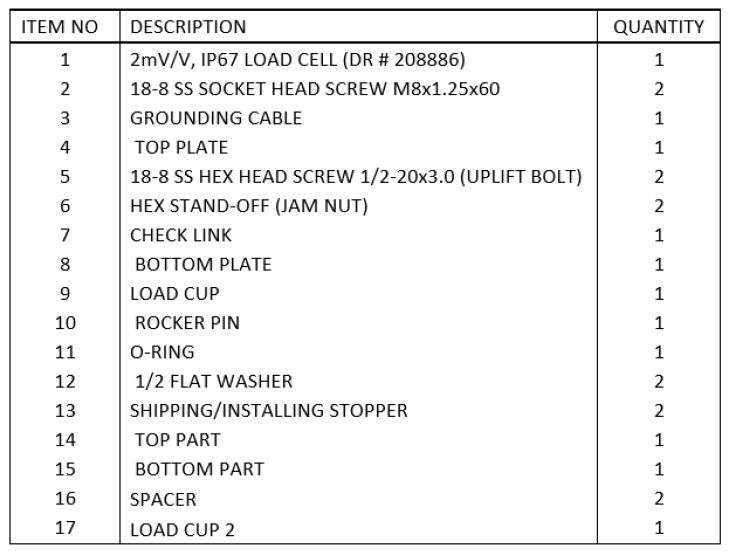

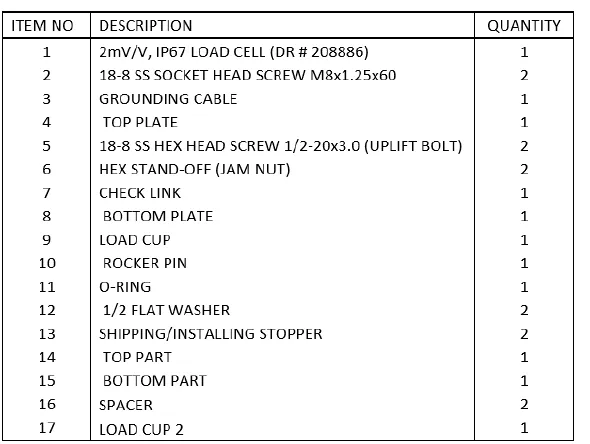

Part Numbers
