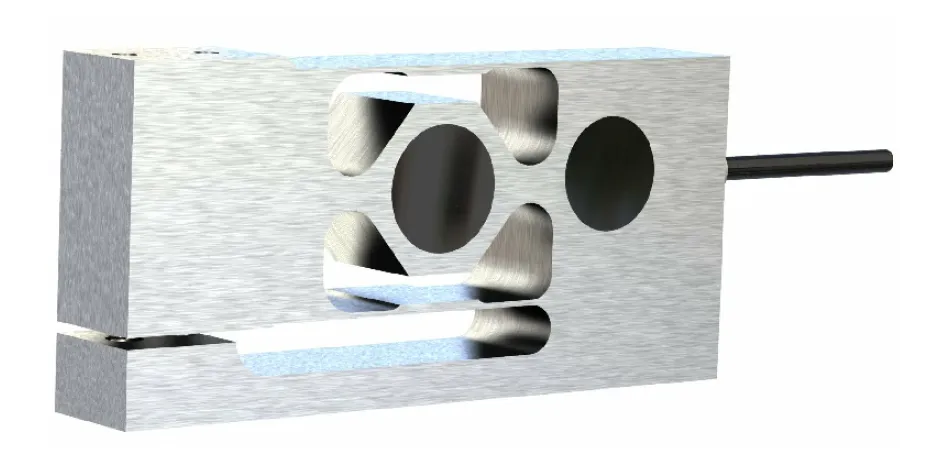

SP14 (4027) Anodized Aluminum Single Point Load Cell – IP67 Rated

When it comes to industrial weighing systems, accuracy and speed are non-negotiable. The SP14 (4027) series is a high-performance anodized aluminum single point load cell explicitly engineered for light to medium-duty applications where rapid measurements are critical. Offering a highly versatile weighing capacity from 1 kg up to 90 kg, this component is an ideal solution for businesses looking to upgrade their automated systems.

Built for Speed and Unmatched Precision

One of the standout features of the 4027 load cell is its incredibly fast response time. Thanks to its high natural frequency, this sensor seamlessly integrates into high-speed production lines. Whether you are operating precision filling machines, automated packaging equipment, or dynamic check weighing applications, the SP14 delivers consistent and immediate data, minimizing processing delays and boosting your overall throughput.

Rugged Durability for Demanding Environments

Industrial work spaces aren’t always perfectly dry or safe from mechanical stress. That’s why this aluminum load cell is designed with an IP67 moisture rating, making it highly resilient in semi-wet environments and wash-down areas. You won’t have to worry about occasional moisture compromising your weight measurement accuracy.

Furthermore, the SP14 provides peace of mind through its robust bi-directional, integral overload stop. This built-in mechanical feature offers positive overload protection in both tension and compression. By effectively guarding the internal strain gauges against sudden drops, heavy impacts, or general operator abuse, it significantly extends the lifespan of your weighing equipment and reduces costly downtime. View or download the datasheet below for full technical specifications and wiring diagrams.

Core Features

• Versatile Weight Capacities: Available in configurations ranging from 1kg to 90kg to suit diverse industrial needs
• Durable Construction: Manufactured from high-grade anodized aluminum for optimal strength-to-weight ratio
• Moisture Resistance: Environmental protection IP67 ensures reliable operation in damp or semi-wet conditions
• Rapid Data Processing: Features a high natural frequency that guarantees a fast response time for real-time monitoring
• Built-in Damage Prevention: Equipped with an integral tension and compression overload stop to prevent accidental mechanical failures

Primary Industry Applications

This IP67 single point load cell is the component of choice for OEMs and engineers designing:

• High-speed precision filling stations
• Automated packaging machinery
• Industrial check weighing machines

Customization & Output Options

To ensure seamless integration with your existing digital indicators and controllers, we offer several customization options:

• mV/V/Ohm calibration matching for multi-cell platforms
• Standard Voltage output configurations
• Advanced Digital serial output for modern IoT and smart-factory integrations

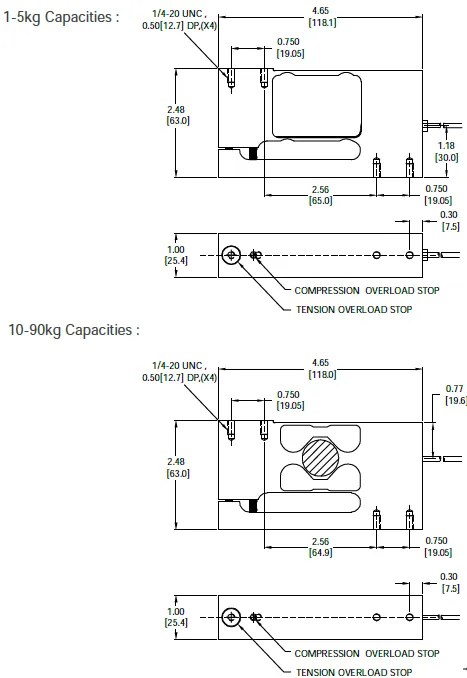

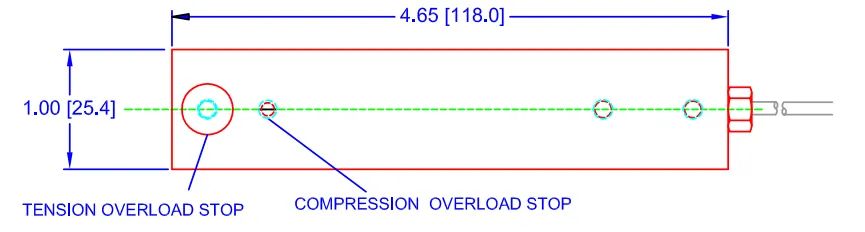

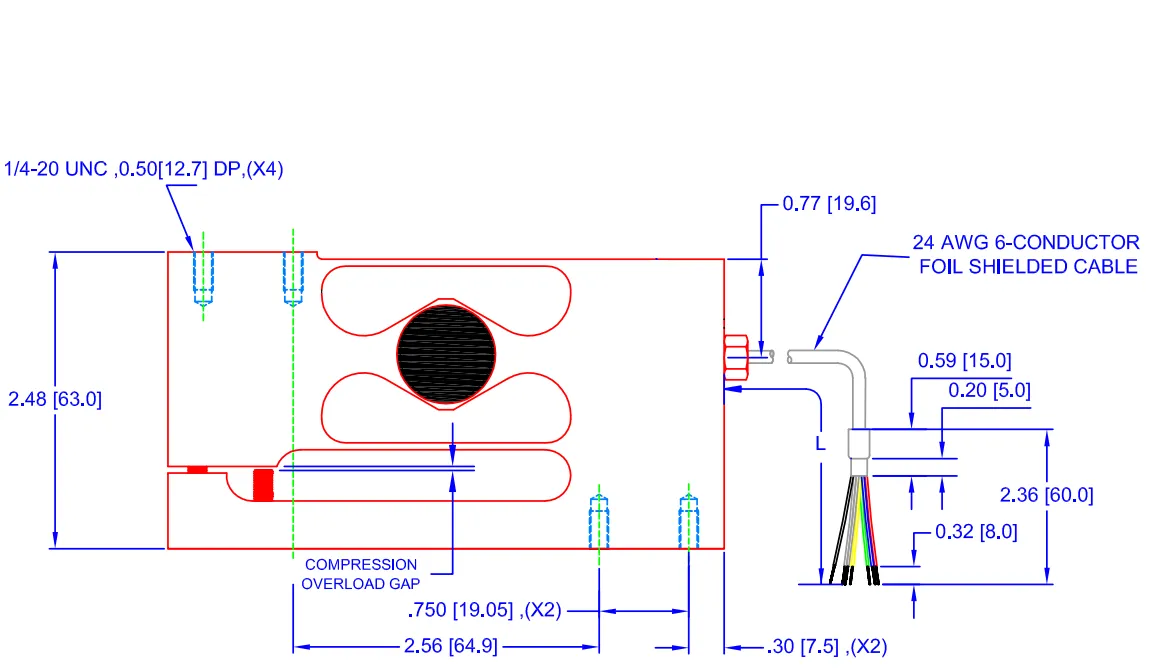

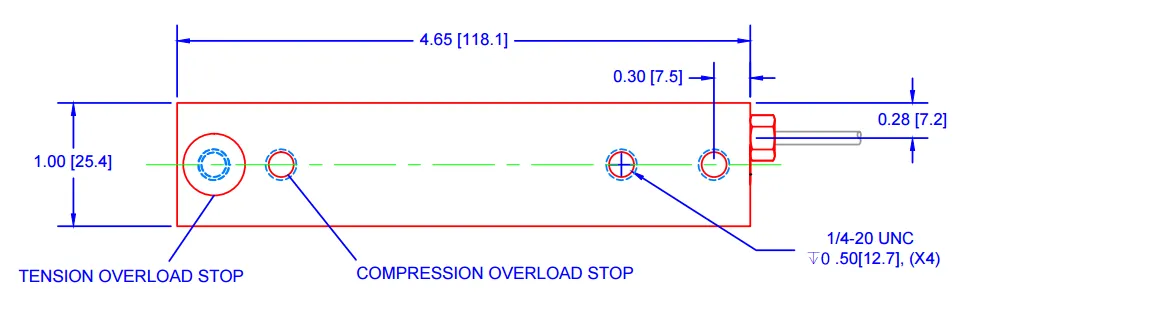

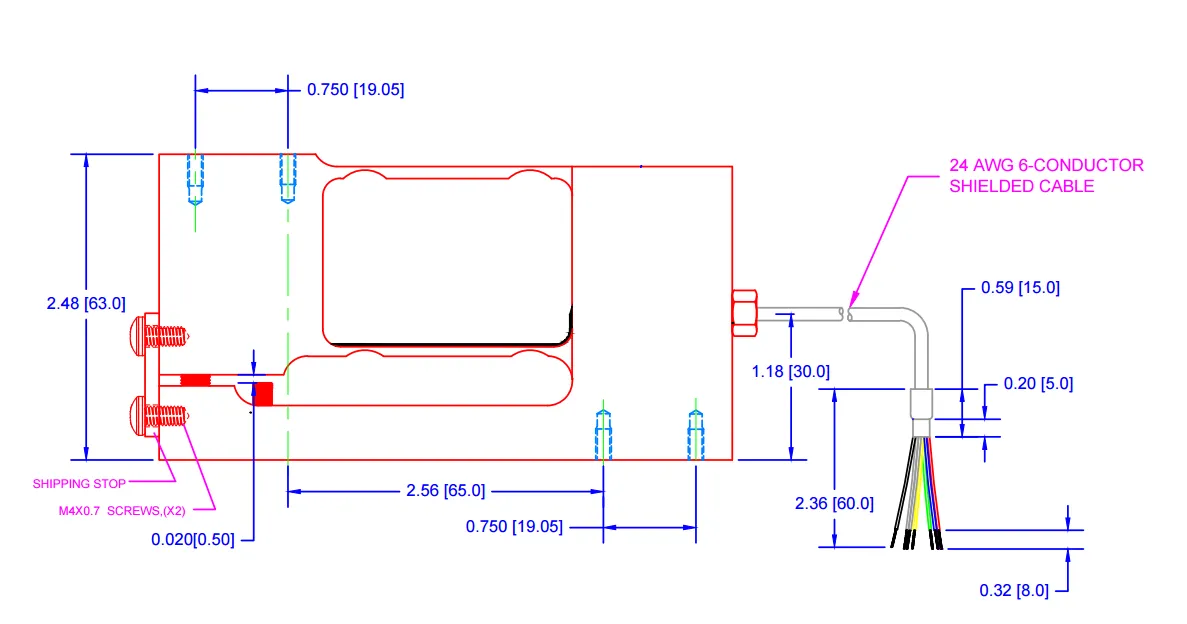

SP14 Load Cell Outline Dimensions & Technical Drawings

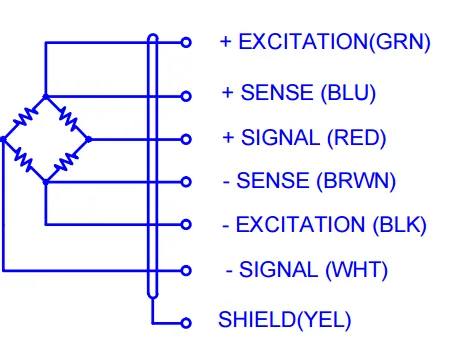

Wiring Color Code

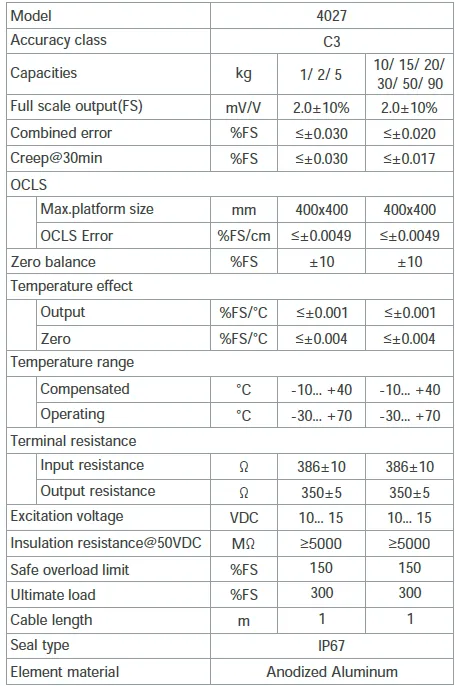

Comprehensive Technical Specifications
